Clock Display Circuit (TO 12/2010): Wiring Diagram

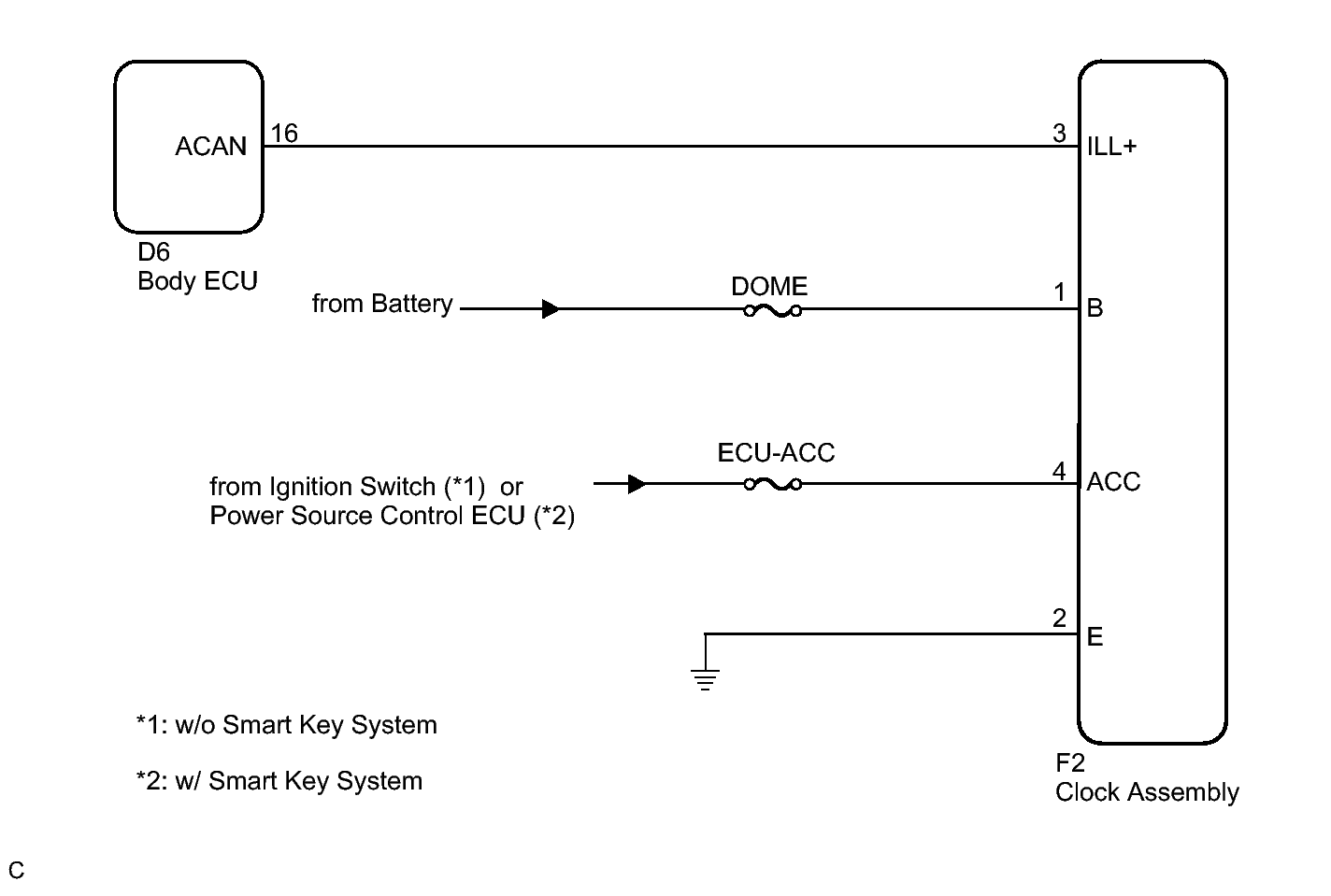

Fig 1: Clock Display Circuit - Wiring Diagram

GTY294586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
