Toyota
>>
2011
>>
4Runner Trail
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Shift Lock (2TR-FE)
Shift Lock (2TR-FE)

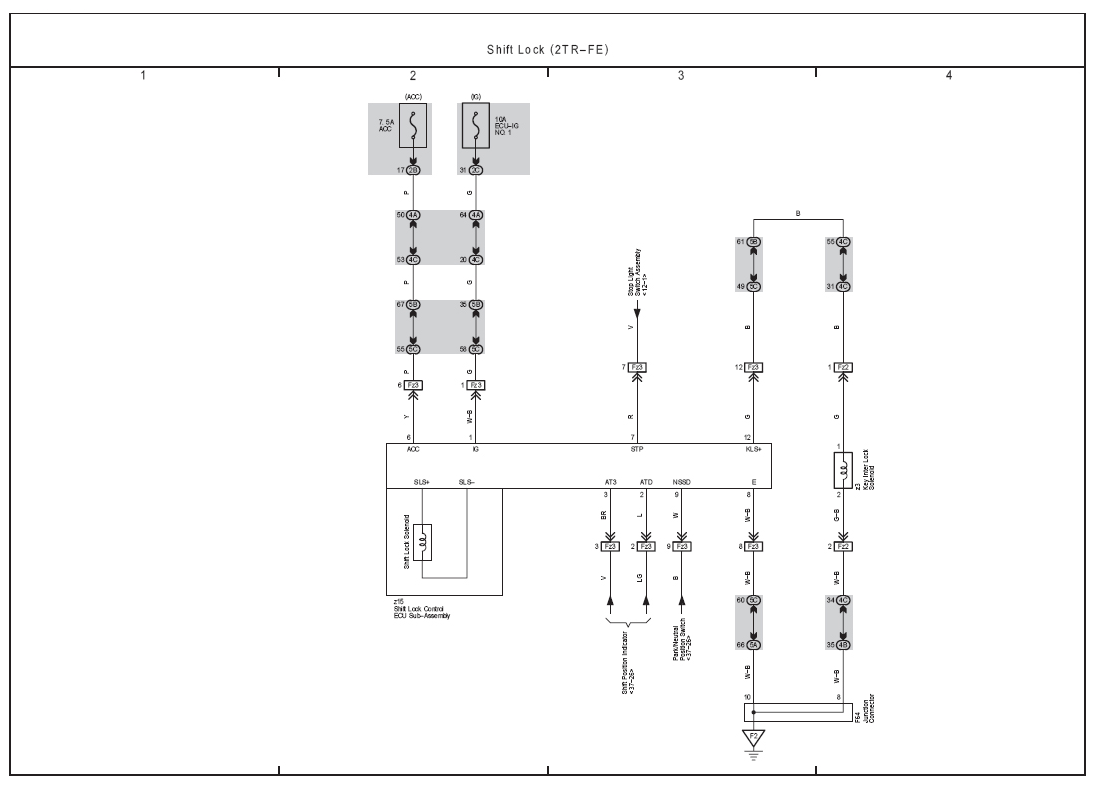

Fig 1: Shift Lock (2TR-FE) Electrical Wiring Diagram
