Seat Belt Warning: Engine Immobiliser: Push-Button Start: Steering Lock: Wireless Door Lock Control: SRS:

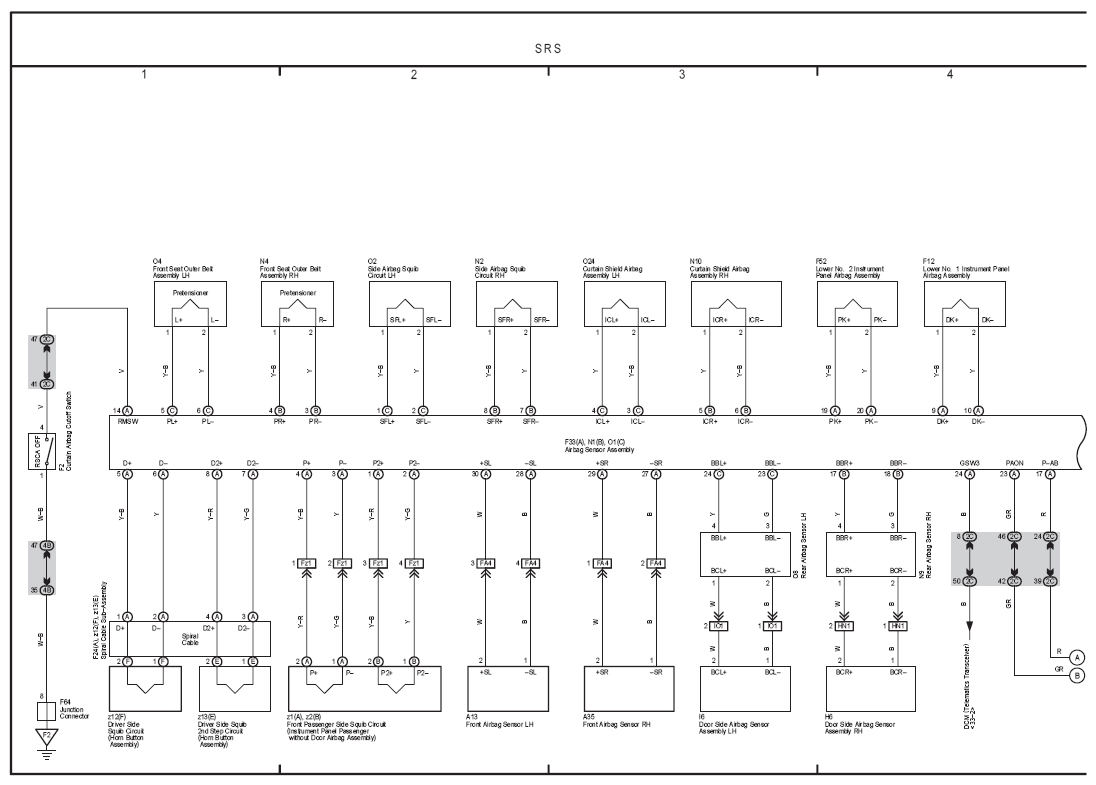

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

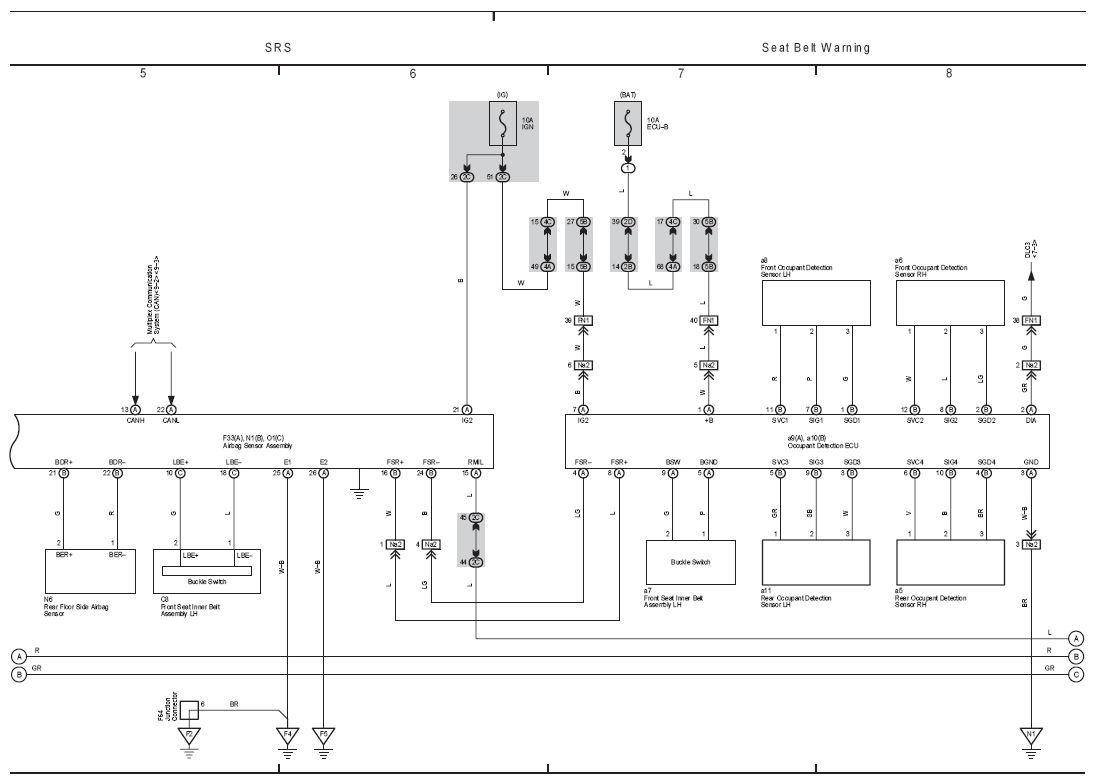

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

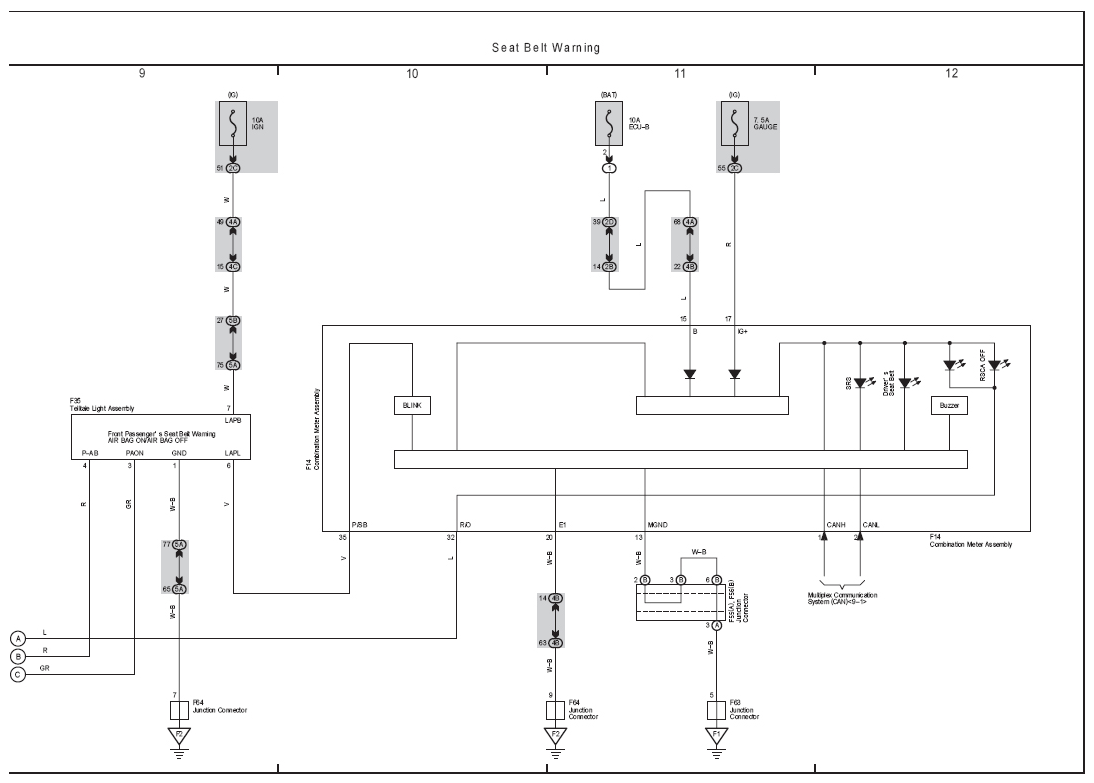

Fig 3: Seat Belt Warning Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
