OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Remote Control Mirror: Shift Lock (1GR-FE)
Remote Control Mirror: Shift Lock (1GR-FE)

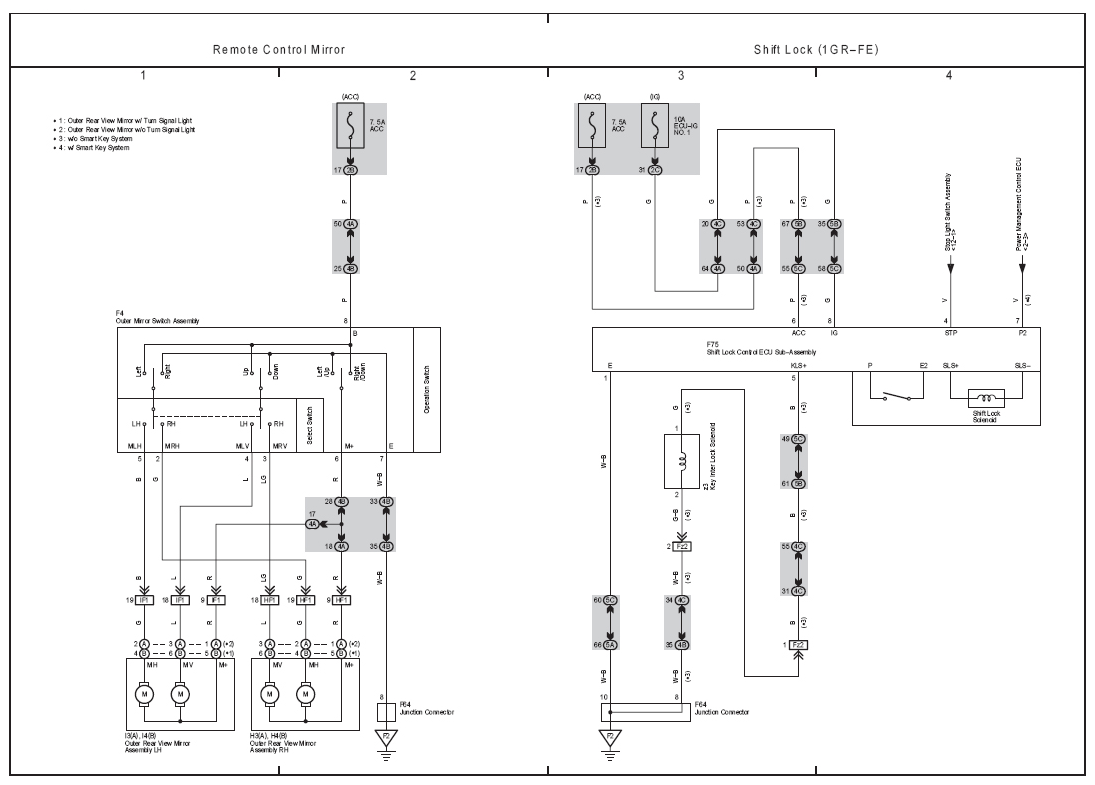

Fig 1: Remote Control Mirror And Shift Lock (1GR-FE) Electrical Wiring Diagram
