OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Seat (Front Passenger's Seat)
Power Seat (Front Passenger's Seat)

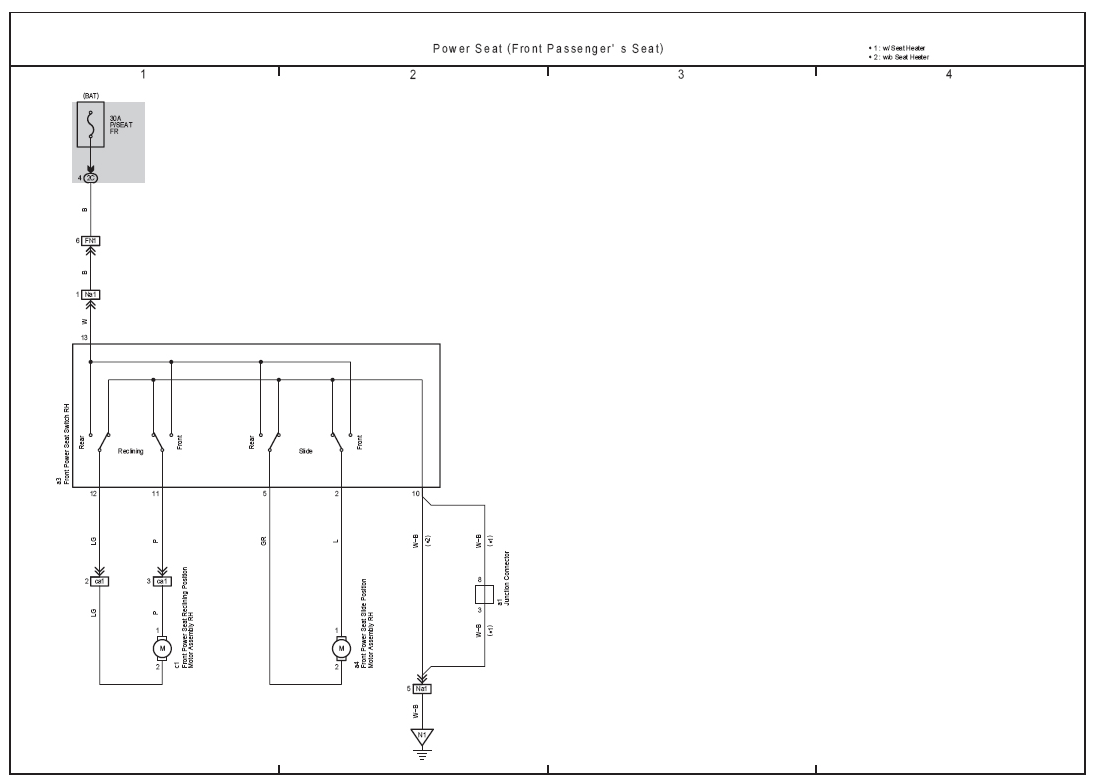

Fig 1: Power Seat (Passenger's Seat) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
