Power Seat (Driver's Seat)

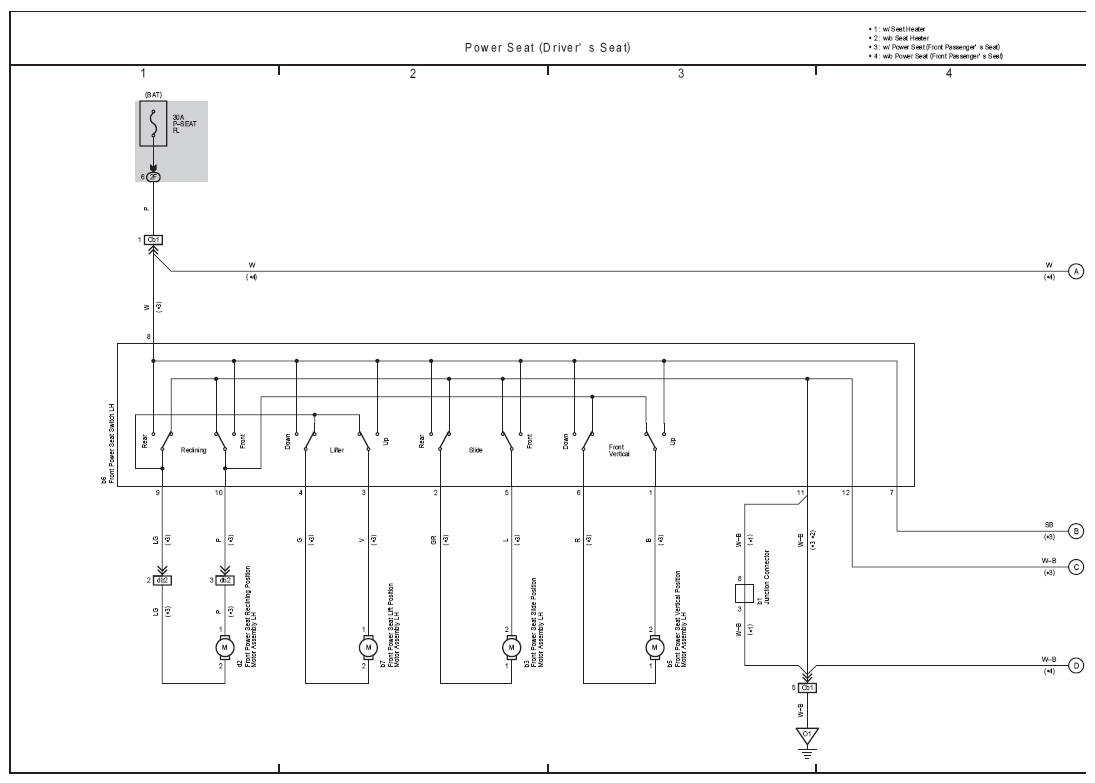

Fig 1: Power Seat (Driver's Seat) Electrical Wiring Diagram (1 Of 2)
G07111764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

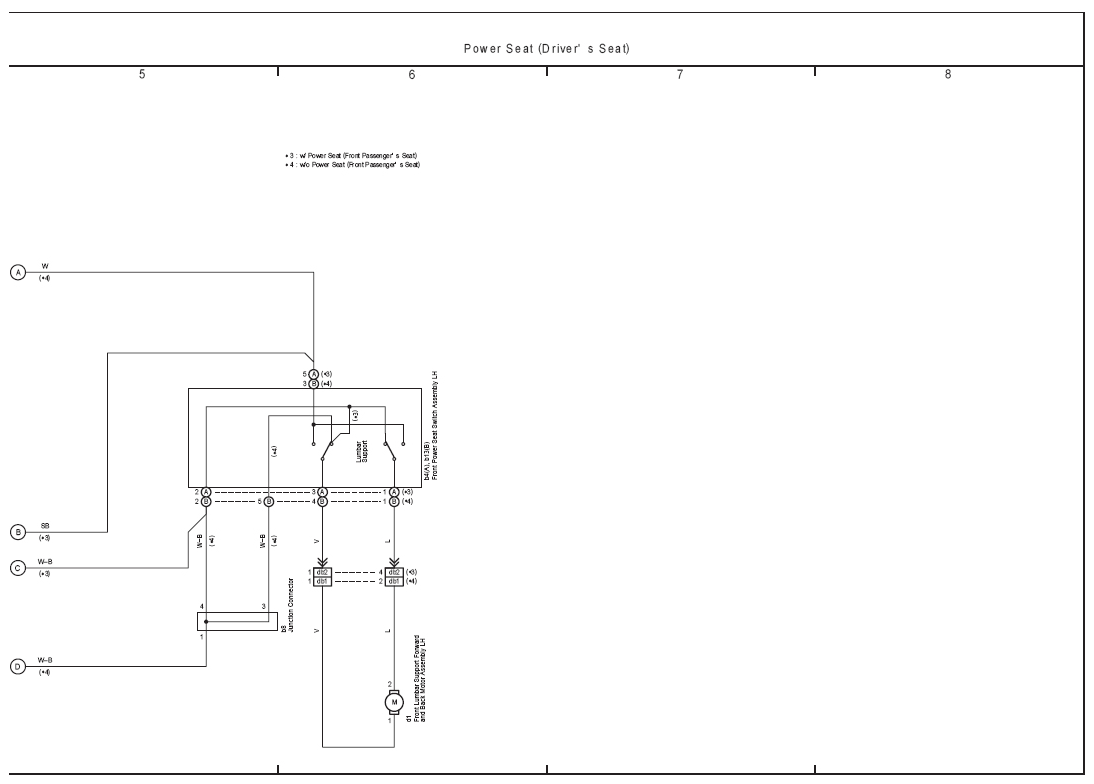

Fig 2: Power Seat (Driver's Seat) Electrical Wiring Diagram (2 Of 2)
G07111765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
