Overall Electrical Wiring Diagram: Notes

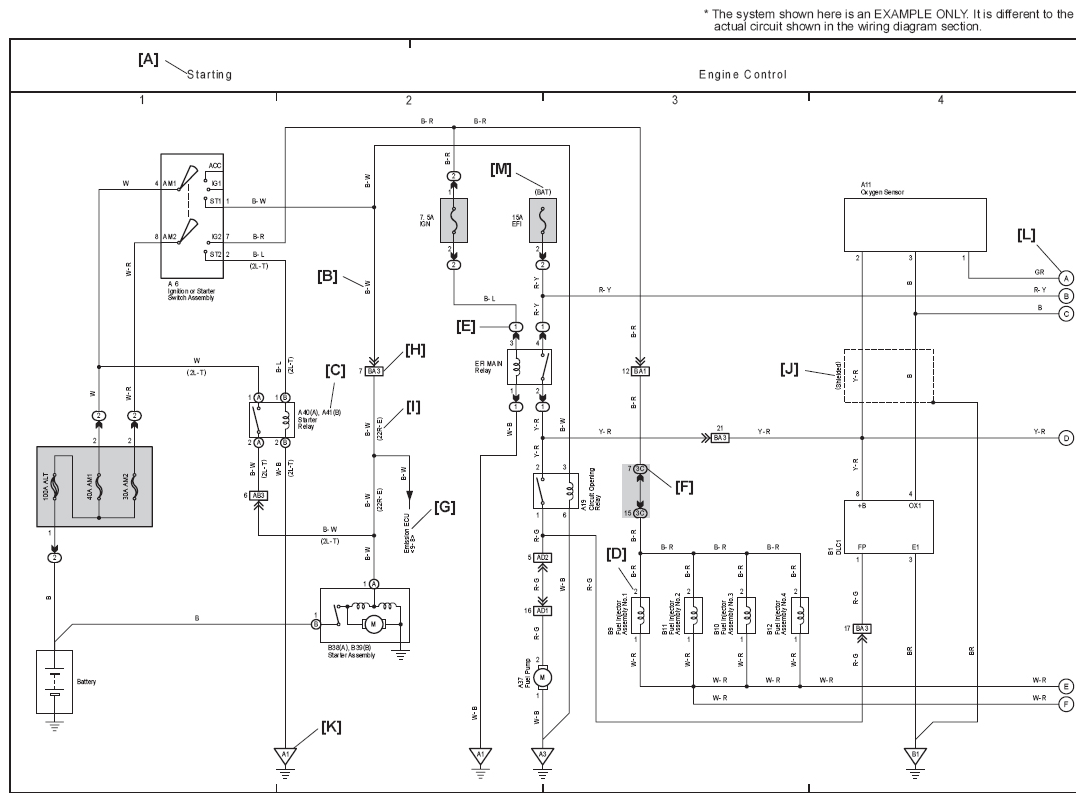

Fig 1: Electrical Wiring Diagram Example
G07111699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

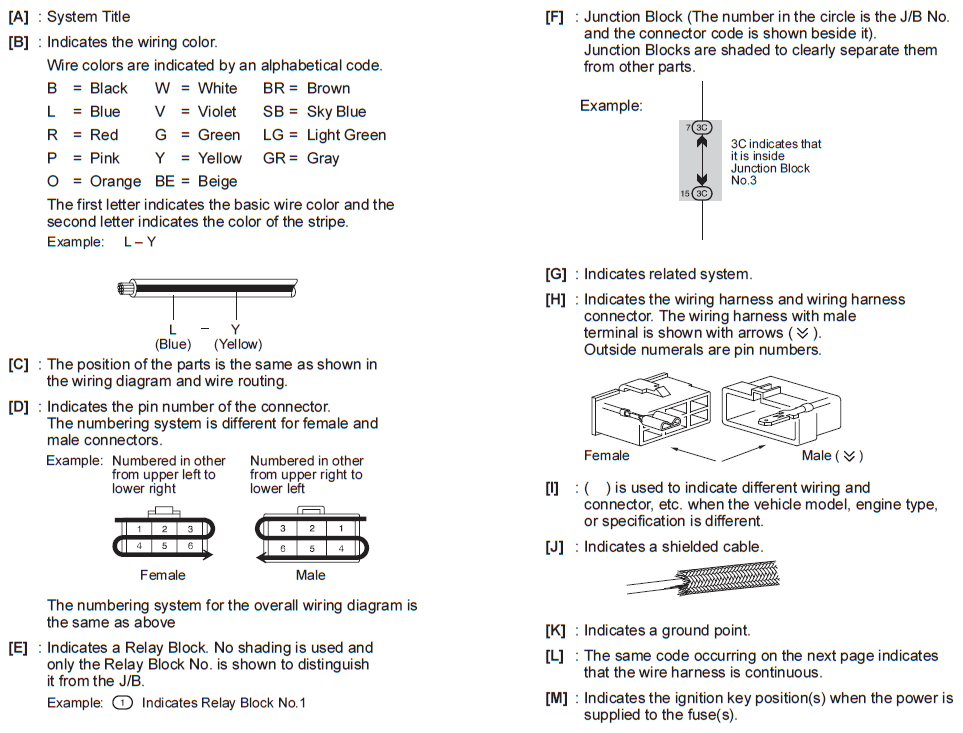

Fig 2: Electrical Wiring Diagram Example (Legends)
G07111700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
