OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Multiplex Communication System (CAN)
Multiplex Communication System (CAN)

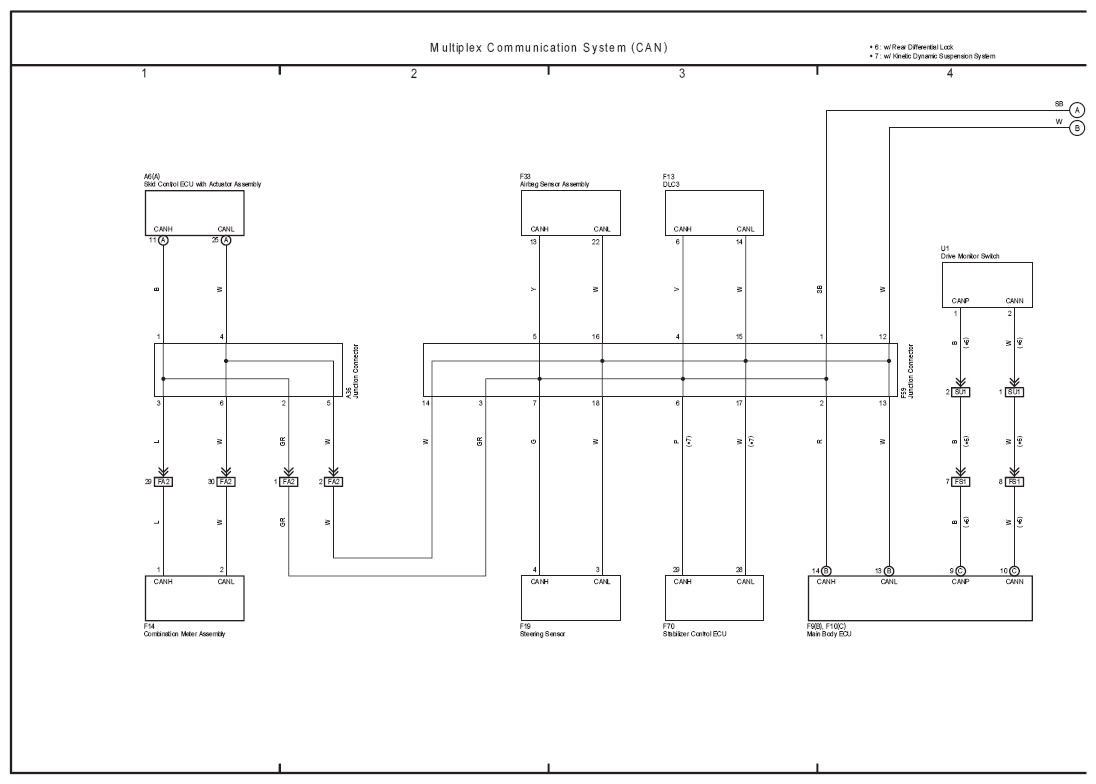

Fig 1: Multiplex Communication System (CAN) Electrical Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

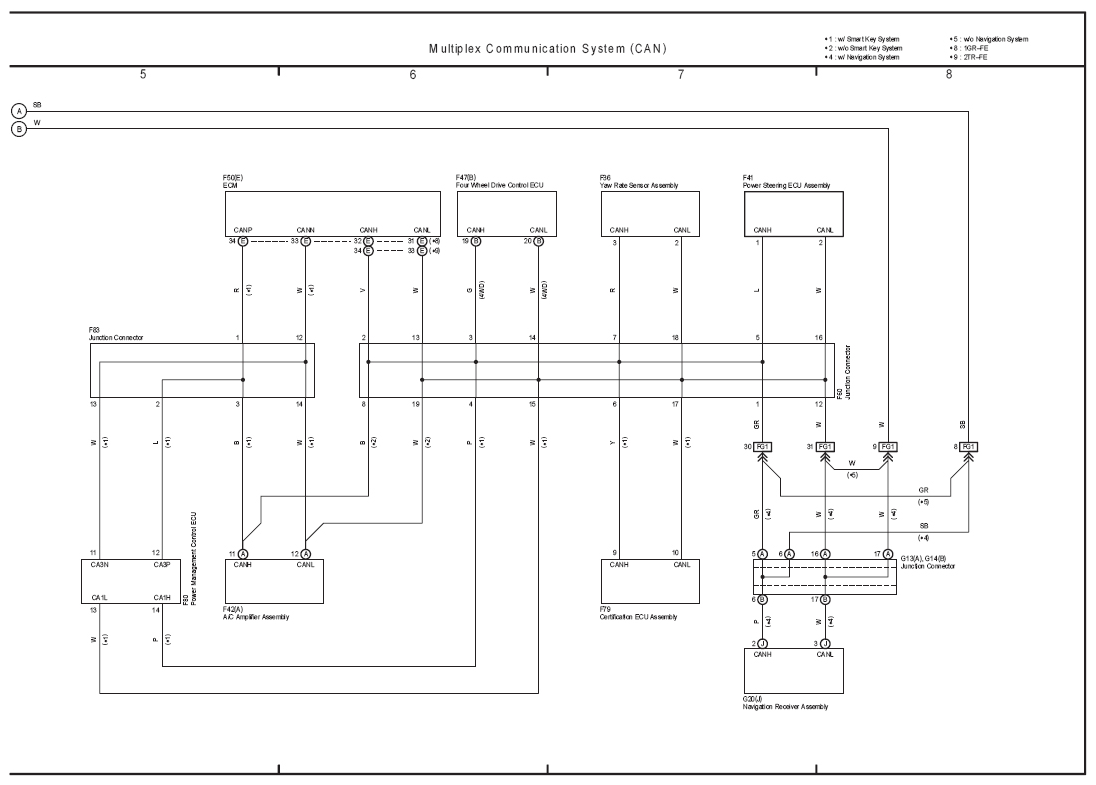

Fig 2: Multiplex Communication System (CAN) Electrical Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
