OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Ignition (1GR-FE)
Ignition (1GR-FE)

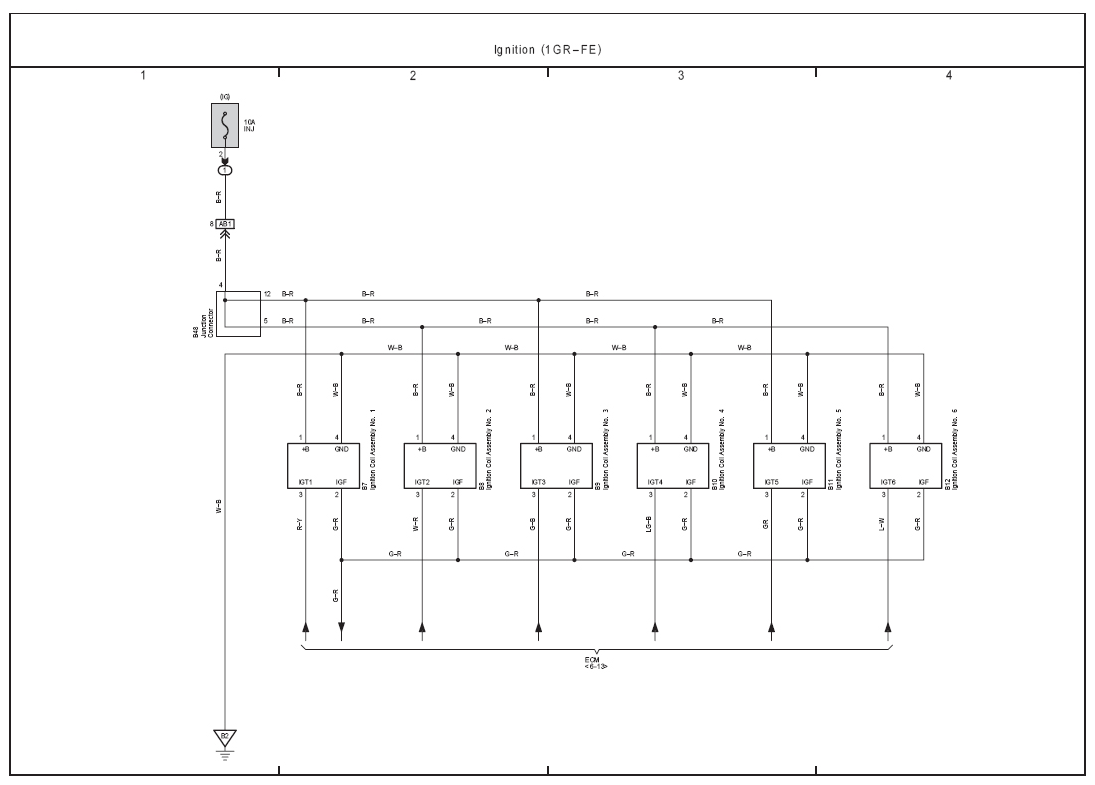

Fig 1: Ignition (1GR-FE) Electrical Wiring Diagram
