Overall Electrical Wiring Diagram
>>
Front Window Deicer: Mirror Heater: Rear Window Defogger
Front Window Deicer: Mirror Heater: Rear Window Defogger

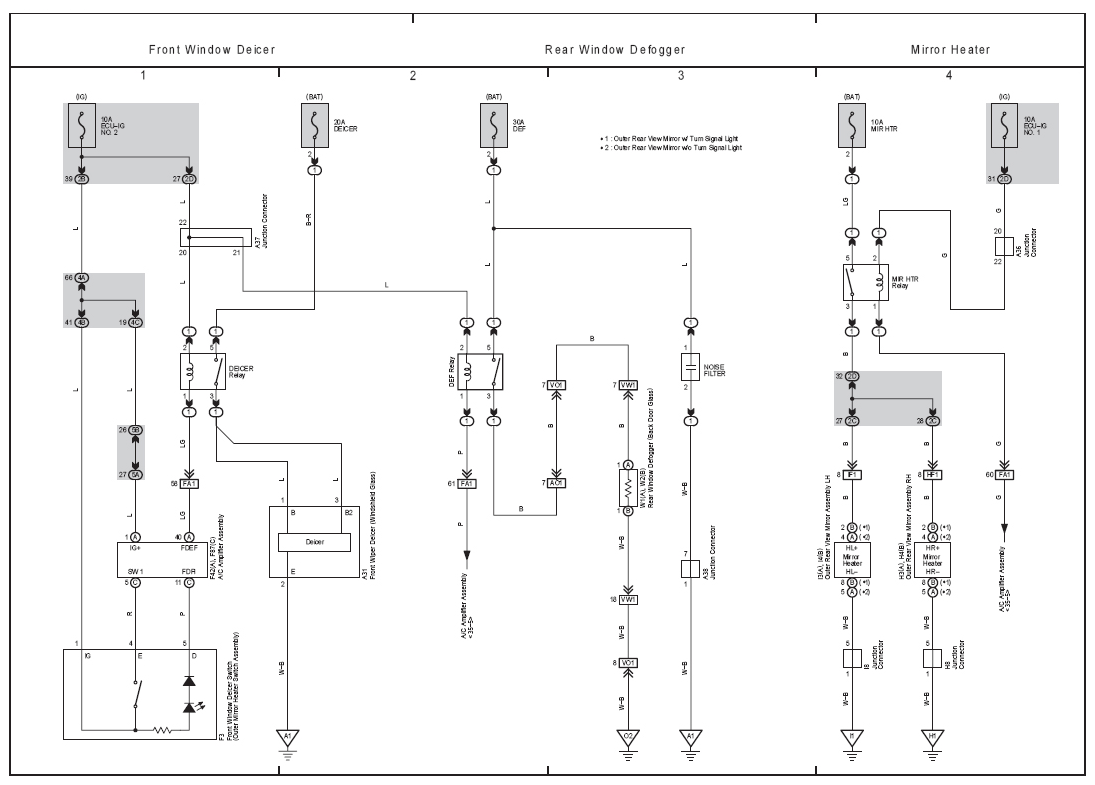

Fig 1: Rear Window Defogger Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
