Engine Immobiliser System (w/o Smart Key System): Tire Pressure Warning System

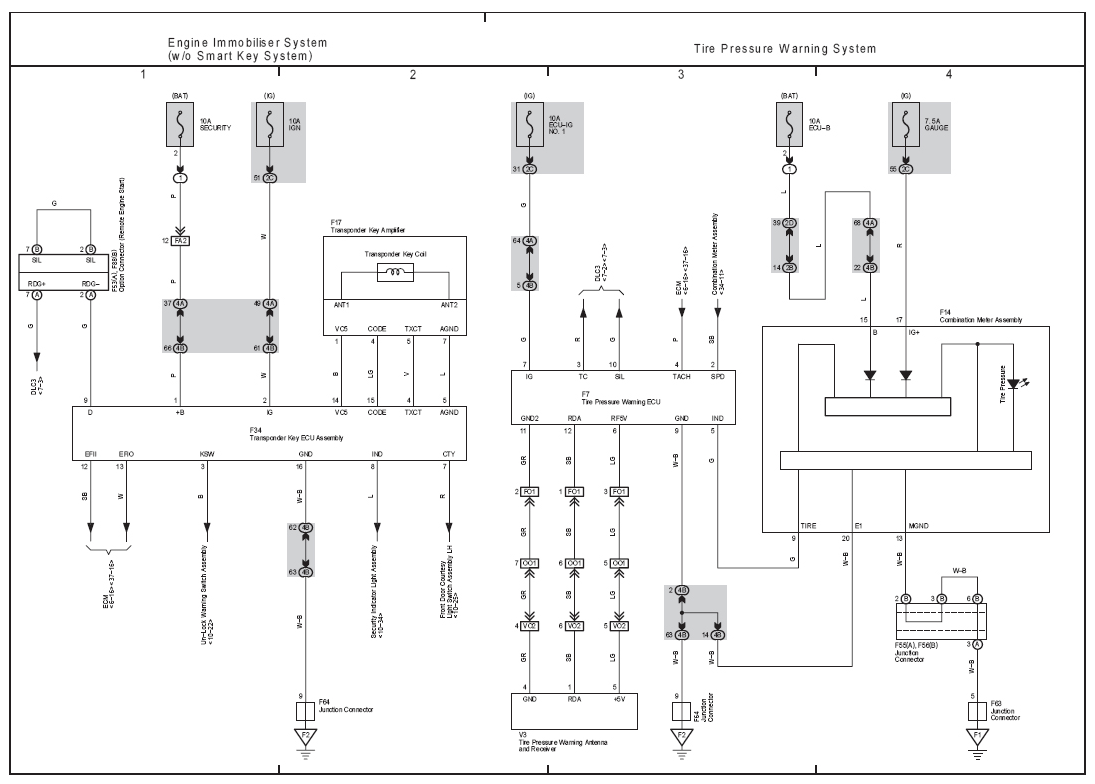

Fig 1: Engine Immobiliser System (w/o Smart Key System) And Tire Pressure Warning System Electrical Wiring Diagram
G07111721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
