Cruise Control (2TR-FE): Electronically Controlled Transmission and A/T Indicator (2TR-FE): Engine Control (2TR-FE)

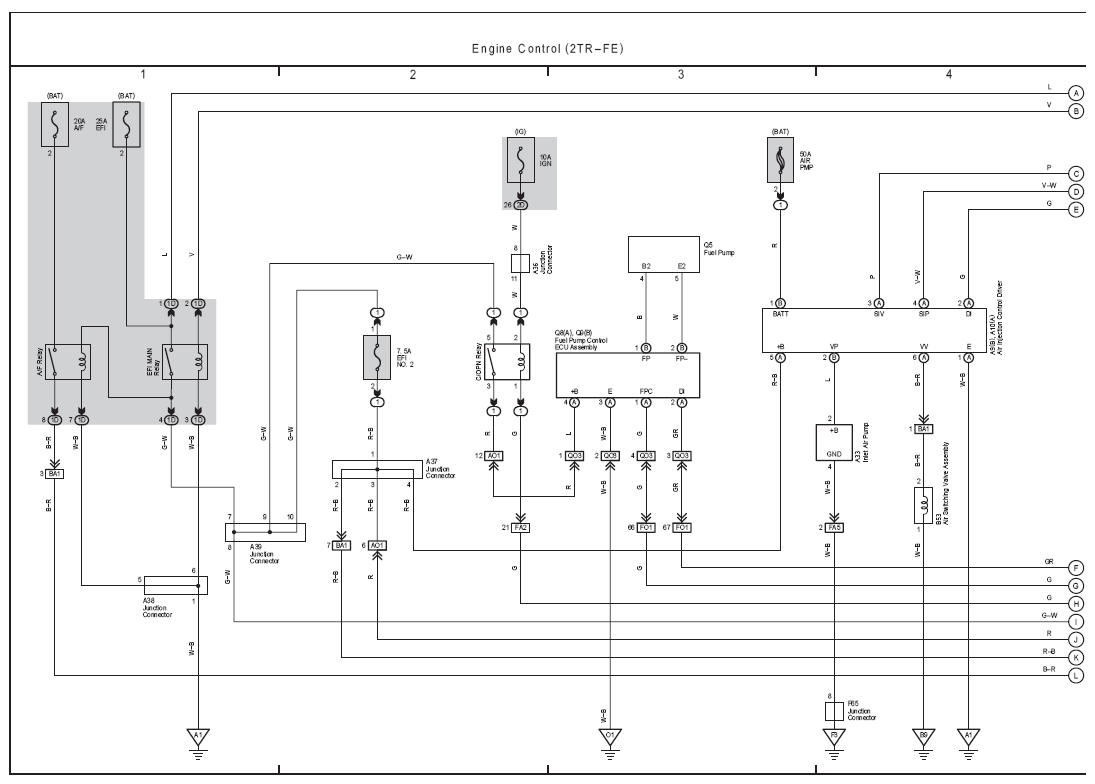

Fig 1: Engine Control (2TR-FE) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

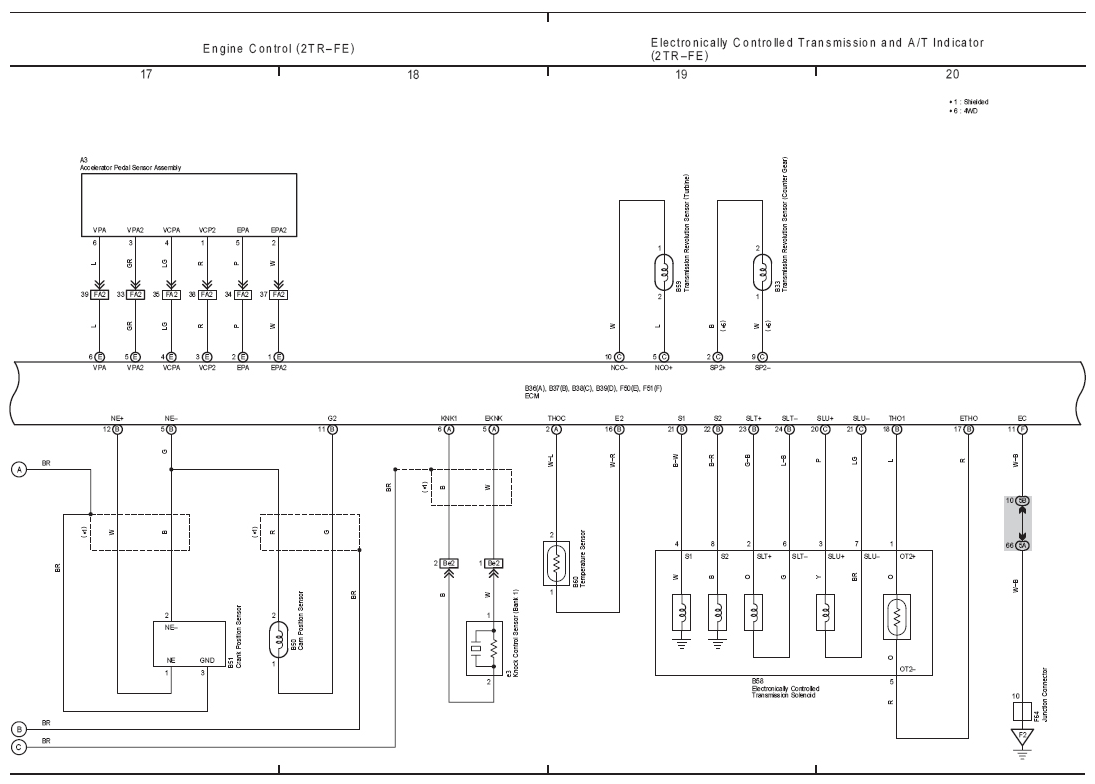

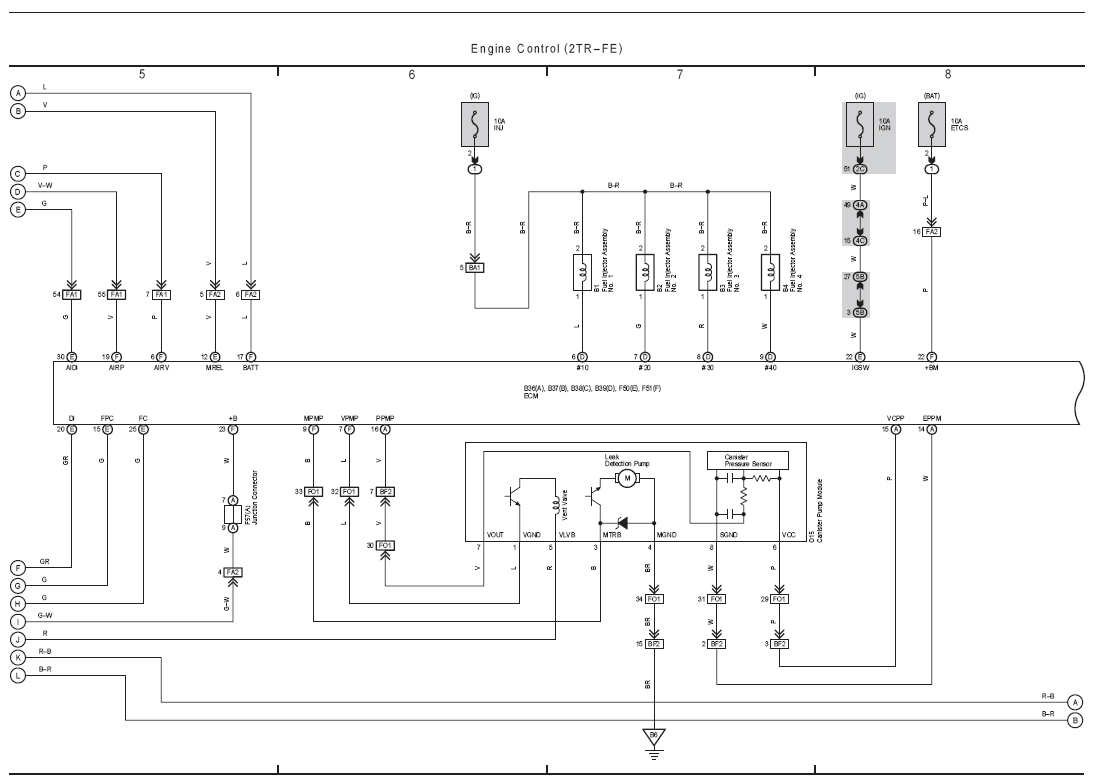

Fig 2: Engine Control (2TR-FE) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control (2TR-FE) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Control (2TR-FE) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

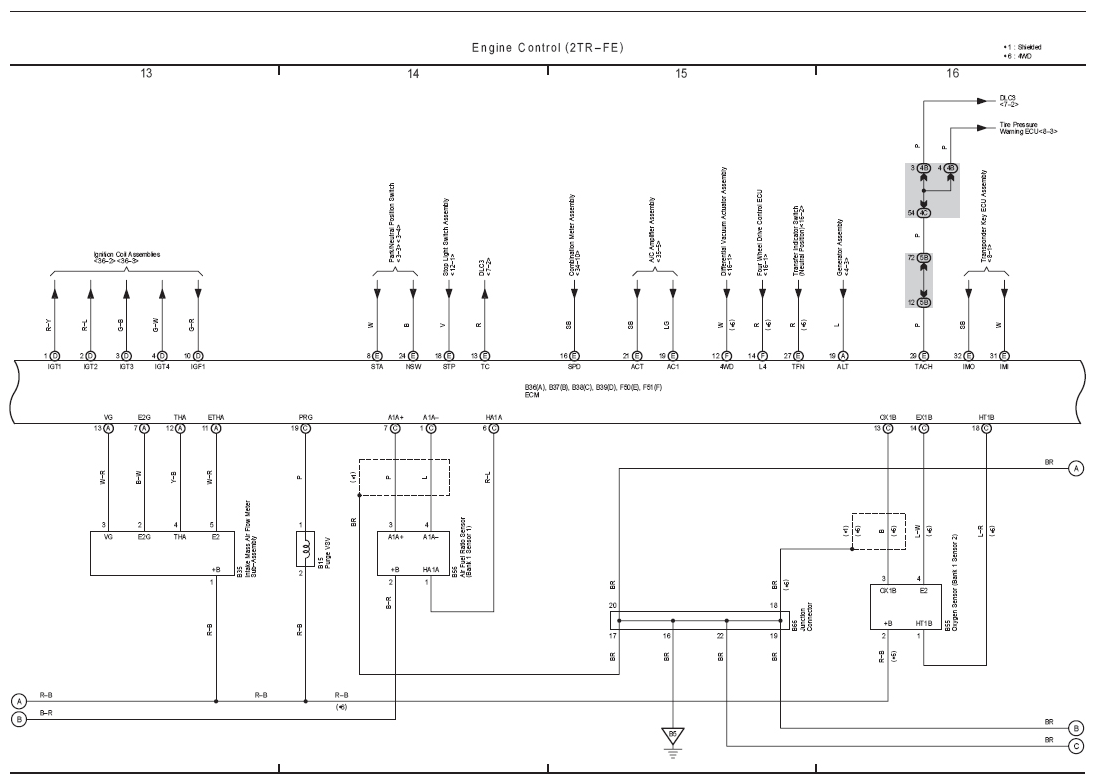

Fig 5: Engine Control (2TR-FE) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

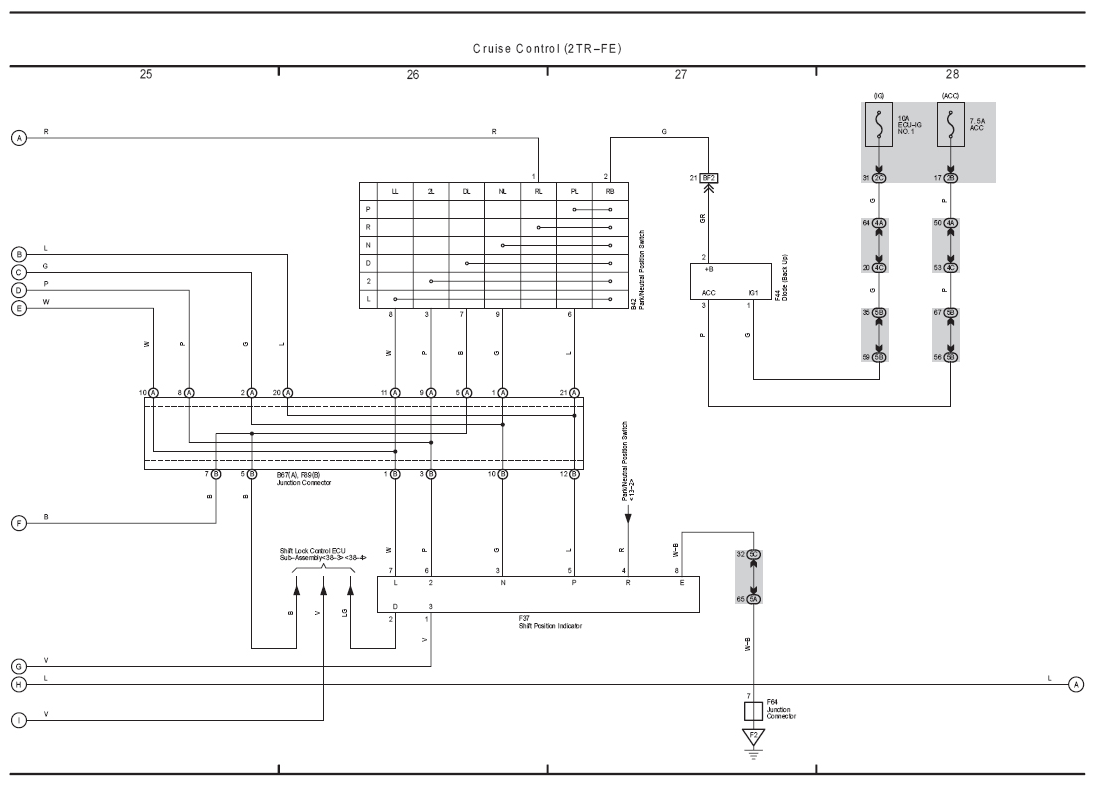

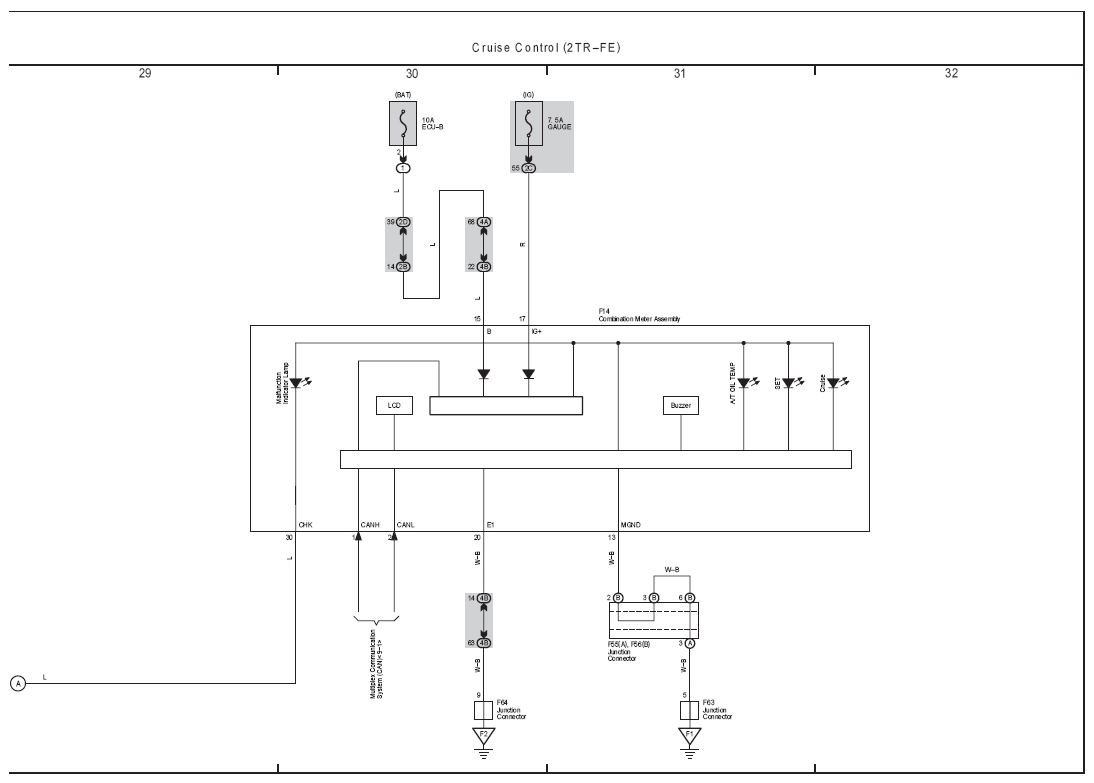

Fig 6: Cruise Control (2TR-FE) Electrical Wiring Diagram (1 Of 3)

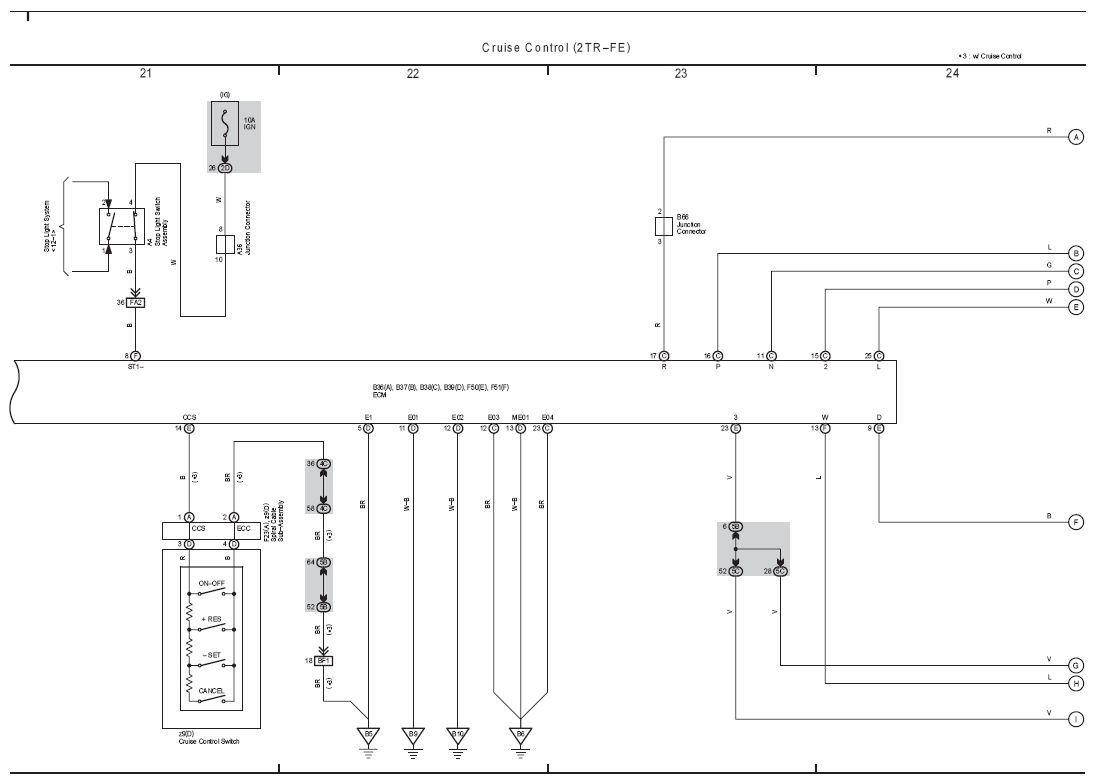

Fig 7: Cruise Control (2TR-FE) Electrical Wiring Diagram (2 Of 3)

Fig 8: Cruise Control (2TR-FE) Electrical Wiring Diagram (3 Of 3)
