Automatic Glare-Resistant EC Mirror: Garage Door Opener: Parking Assist (Rear View Monitor w/o Navigation System)

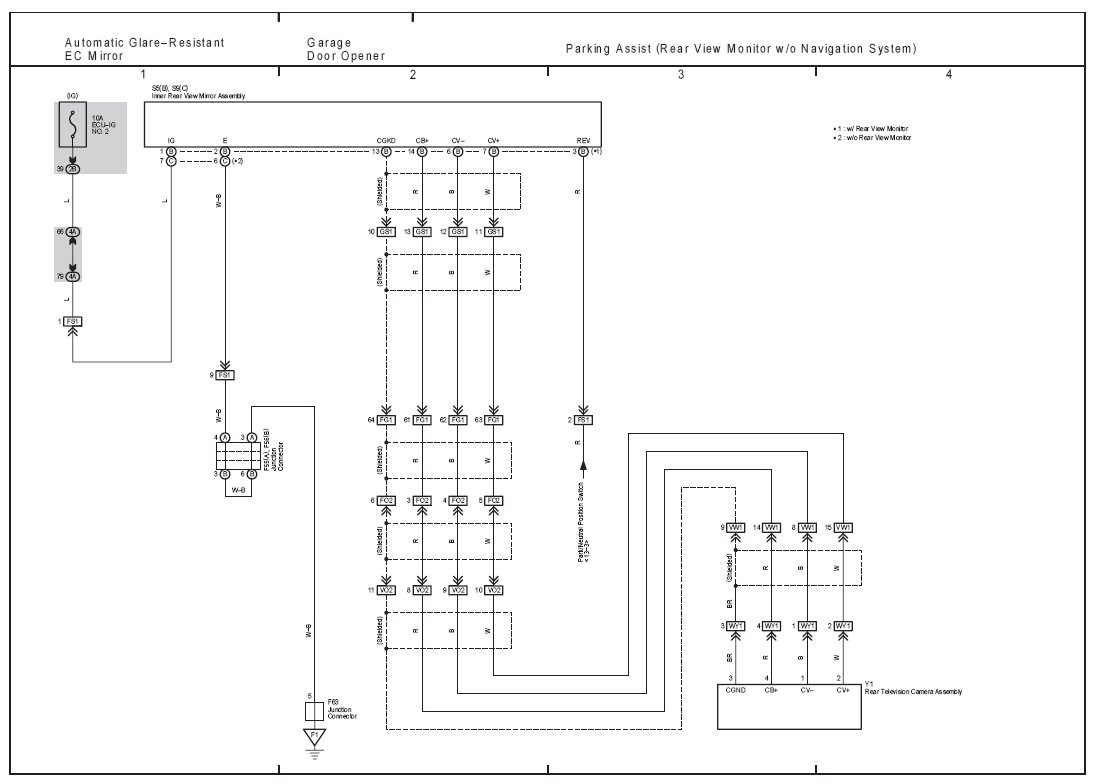

Fig 1: Garage Door Opener Electrical Wiring Diagram
G07111780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
