ABS: A-TRAC: Auto LSD: Crawl: Downhill Assist Control: Hill-Start Assist Control: Multi-Terrain Select: TRAC: VSC

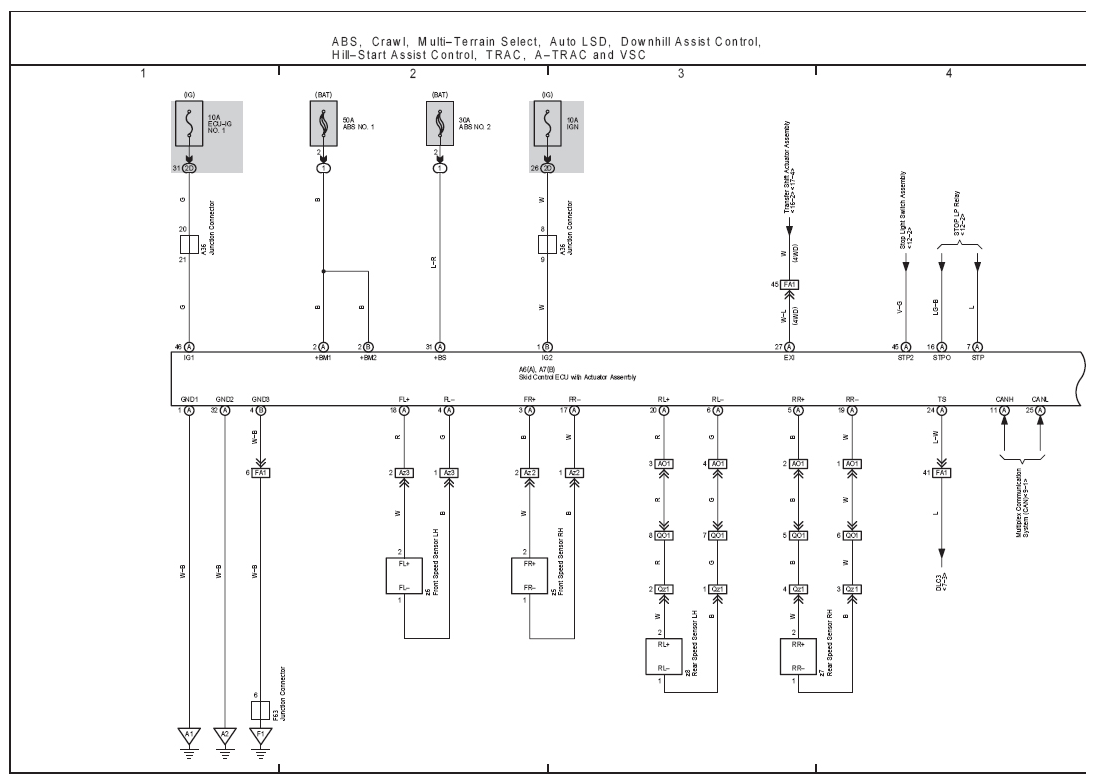

Fig 1: ABS, Crawl, Multi-Terrain Select, Auto LSD, Downhill Assist Control Hill-Start Assist Control, TRAC, A-TRAC And VSC Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

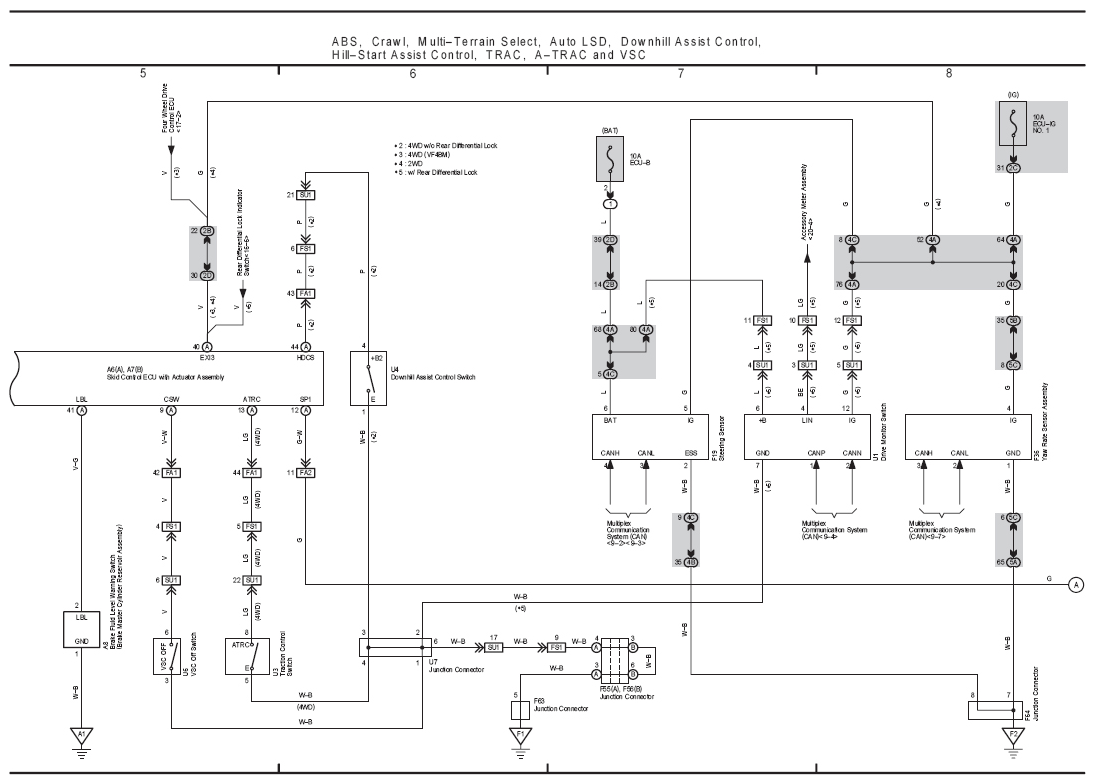

Fig 2: ABS, Crawl, Multi-Terrain Select, Auto LSD, Downhill Assist Control Hill-Start Assist Control, TRAC, A-TRAC And VSC Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

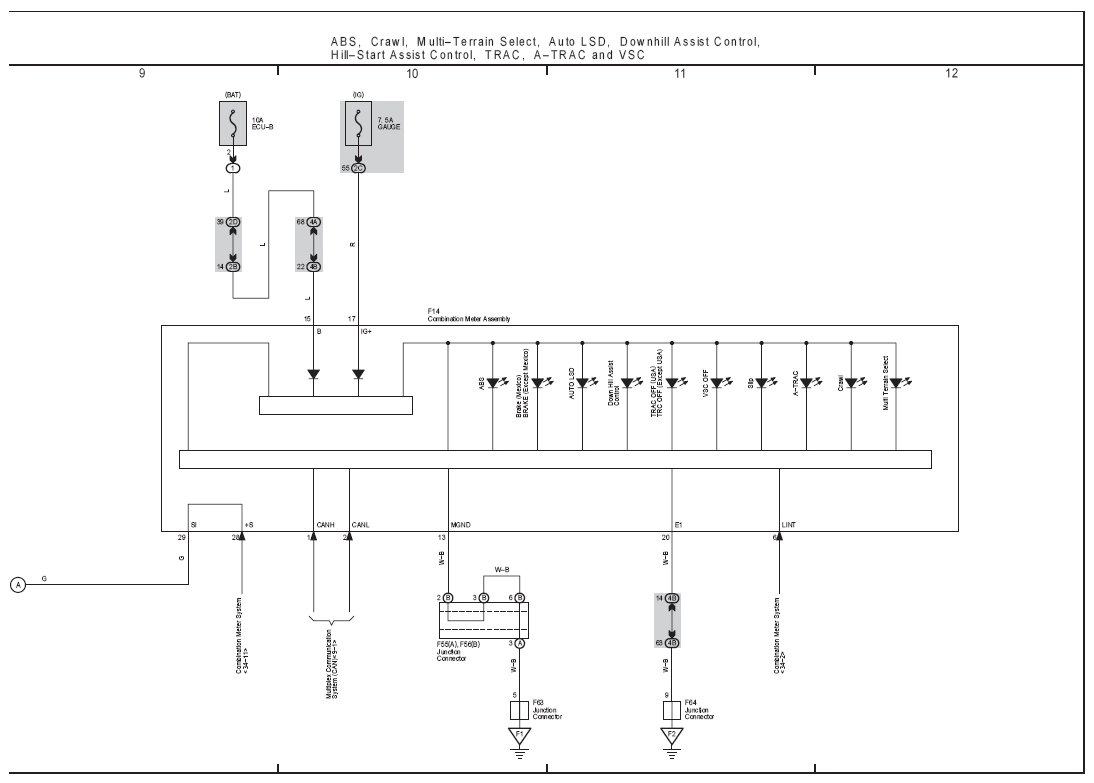

Fig 3: ABS, Crawl, Multi-Terrain Select, Auto LSD, Downhill Assist Control Hill-Start Assist Control, TRAC, A-TRAC And VSC Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
