4WD (VF4BM)

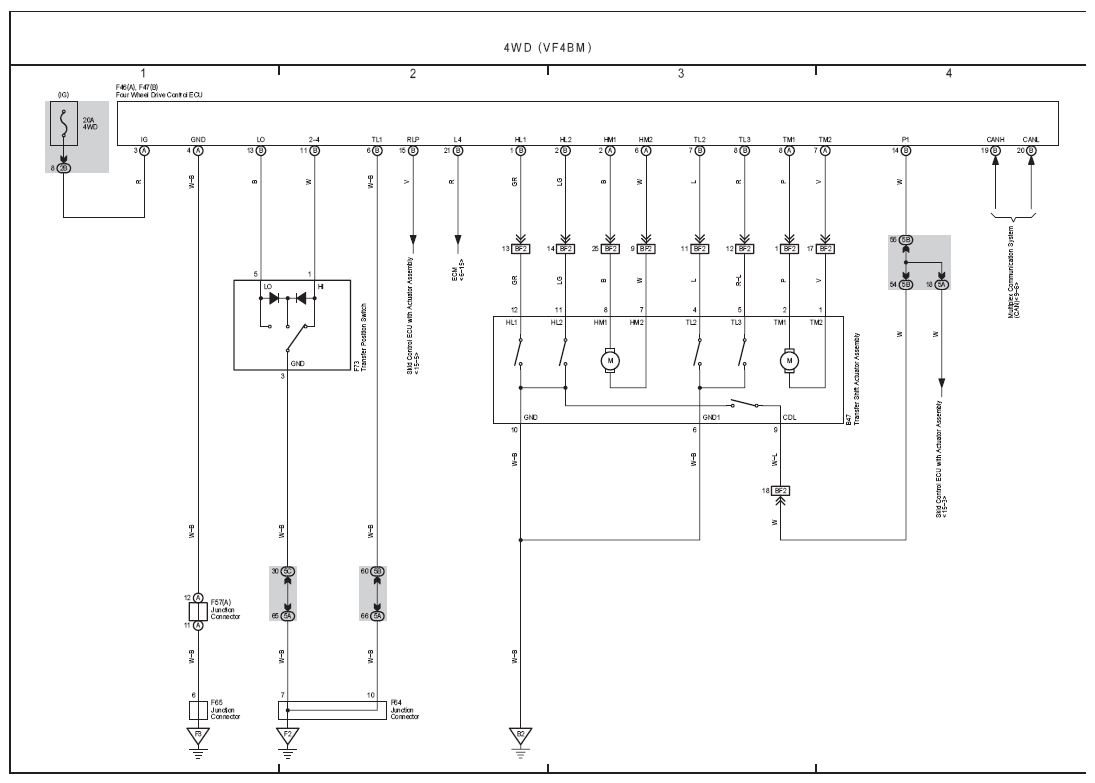

Fig 1: 4WD (VF4BM) Electrical Wiring Diagram (1 Of 2)
G07111752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

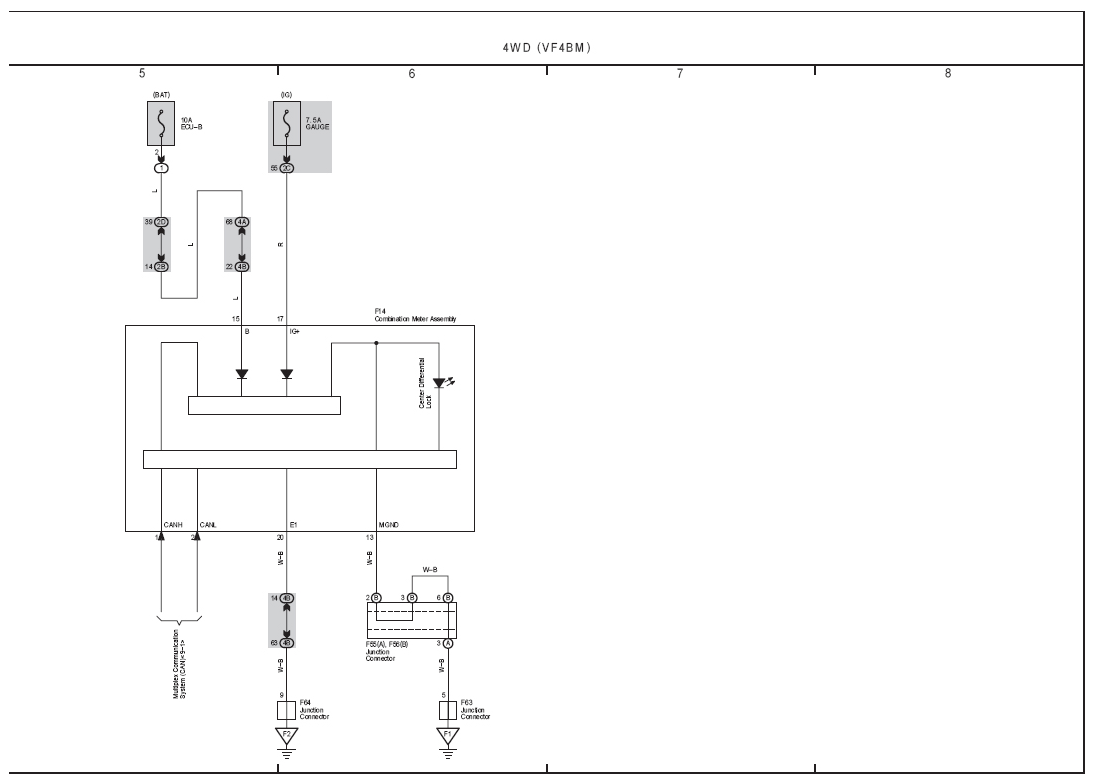

Fig 2: 4WD (VF4BM) Electrical Wiring Diagram (2 Of 2)
G07111753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
