4WD (VF2A): Rear Differential Lock

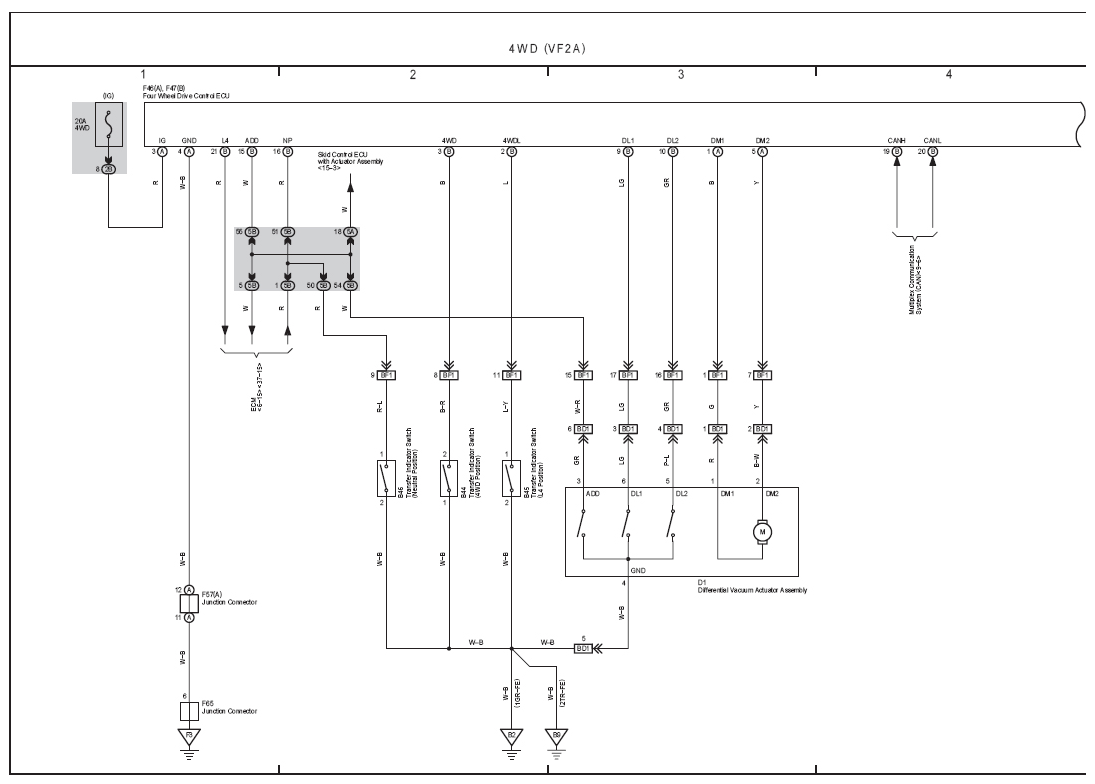

Fig 1: 4WD (VF2A) Electrical Wiring Diagram
G07111750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

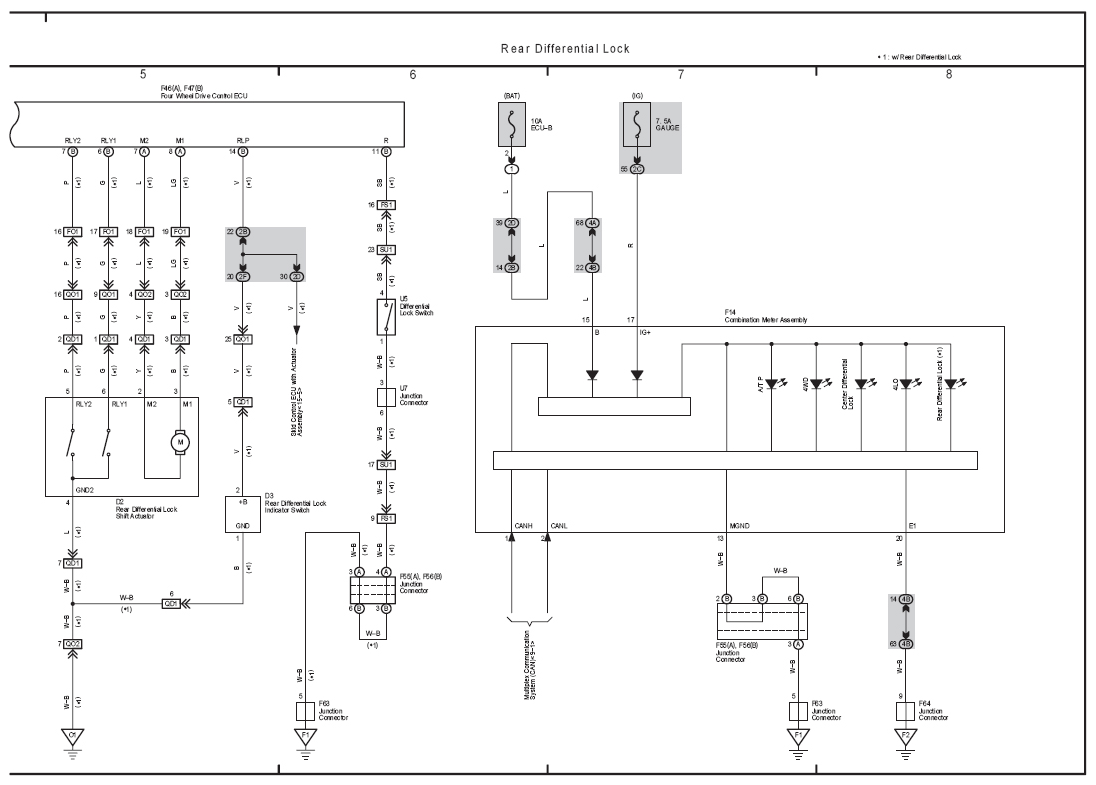

Fig 2: Rear Differential Lock Electrical Wiring Diagram
G07111751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
