Speed Signal Circuit: Wiring Diagram

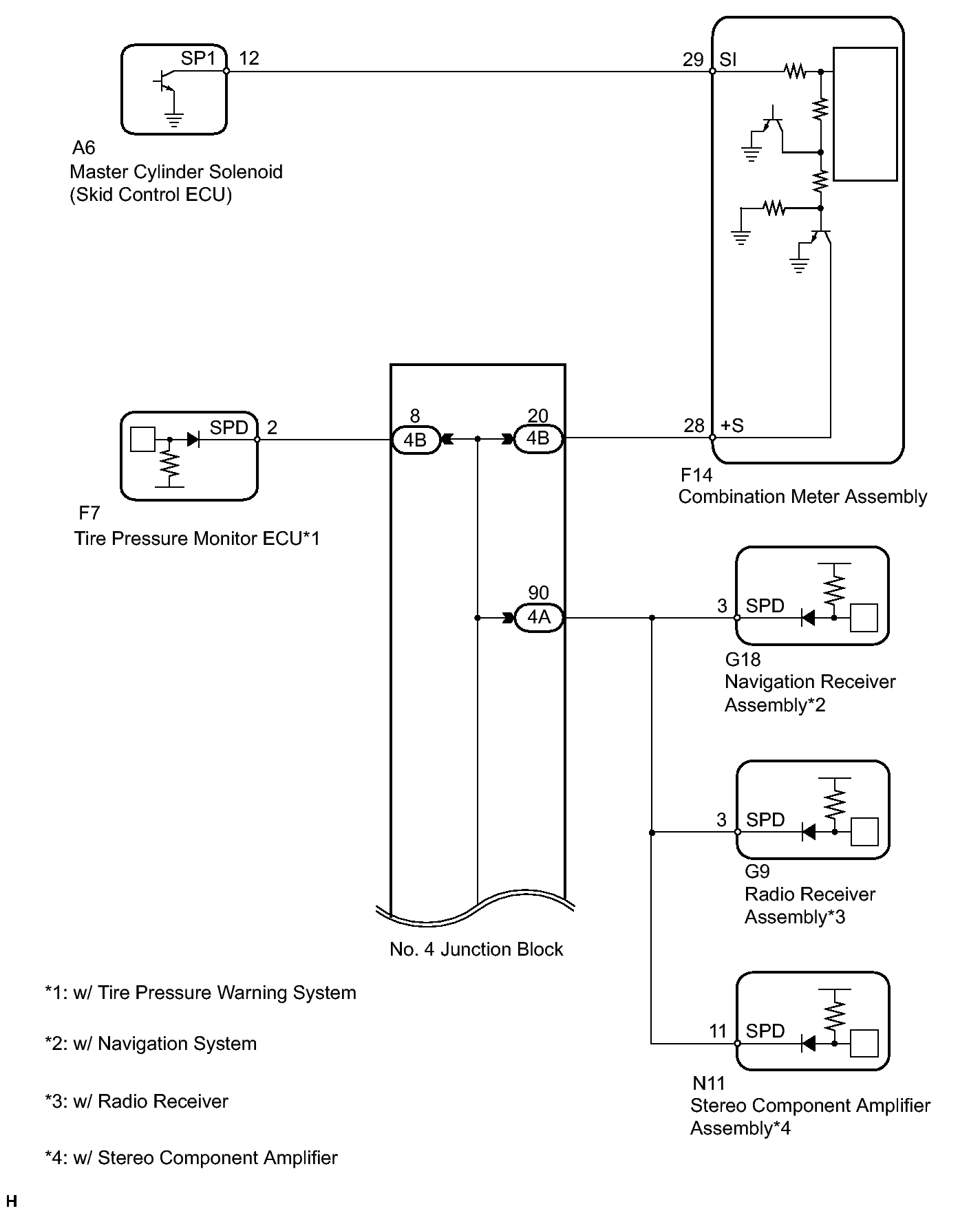

Fig 1: Identifying Speed Signal - Wiring Diagram (1 Of 2)
GTY214682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

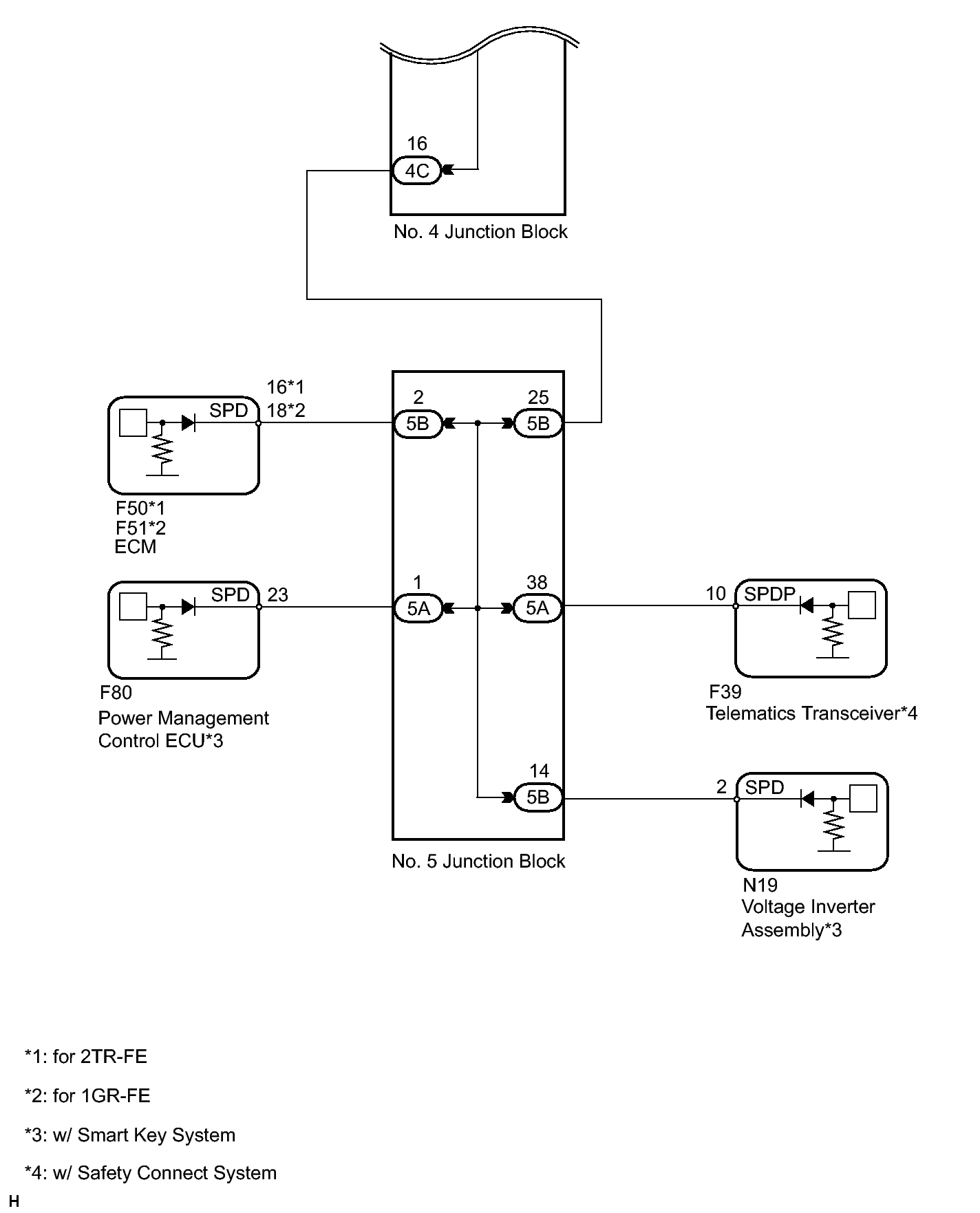

Fig 2: Identifying Speed Signal - Wiring Diagram (2 Of 2)
GTY216534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
