Parts Location: Illustration

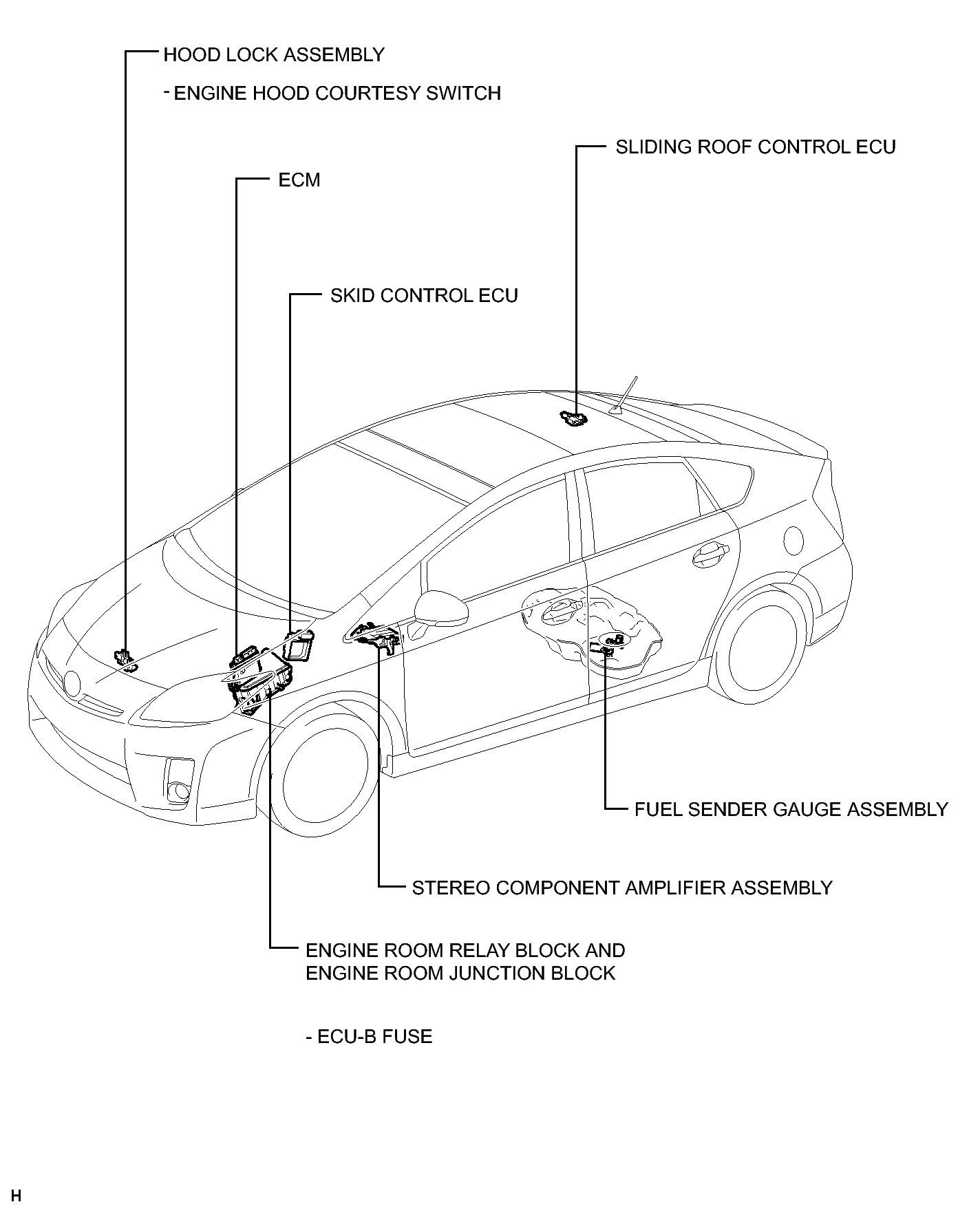

Fig 1: Locating Meter / Gauge System Parts (1 Of 4)
GTY215361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

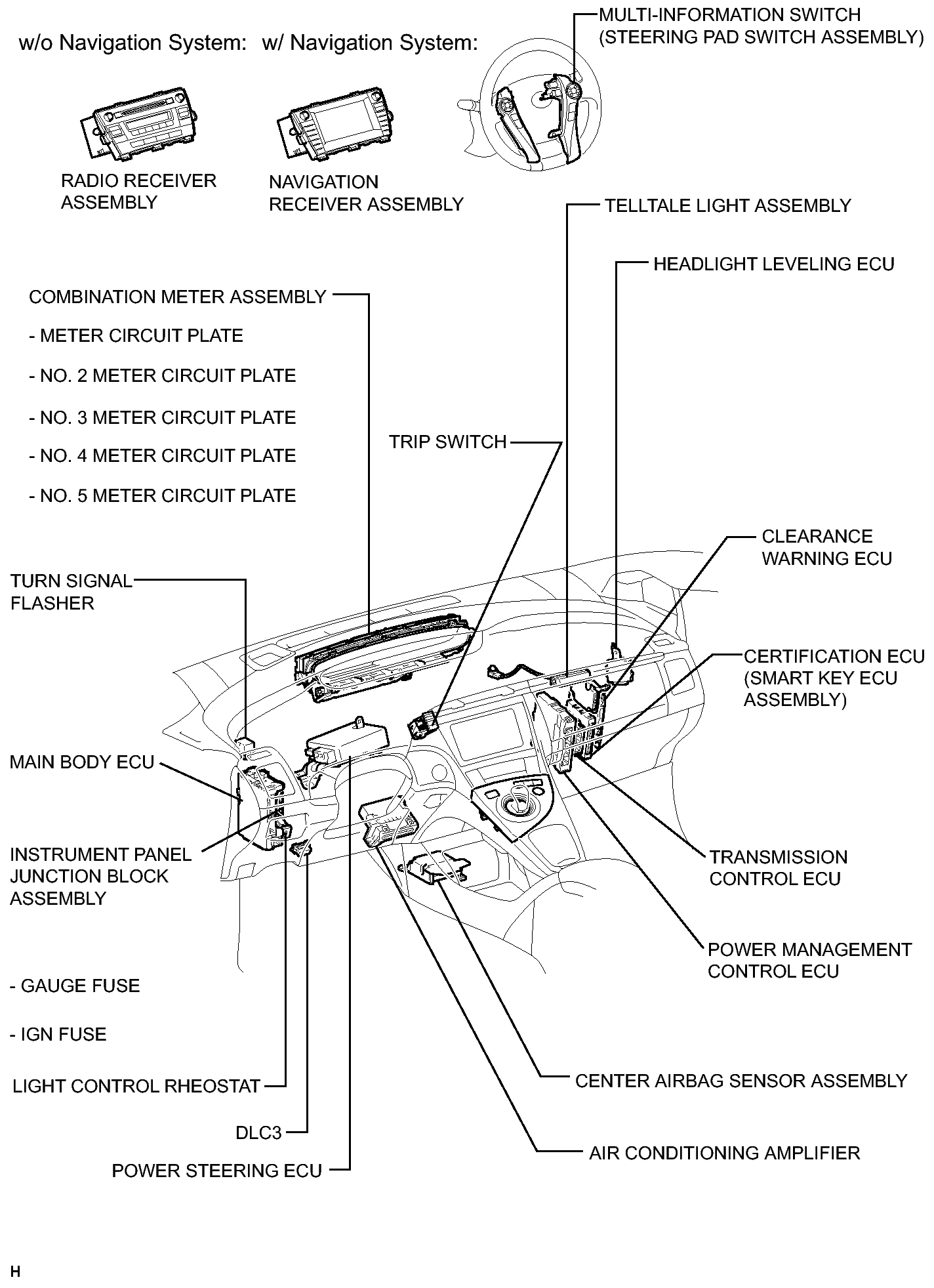

Fig 1: Locating Meter / Gauge System Parts (2 Of 4)
GTY230022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Meter / Gauge System Parts (3 Of 4)
GTY223998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Meter / Gauge System Parts (4 Of 4)
GTY213070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
