Speed Signal Circuit: Procedure

  1. INSPECT ECU TERMINAL VOLTAGE (INPUT VOLTAGE)
    1. Disconnect the L27 connector.
      Fig 1: Identifying L27 ECU Terminal Voltage Connector Terminal
      GTY216640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      L27-7 (+S) - Body ground Power switch on (IG) 4.5 to 14 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Combination Meter Assembly (No. 3 Meter Circuit Plate))

      HINT:

      If any of the ECUs specified in the wiring diagram supplies power to the combination meter assembly, the combination meter assembly will output a waveform.

    NG → See step   5

    OK: Go to next step

  2. INSPECT COMBINATION METER ASSEMBLY (NO. 3 METER CIRCUIT PLATE) (OUTPUT VOLTAGE)
    1. Reconnect the L27 connector.
    2. Disconnect the A58 connector.
      Fig 2: Identifying A58 Connector Terminal
      GTY216649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A58-11 (SP1) - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Skid Control ECU)

    NG → See step   4

    OK: Go to next step

  3. INSPECT SKID CONTROL ECU (INPUT WAVEFORM)
    1. Check the input waveform.
      Fig 3: Identifying L27 Skid Control ECU (Input Waveform)
      GTY223186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Reconnect the A58 connector.
      2. Remove the combination meter assembly with the connector(s) still connected.
      3. Connect an oscilloscope to terminal L27-8 (SI) and body ground.
      4. Turn the power switch on (IG).
      5. Turn the wheel slowly.
      6. Check the signal waveform according to the condition(s) in the table below.
        Item Condition
        Tool setting 5 V/DIV., 20 ms./DIV.
        Vehicle condition Driving at approx. 20 km/h (12 mph)
        TEXT IN ILLUSTRATION

        *1 Component with harness connected
        (Combination Meter Assembly)

        OK

        The waveform is displayed as shown in the illustration.

        HINT:

        When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

    NG → See step   20

    OK → See step   19

  4. CHECK HARNESS AND CONNECTOR (NO. 3 METER CIRCUIT PLATE - SKID CONTROL ECU)
    1. Disconnect the L27 and A58 connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A58-11 (SP1) - L27-8 (SI) Always Below 1 Ω
      A58-11 (SP1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   19

  5. CHECK HARNESS AND CONNECTOR (NO. 3 METER CIRCUIT PLATE - RADIO RECEIVER ASSEMBLY)
    1. Disconnect the L27 and L50 connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L50-3 (SPD) - L27-7 (+S) Always Below 1 Ω
      L50-3 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. INSPECT RADIO RECEIVER ASSEMBLY (OUTPUT VOLTAGE)
    1. Reconnect the L50 connector.
      Fig 4: Identifying L50 Connector
      GTY223734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      L50-3 (SPD) - Body ground Power switch on (IG) 4 to 14 V
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (Radio Receiver Assembly)

    NG → See step   21

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - NO. 3 JUNCTION BLOCK)
    1. Disconnect the 3A connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L27-7 (+S) - 3A-26 Always Below 1 Ω
      L27-7 (+S) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (NO. 3 JUNCTION BLOCK (INSTRUMENT PANEL WIRE))
    1. Inspect for a short in the circuit that is connected to the junction block connector shown in the wiring diagram.

      HINT:

      If voltage is not present, it is possible that an ECU or circuit has a malfunction. The malfunctioning ECU or circuit will be diagnosed in the following steps.

      1. Disconnect the 3B connector.
        Fig 5: Identifying ECU 3B & 3A Connector Terminals
        GTY225696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        3A-2 - Body ground Power switch on (IG) 4.5 to 14 V
        3B-1 - Body ground Power switch on (IG) 4.5 to 14 V
        3B-85 - Body ground Power switch on (IG) 4.5 to 14 V
        TEXT IN ILLUSTRATION

        *1 Front view of wire harness connector
        (to No. 3 Junction Block)

        Result

        Result Proceed to
        Voltage is not present in one circuit. A
        Voltage is present in all the circuits. B

    B → REPLACE NO. 3 JUNCTION BLOCK (INSTRUMENT PANEL WIRE)

    A: Go to next step

  9. CHECK HARNESS AND CONNECTOR (NO. 3 JUNCTION BLOCK - NO. 4 JUNCTION BLOCK)
    1. Disconnect the 4A connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3B-85 - 4A-21 Always Below 1 Ω
      3B-85 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  10. CHECK HARNESS AND CONNECTOR (NO. 4 JUNCTION BLOCK (INSTRUMENT PANEL WIRE))
    1. Inspect for a short in the circuit that is connected to the junction block connector shown in the wiring diagram.

      HINT:

      If voltage is not present, it is possible that an ECU or circuit has a malfunction. The malfunctioning ECU or circuit will be diagnosed in the following steps.

      1. Measure the voltage according to the value(s) in the table below.

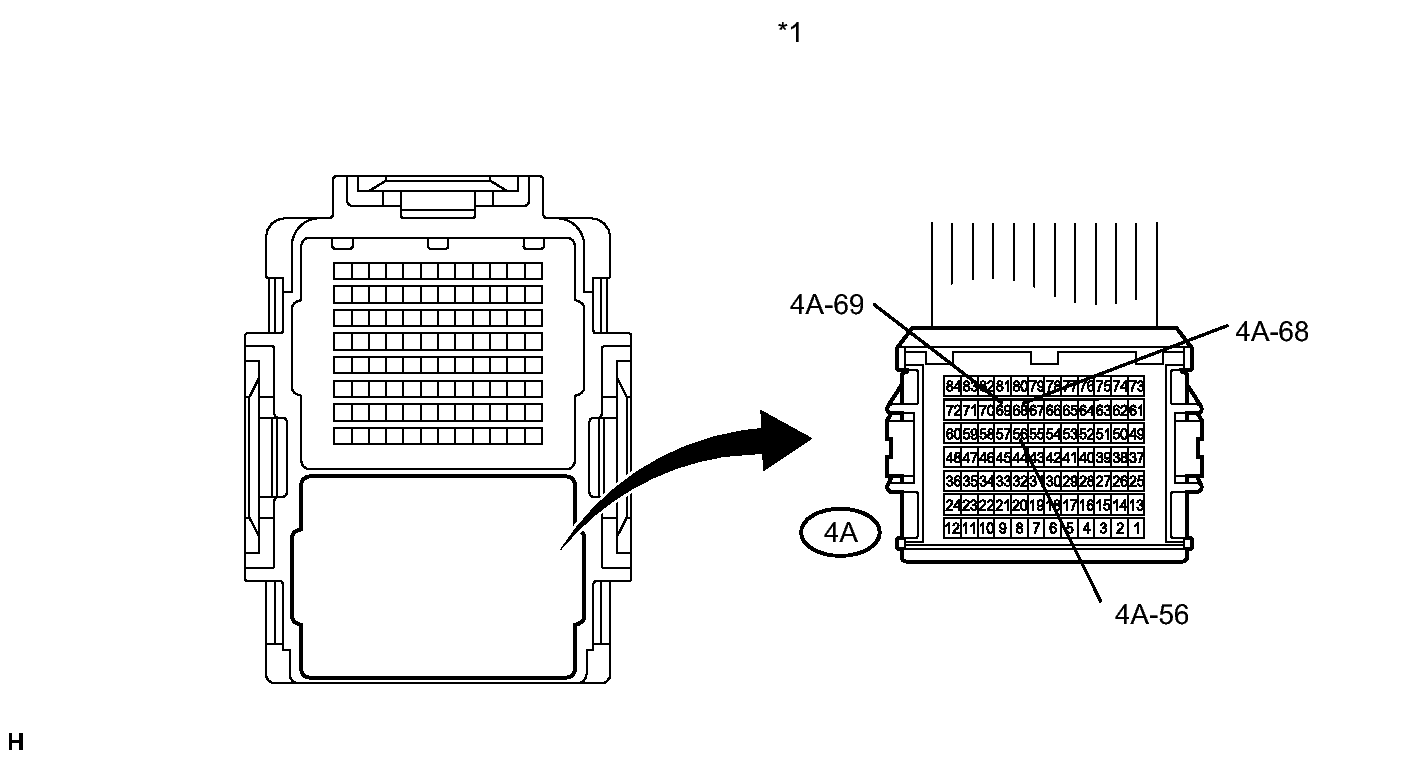

        Fig 6: Identifying Junction Block Connector
        GTY233317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Voltage

        Tester Connection Condition Specified Condition
        4A-56 - Body ground Power switch on (IG) 4.5 to 14 V
        4A-68 - Body ground Power switch on (IG) 4.5 to 14 V
        4A-69 - Body ground Power switch on (IG) 4.5 to 14 V
        TEXT IN ILLUSTRATION

        *1 Front view of wire harness connector
        (to No. 4 Junction Block)

        Result

        Result Proceed to
        Voltage is not present in one circuit. A
        Voltage is present in all the circuits. B

    B → REPLACE NO. 4 JUNCTION BLOCK (INSTRUMENT PANEL WIRE)

    A: Go to next step

  11. SYSTEM CHECK
    1. Select the circuit for which voltage was not present in step 7 or 9.

      Result

      Tester Connection System that Uses the Circuit Proceed to
      3A-2 - Body ground Smart Key System A
      4A-69 - Body ground Audio/Visual System A
      4A-68*1 - Body ground Navigation System A
      3B-1*2 - Body ground Tire Pressure Warning ECU A
      4A-56*3 - Body ground Lighting System A
      4A-80*4 - Body ground Safety Connect System B
      • *1: w/ Navigation System
      • *2: w/ Tire Pressure Warning System
      • *3: w/ Automatic Type Headlight Beam Level Control
      • *4: w/ Manual (SOS) Switch

    B → See step   18

    A: Go to next step

  12. SYSTEM CHECK
    1. Select the circuit for which voltage was not present in step 7 or 9.

      Result

      Tester Connection System that Uses the Circuit Proceed to
      3A-2 - Body ground Smart Key System A
      4A-69 - Body ground Audio/Visual System B
      4A-68*1 - Body ground Navigation System C
      3B-1*2 - Body ground Tire Pressure Warning ECU D
      4A-56*3 - Body ground Lighting System E
      • *1: w/ Navigation System
      • *2: w/ Tire Pressure Warning System
      • *3: w/ Automatic Type Headlight Beam Level Control

    E → See step   17

    D → See step   16

    C → See step   15

    B → See step   14

    A: Go to next step

  13. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU CIRCUIT)
    1. Disconnect the L5 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L5-14 (SPDI) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   22

  14. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY CIRCUIT)
    1. Disconnect the L31 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L31-11 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   23

  15. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY CIRCUIT)
    1. Disconnect the L42 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L42-3 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   24

  16. CHECK HARNESS AND CONNECTOR (TIRE PRESSURE WARNING ECU CIRCUIT)
    1. Disconnect the L4 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L4-2 (SPD) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   25

  17. CHECK HARNESS AND CONNECTOR (HEADLIGHT LEVELING ECU CIRCUIT)
    1. Disconnect the A48 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A48-16 (SPDR) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   26

  18. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) CIRCUIT)
    1. Disconnect the L19 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L19-10 (SPDP) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   27

  19. REPLACE COMBINATION METER ASSEMBLY (NO. 3 METER CIRCUIT PLATE). Refer to  DISASSEMBLY
  20. REPLACE SKID CONTROL ECU. Refer to  REMOVAL
  21. REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL
  22. REPLACE POWER MANAGEMENT CONTROL ECU. Refer to  REMOVAL
  23. REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY. Refer to  REMOVAL
  24. REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to  REMOVAL
  25. REPLACE TIRE PRESSURE WARNING ECU. Refer to  REMOVAL
  26. REPLACE HEADLIGHT LEVELING ECU ASSEMBLY. Refer to  REMOVAL
  27. REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL
