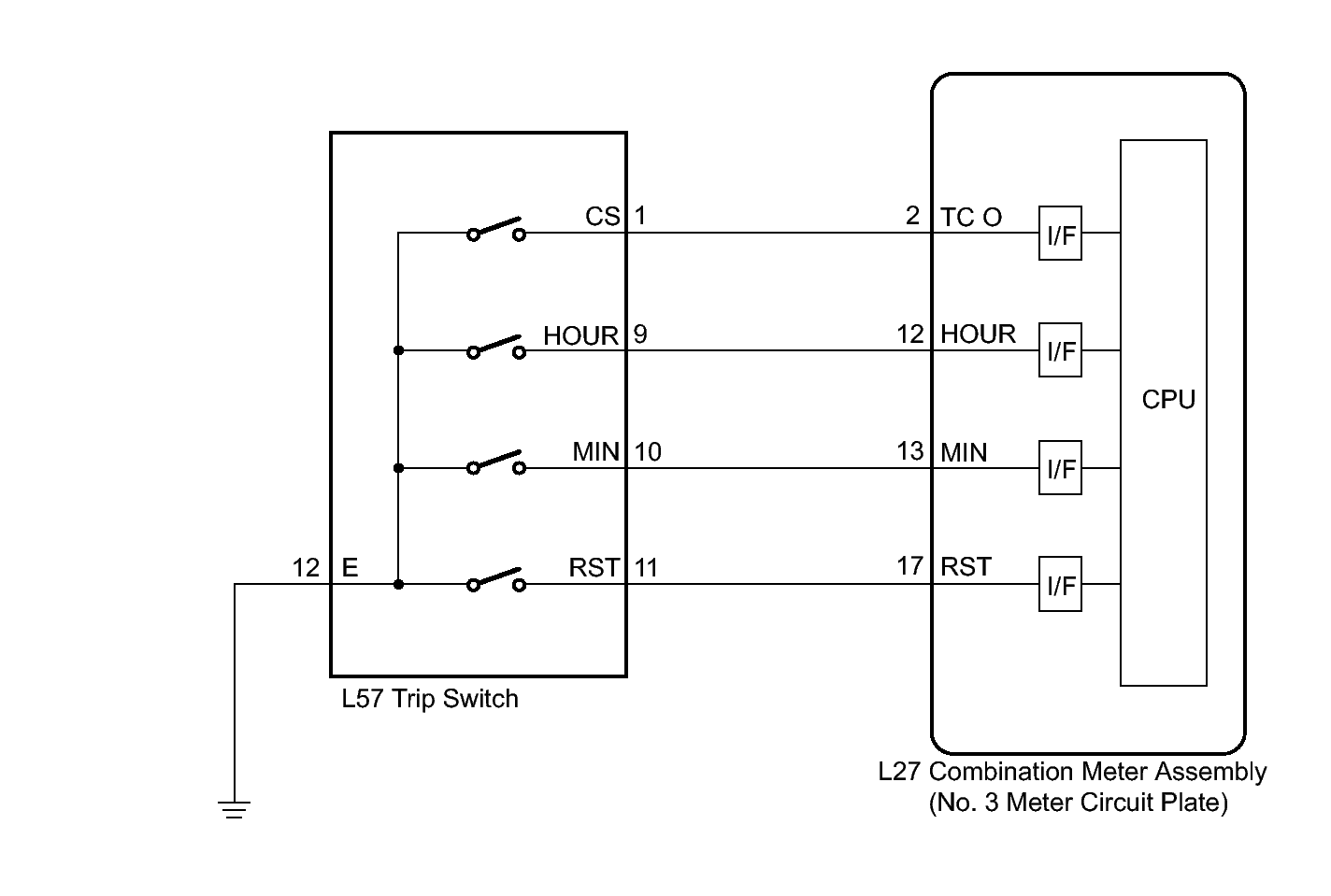

Home >> Toyota >> 2010 >> Prius Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display (Diagnostic Codes & Circuit Tests) (Except PHV) >> Meter/Gauge System >> Circuit Test >> Odo/Trip Switch Malfunction >> Wiring Diagram
