DTC B241A: Rear Height Control Sensor: Wiring Diagram

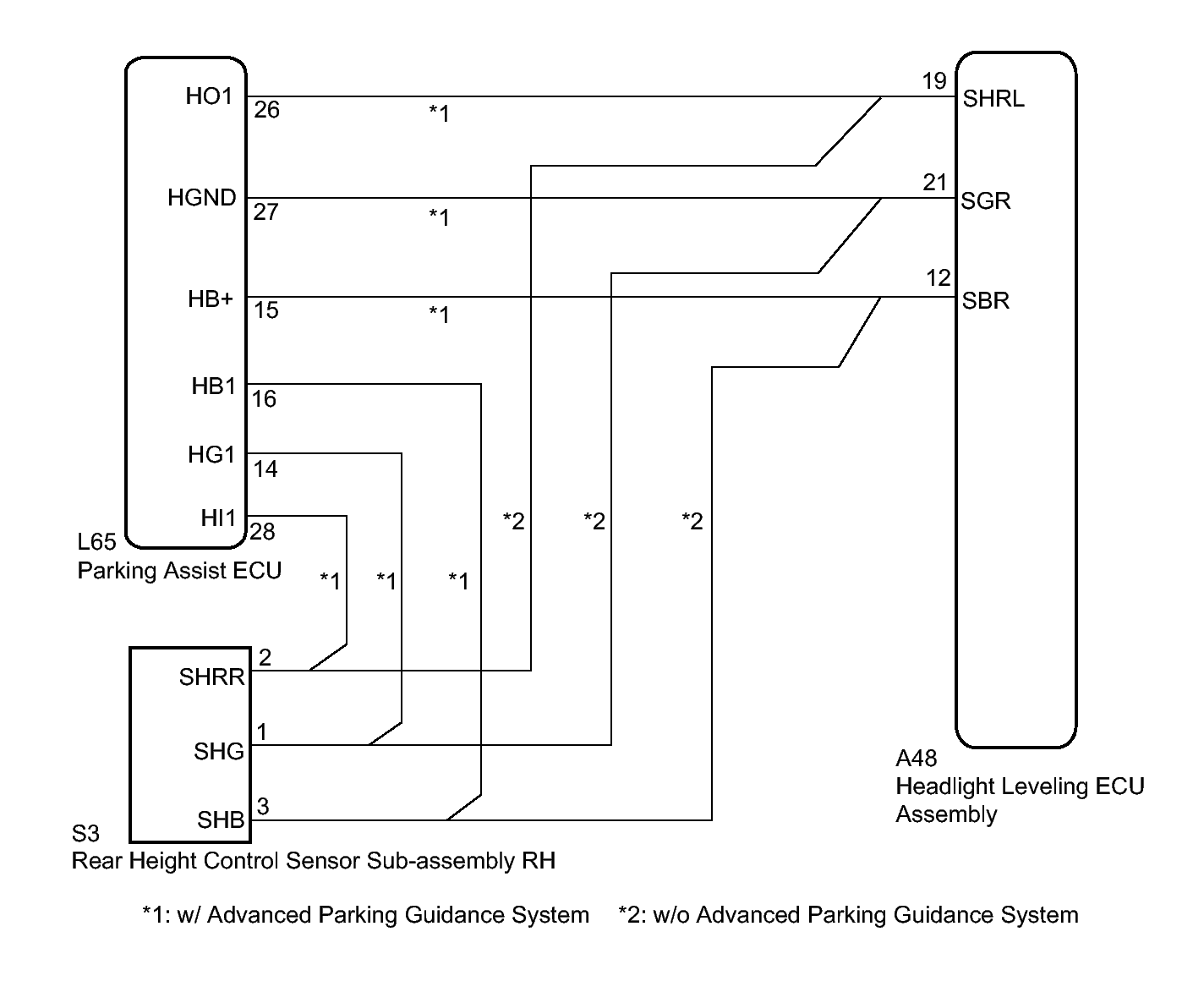

Fig 1: View Of Rear Height Control Sensor Wiring Diagram

GTY215740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
