Taillight Relay Circuit: Wiring Diagram

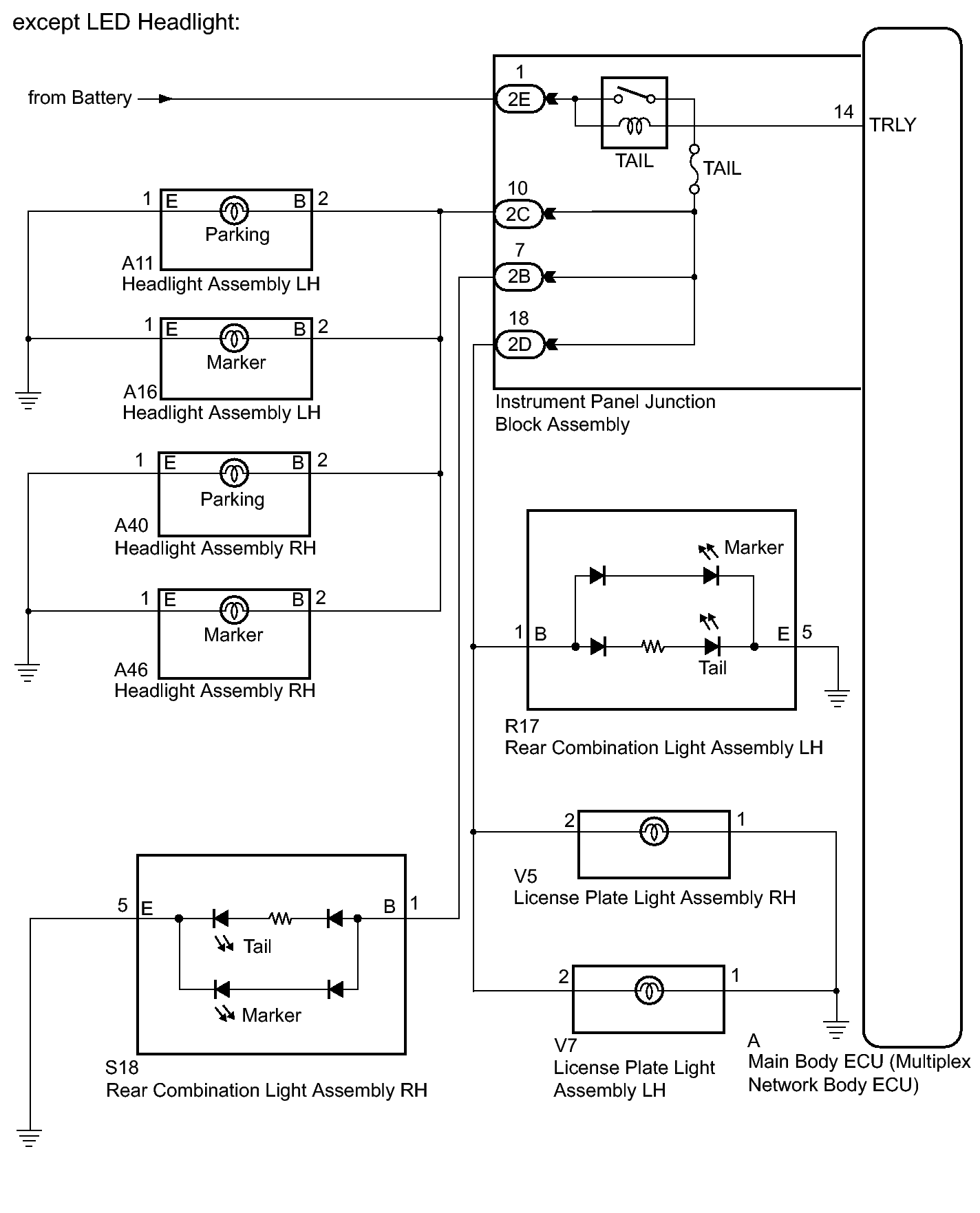

Fig 1: View Of Taillight Relay Circuit Wiring Diagram (1 Of 2)
GTY232687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

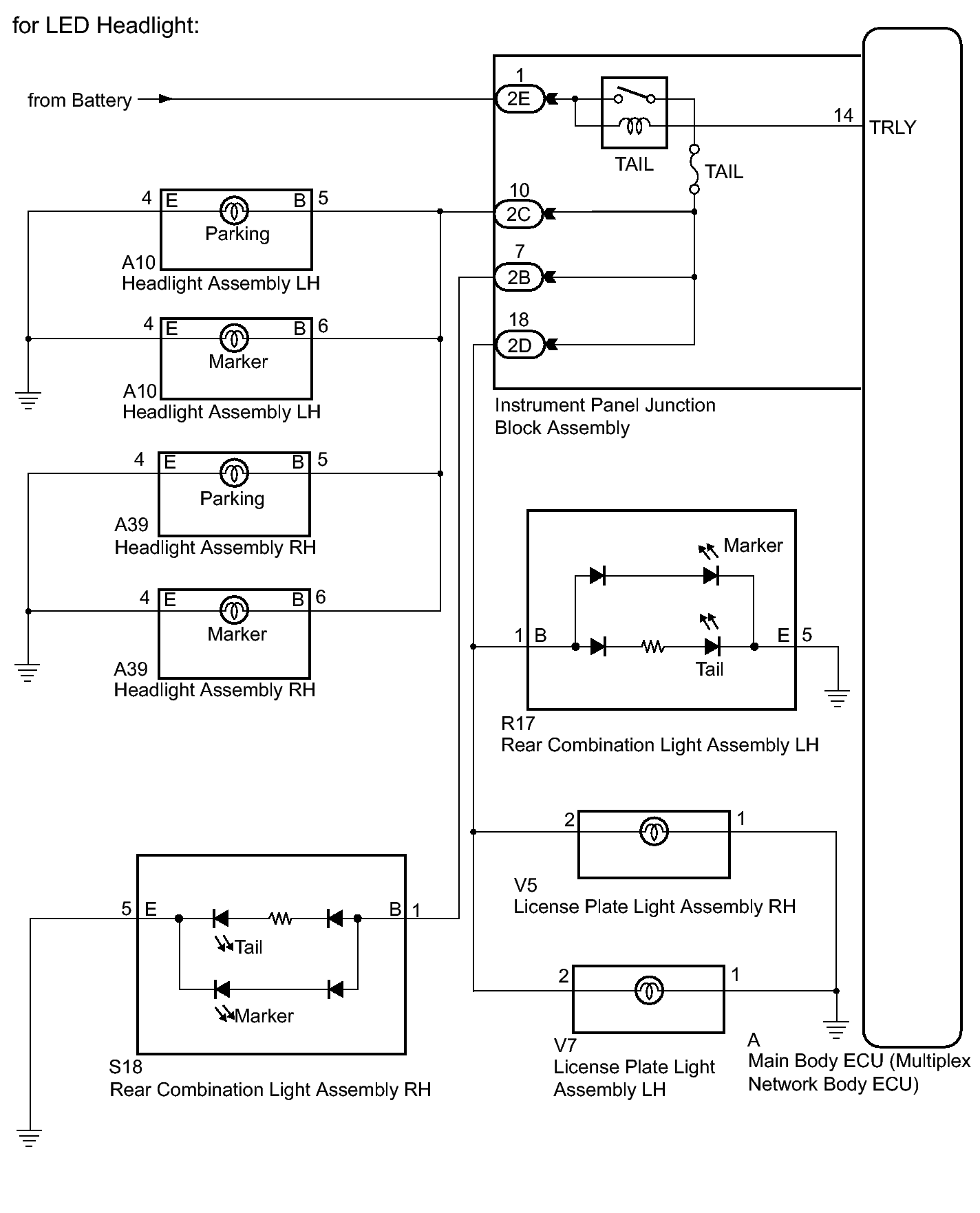

Fig 2: View Of Taillight Relay Circuit Wiring Diagram (2 Of 2)
GTY215411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
