Exterior Lights
>>
Lighting (Exterior) (Diagnostic Codes & Circuit Tests) (Except PHV)
>>
Lighting System
>>
Circuit Test
>>
Speed Signal Circuit
>>
Wiring Diagram
Speed Signal Circuit: Wiring Diagram
for 2ZR-FXE

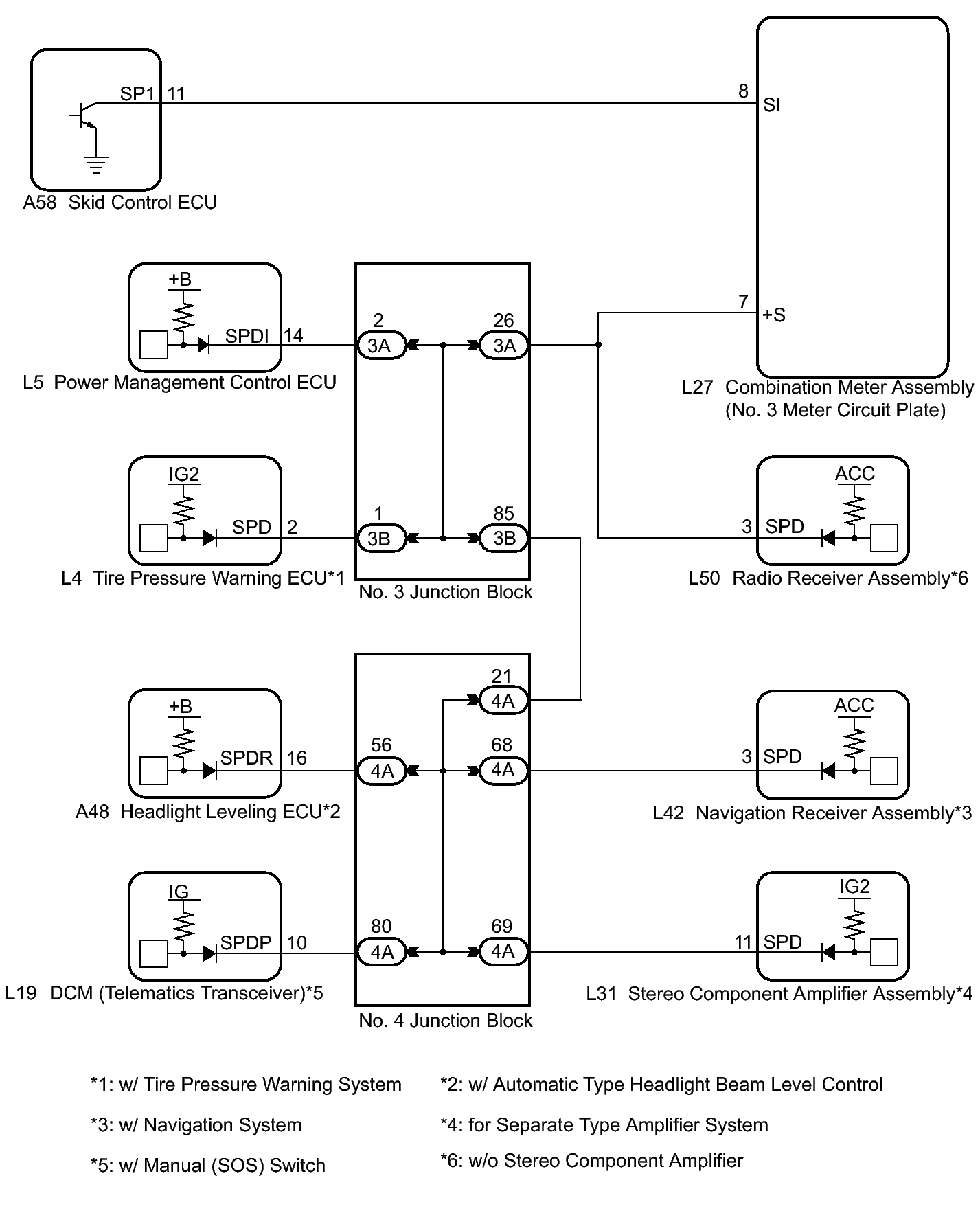

Fig 1: View Of Speed Signal Circuit Wiring Diagram
