High Beam Headlight Circuit: Wiring Diagram

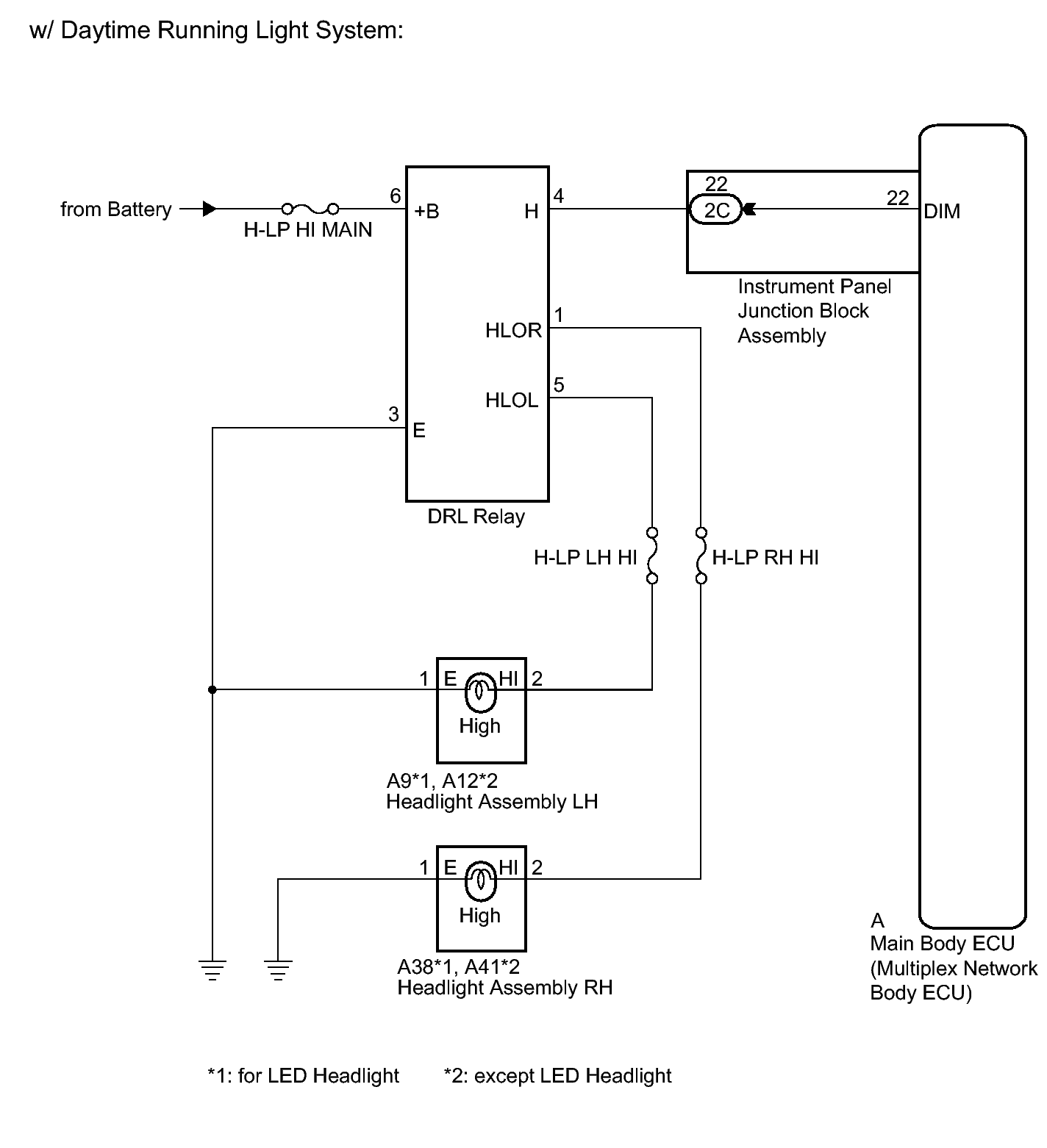

Fig 1: View Of High Beam Headlight Circuit Wiring Diagram (1 Of 2)
GTY217889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

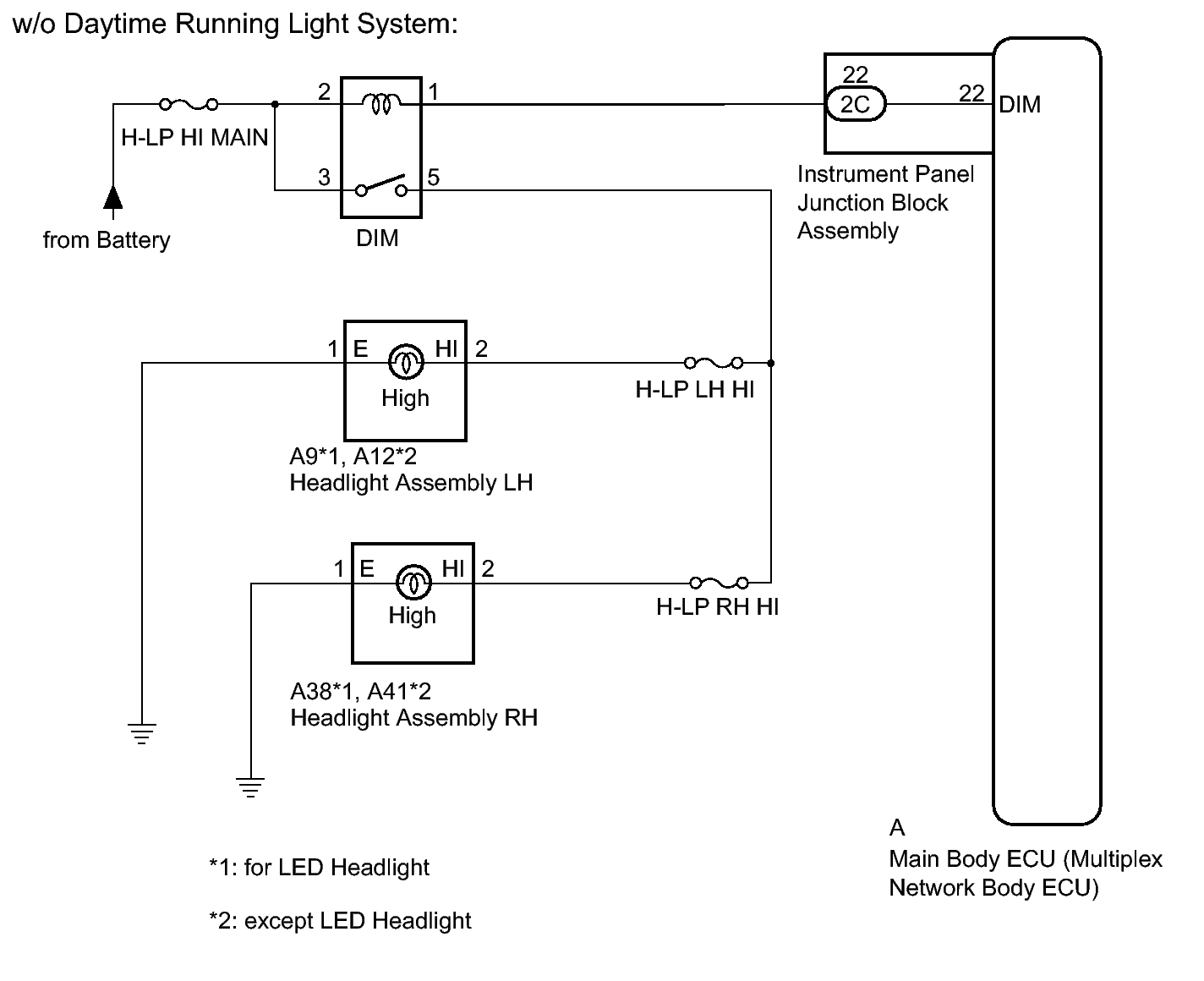

Fig 2: View Of High Beam Headlight Circuit Wiring Diagram (2 Of 2)
GTY211828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
