Headlight Dimmer Switch Circuit: Wiring Diagram

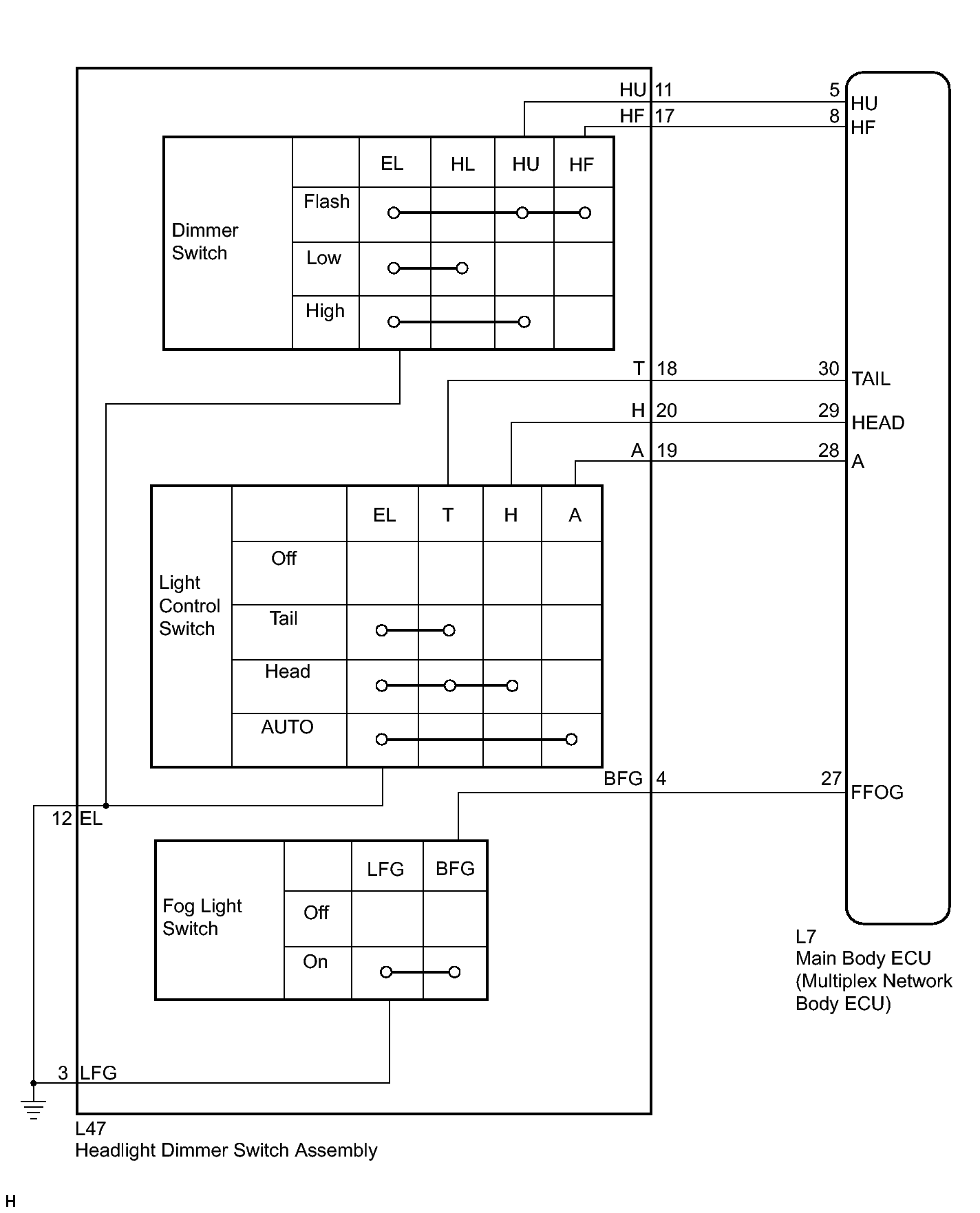

Fig 1: View Of Headlight Dimmer Switch Circuit Wiring Diagram

GTY218580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
