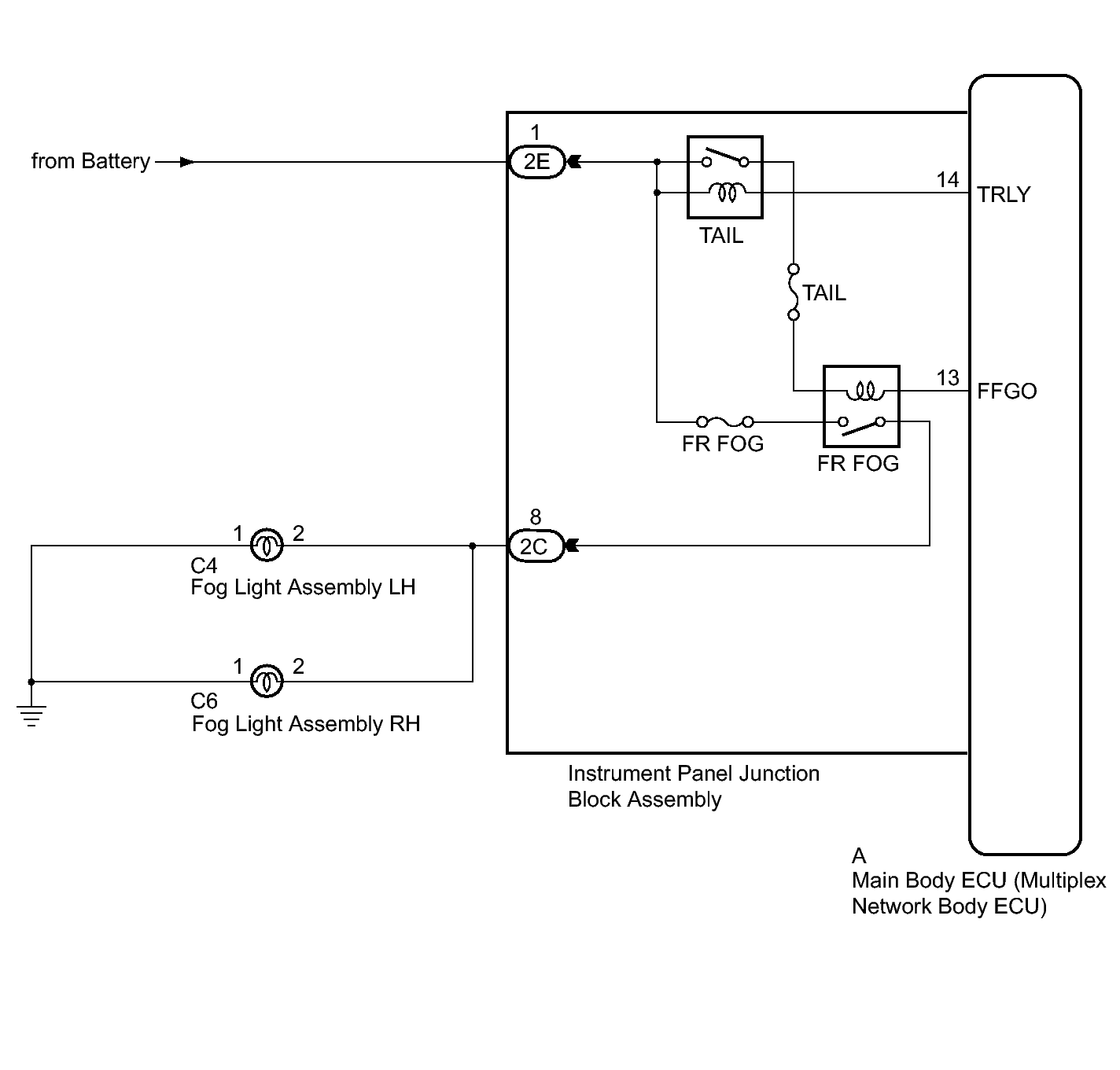

Home >> Toyota >> 2010 >> Prius Base >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting (Exterior) (Diagnostic Codes & Circuit Tests) (Except PHV) >> Lighting System >> Circuit Test >> Front Fog Light Circuit >> Wiring Diagram
