Daytime Running Light Relay Circuit: Wiring Diagram

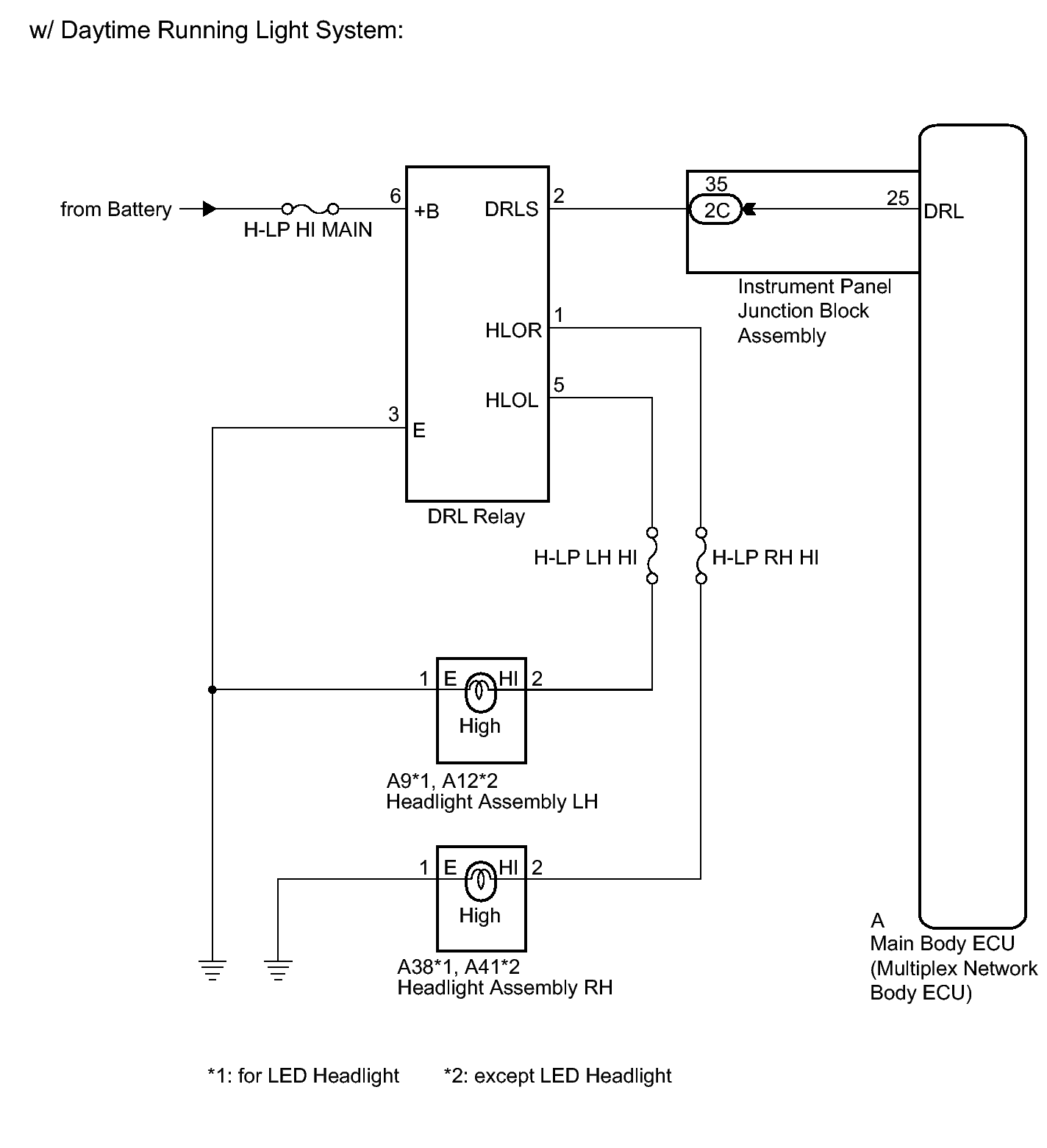

Fig 1: View Of Daytime Running Light Relay Circuit Wiring Diagram

GTY217888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
