DTC B1815/54: Short in Front Passenger Side Squib 2nd Step Circuit; DTC B1816/54: Open in Front Passenger Side Squib 2nd Step Circuit; DTC B1817/54: Short to GND in Front Passenger Side Squib 2nd Step Circuit; DTC B1818/54: Short to B+ in Front Passenger Side Squib 2nd Step Circuit: Wiring Diagram

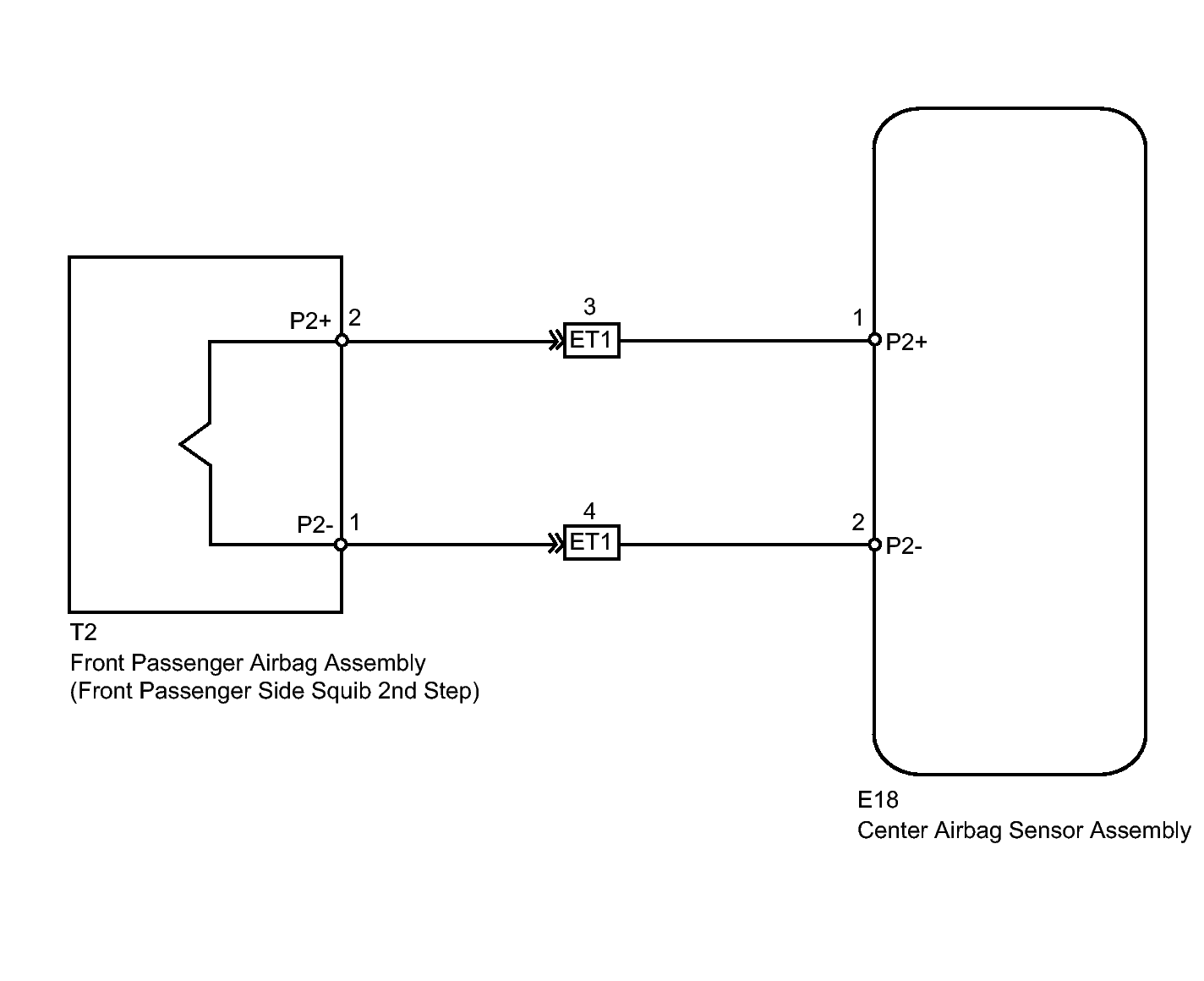

Fig 1: View Of Short In Front Passenger Side Squib 2ND Step Circuit Wiring Diagram
