DTC B1830/57: Short in Curtain Shield Squib RH Circuit; DTC B1831/57: Open in Curtain Shield Squib RH Circuit; DTC B1832/57: Short to GND in Curtain Shield Squib RH Circuit; DTC B1833/57: Short to B+ in Curtain Shield Squib RH Circuit: Wiring Diagram

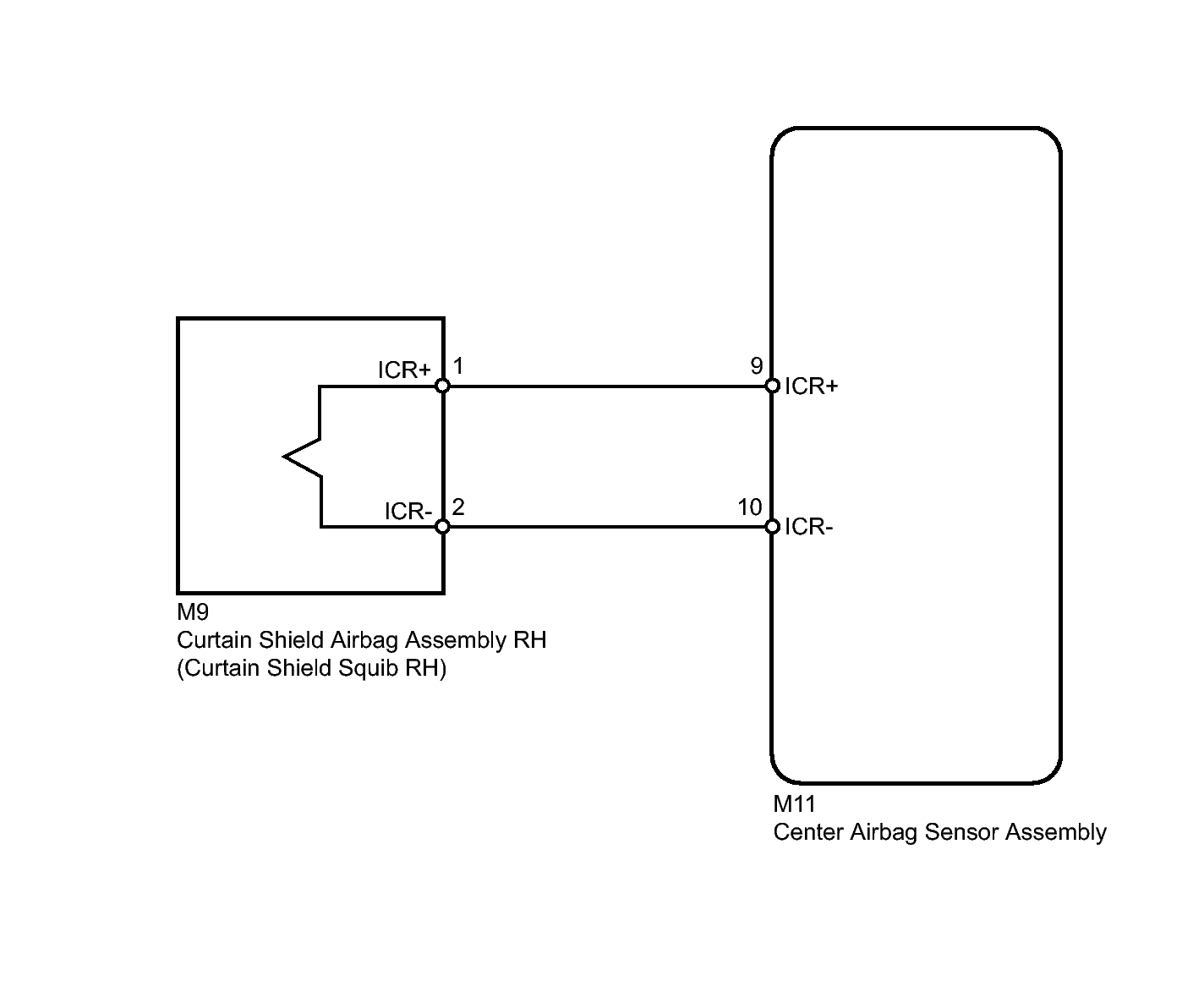

Fig 1: View Of Short In Curtain Shield Squib RH Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
