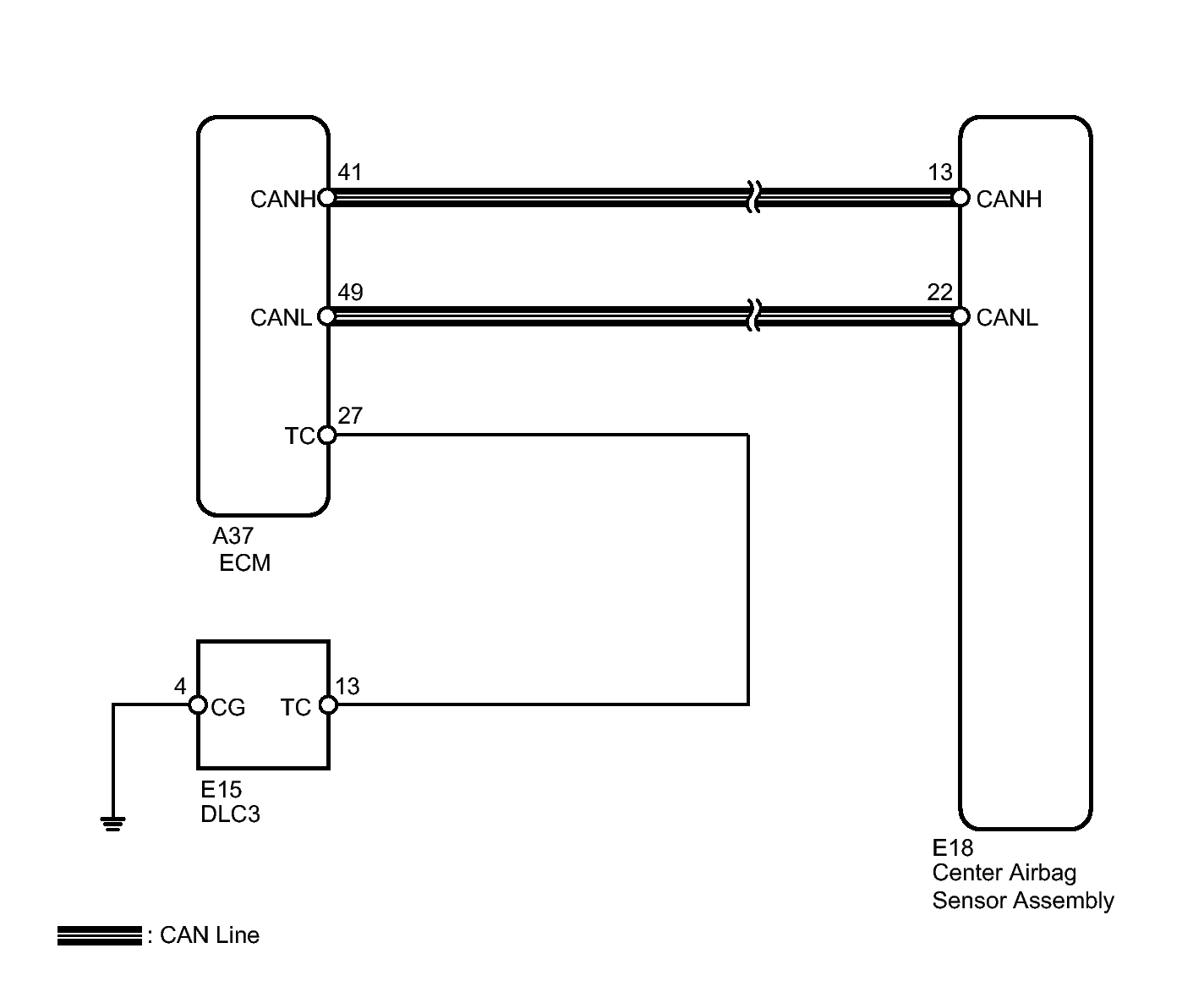

Home >> Toyota >> 2010 >> Matrix S, FWD, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System (Diagnostic Codes (B1000/31 - B1905/74) & Circuit Tests >> Airbag System >> Circuit Test >> TC and CG Terminal Circuit >> Wiring Diagram
