SRS Warning Light does not Come ON: Wiring Diagram

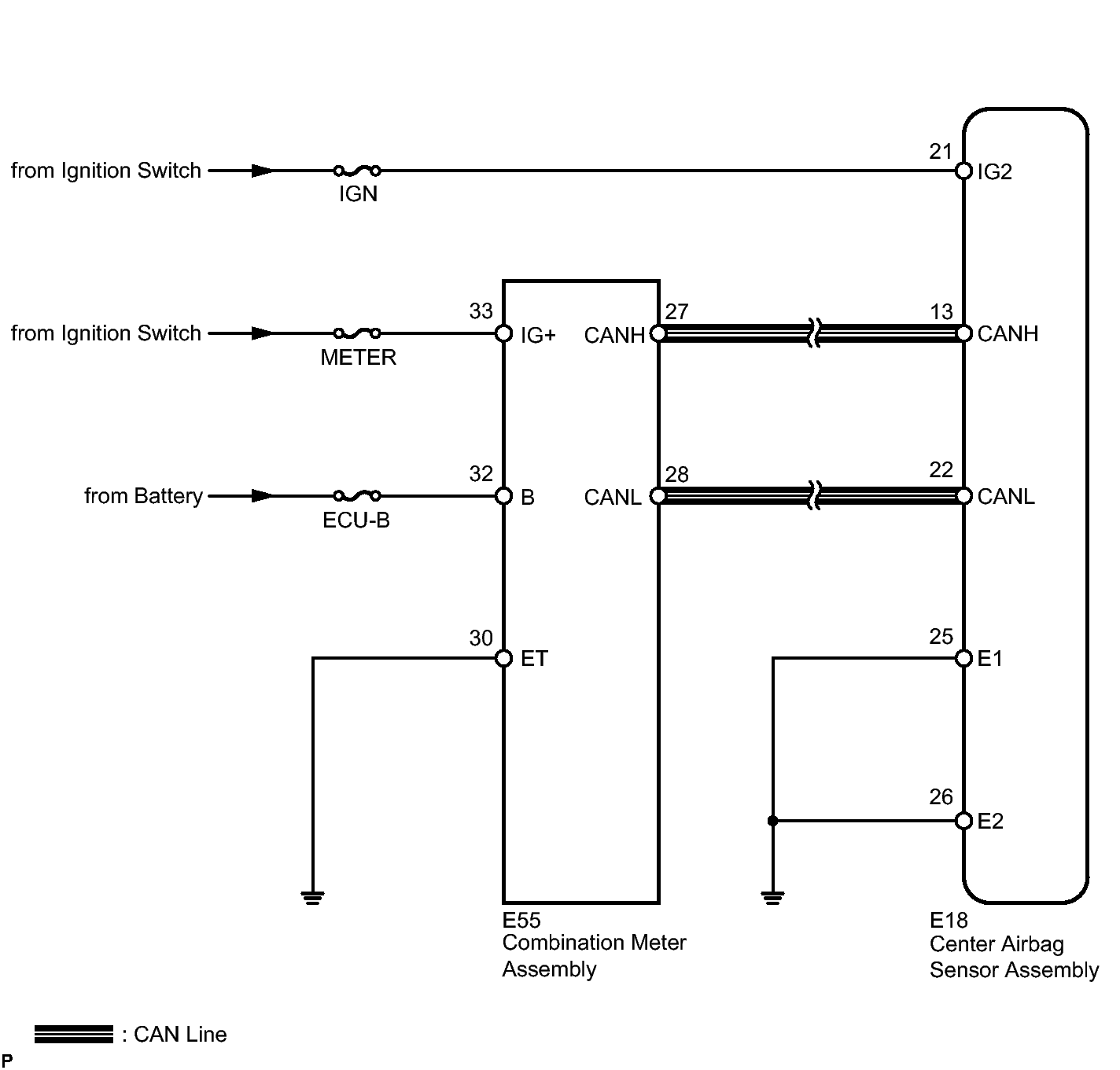

Fig 1: View Of SRS Warning Light Does Not Come ON Wiring Diagram

GTY244029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
