Section 28 (Engine Fuel System (2ZR-FE) (Inspection))
>>
Fuel System
>>
Parts Location
>>
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

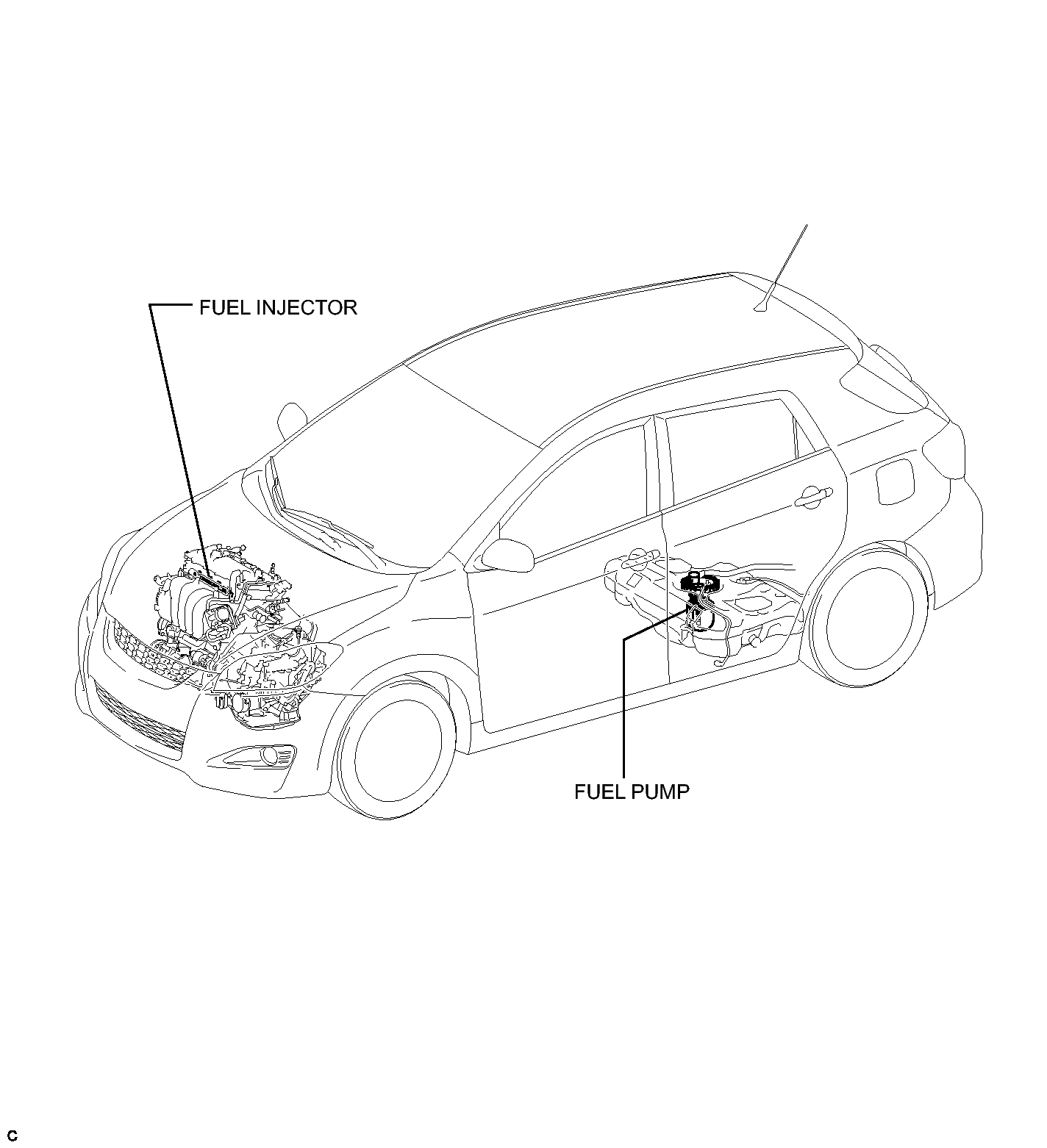

Fig 1: Identifying Fuel System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
