Section 26 (Engine Control (SFI) System (2ZR-FE) (Diagnostic Codes (P0010-P043E)))
>>
SFI System
>>
DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input
>>
Wiring Diagram
DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

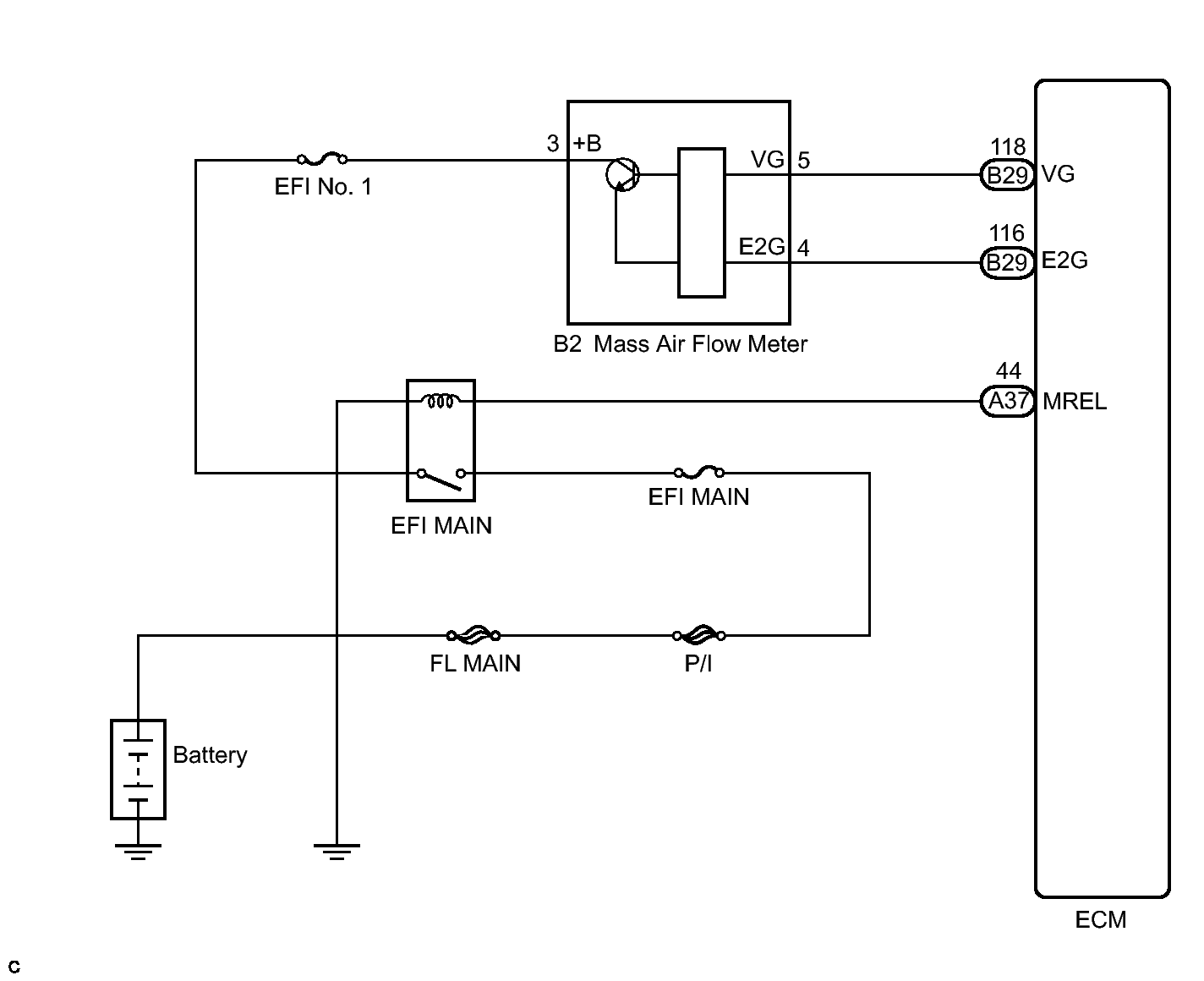

Fig 1: View Of Mass Or Volume Air Flow Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
