Fuel Tank: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY218055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

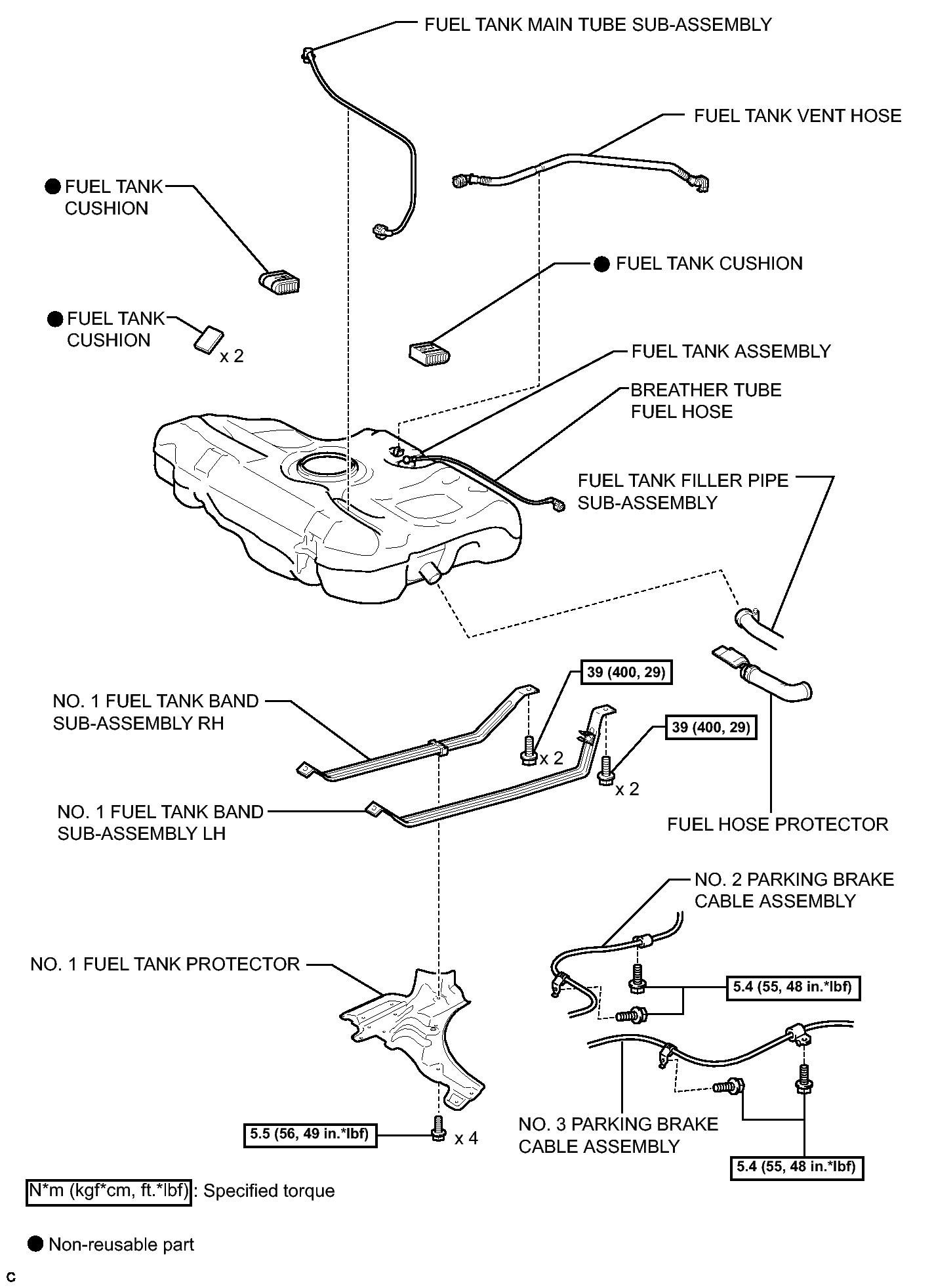

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY231510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
