Section 24 (Engine Fuel System (2ZR-FE) (Service Information))
>>
Fuel Pump
>>
Components
>>
Illustration
Fuel Pump: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

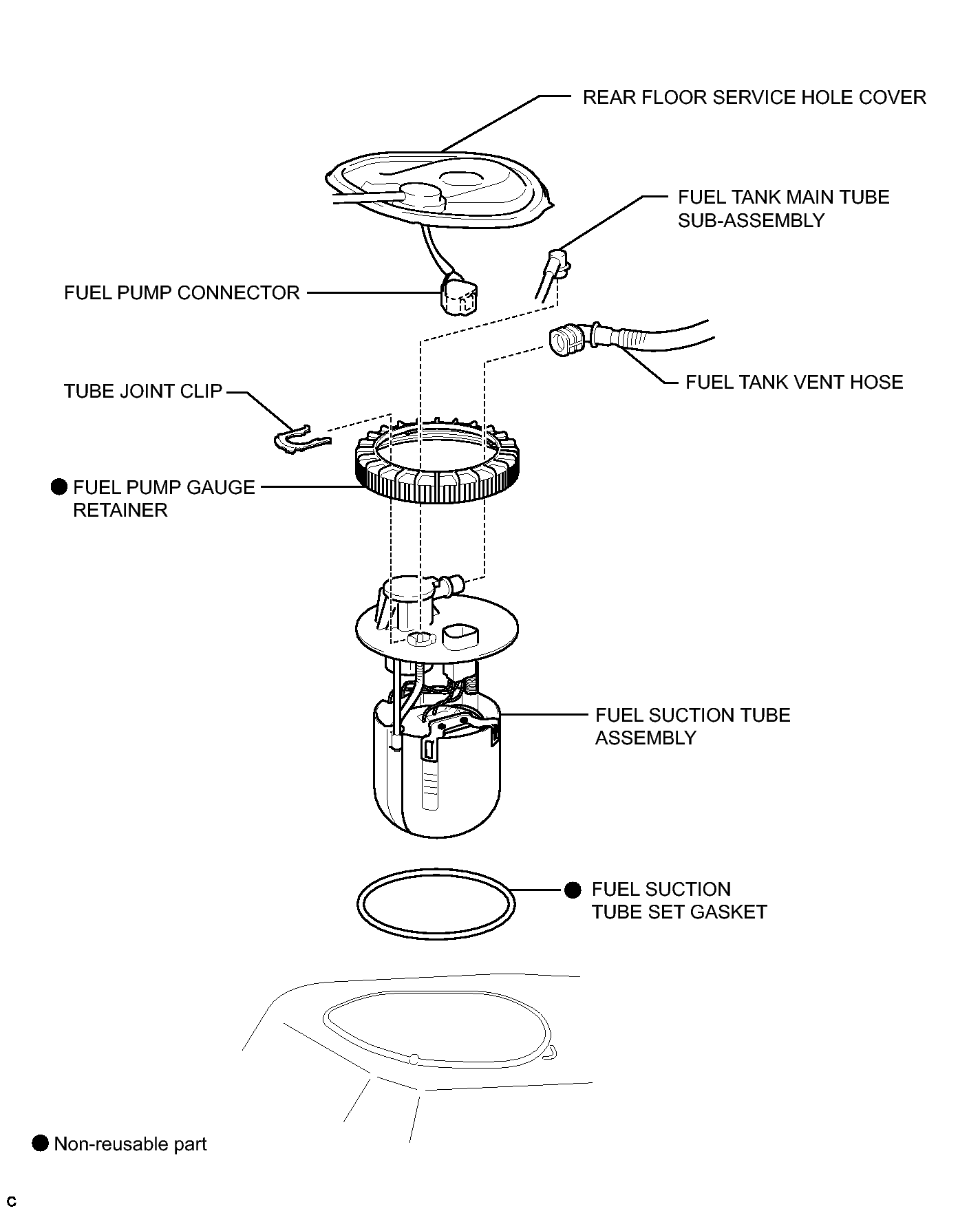

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

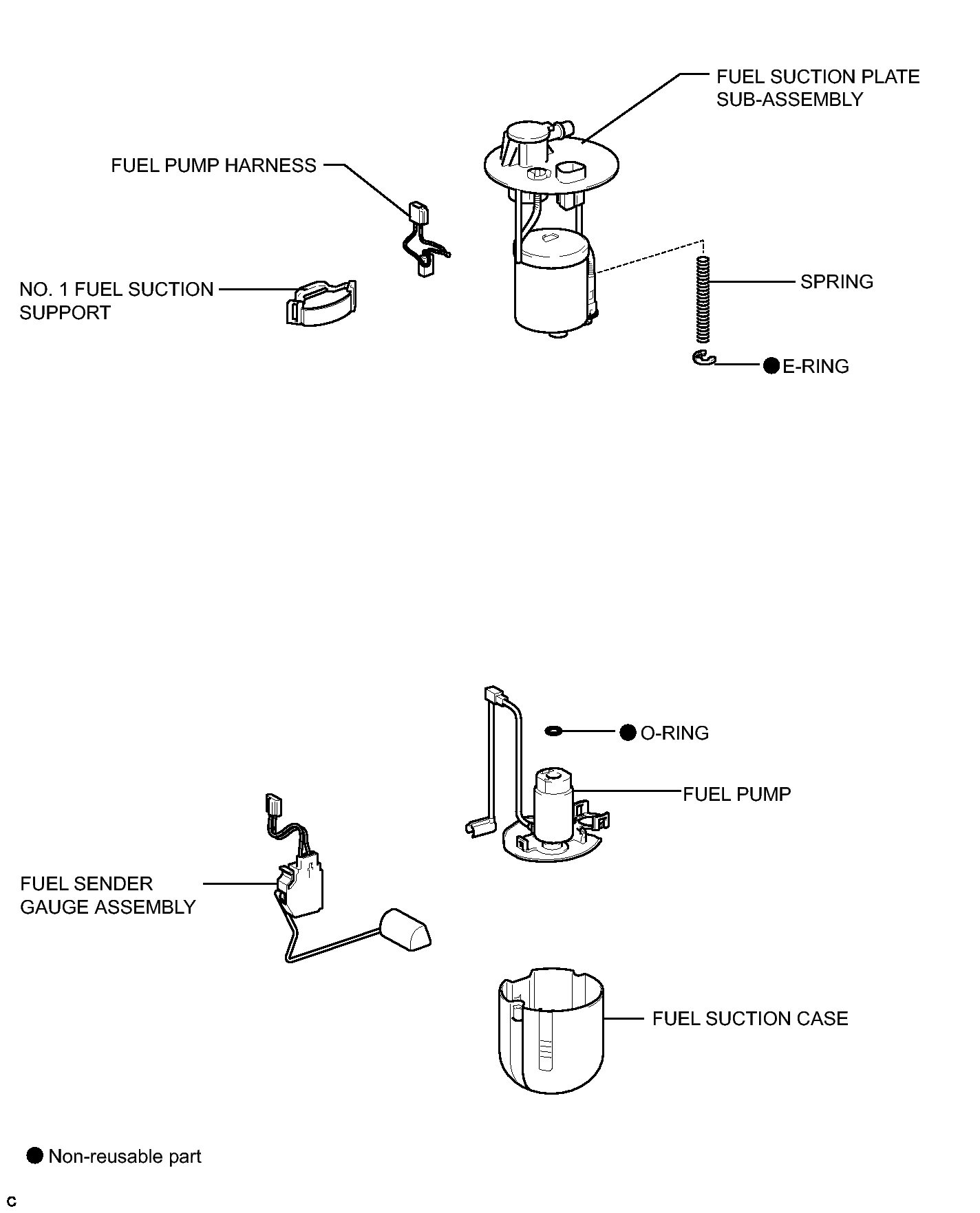

Fig 1: Identifying Fuel Pump Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Fuel Pump Replacement Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
