DTC P2195: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1); DTC P2196: Oxygen (A/F) Sensor Signal Stuck Rich (Bank 1 Sensor 1)
>>
Wiring Diagram
DTC P2195: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1); DTC P2196: Oxygen (A/F) Sensor Signal Stuck Rich (Bank 1 Sensor 1): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

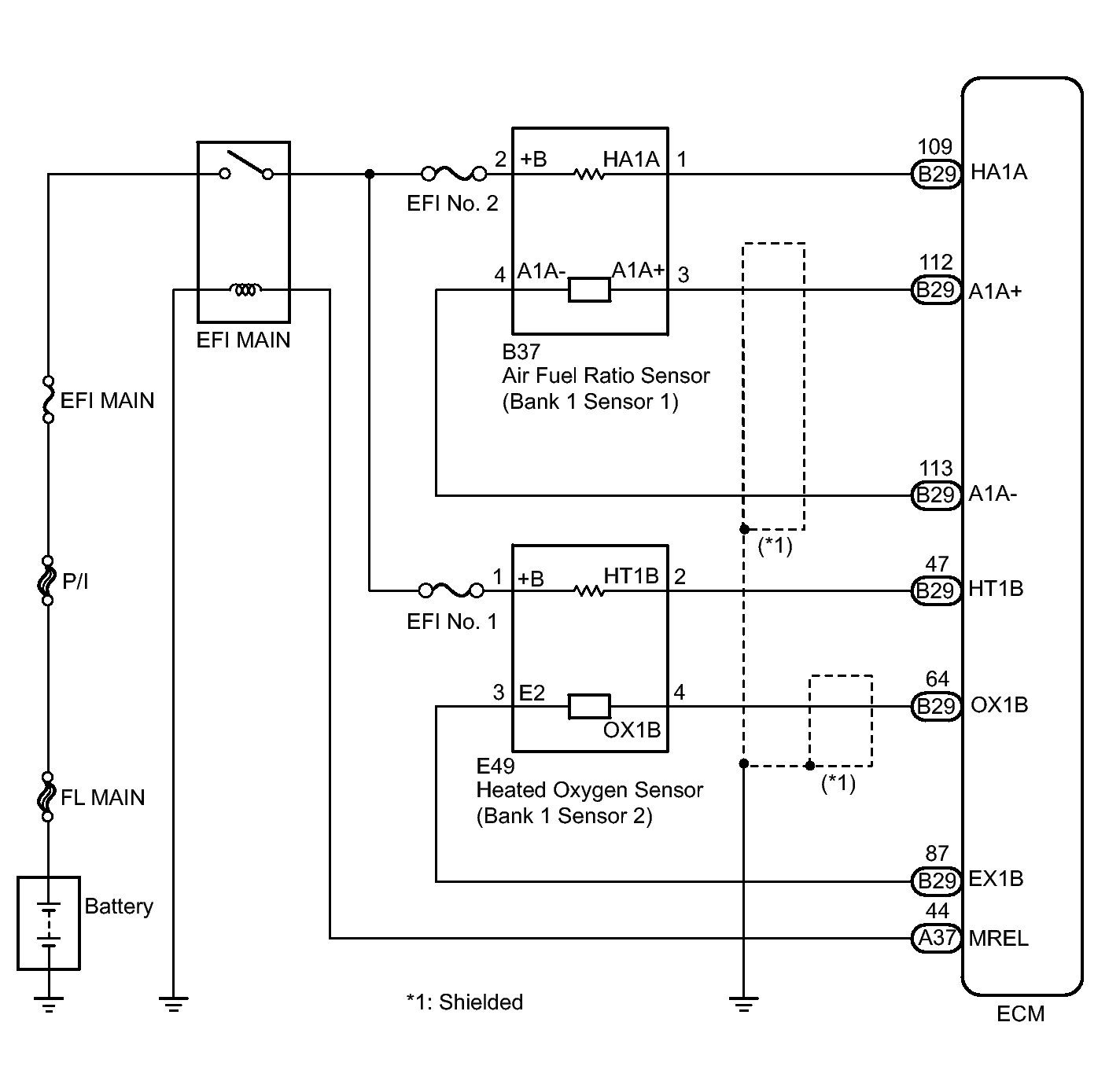

Fig 1: Oxygen (A/F) Sensor Signal Stuck Lean (Bank 1 Sensor 1) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
