Section 20 (Engine Control (SFI) System (2ZR-FE) (Diagnostic Codes (P0441-P2A00) & Symptom Tests))
>>
SFI System
>>
DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High
>>
Wiring Diagram
DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

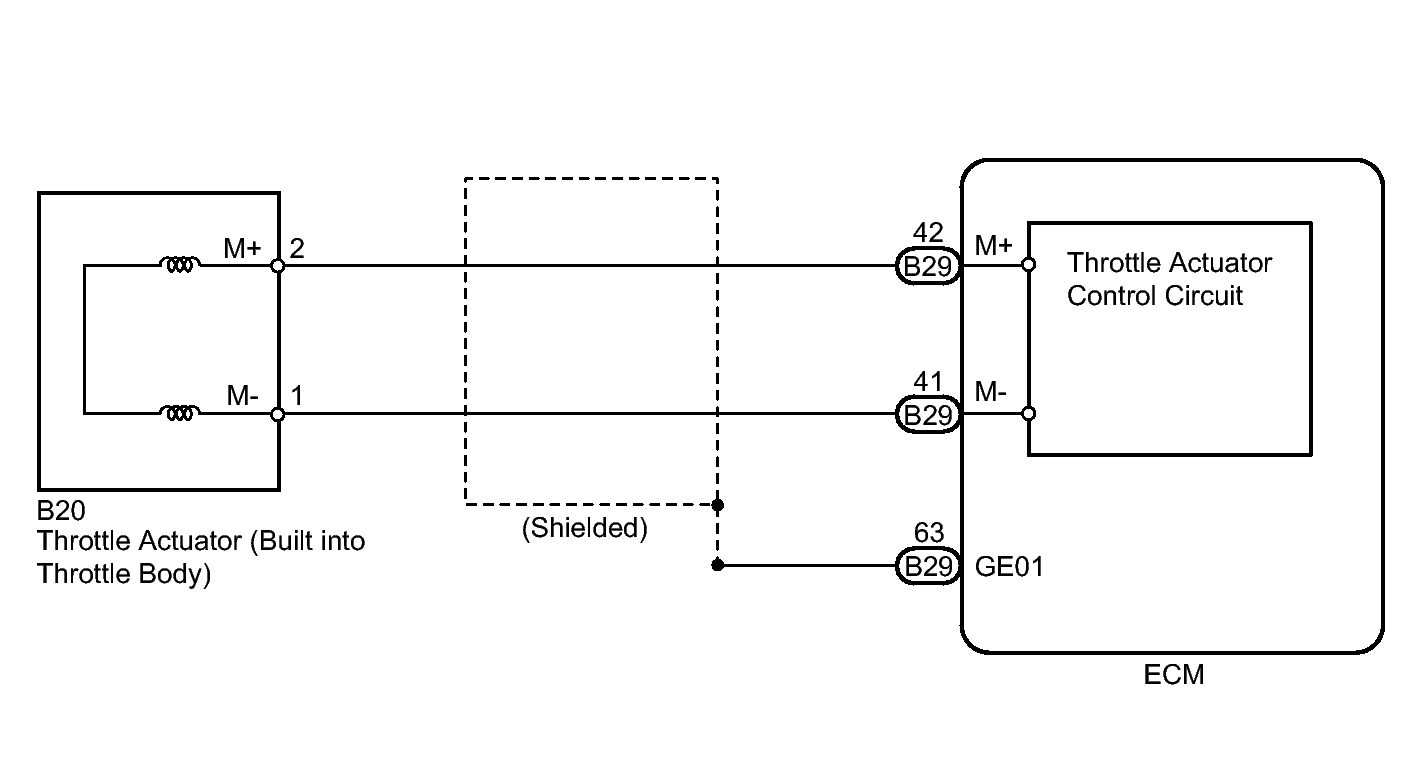

Fig 1: Throttle Actuator - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
