Section 20 (Engine Control (SFI) System (2ZR-FE) (Diagnostic Codes (P0441-P2A00) & Symptom Tests))
>>
SFI System
>>
Circuit Tests
>>
VC Output Circuit
>>
Wiring Diagram
VC Output Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

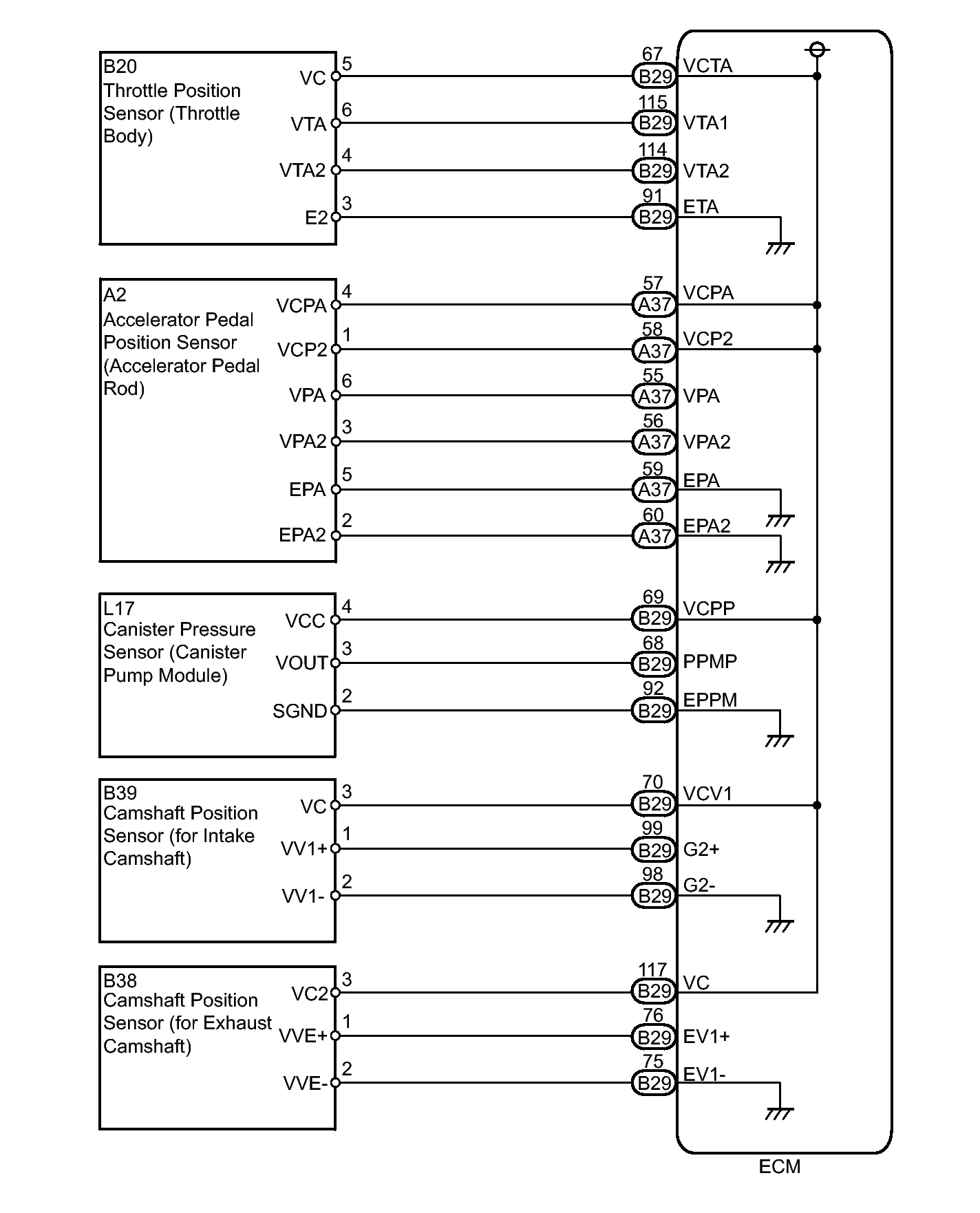

Fig 1: VC Output Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
