Cranking Holding Function Circuit: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. READ VALUE USING TECHSTREAM (STARTER SIGNAL)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream ON.
    4. Enter the following menus: Powertrain / Engine and ECT / Data List / Starter Signal.
    5. Move the shift lever to the P or N position (for automatic transaxle models).
    6. Fully depress the clutch pedal (for manual transaxle models).
    7. Check the result when the ignition switch is turned ON and START positions.

      OK

      Ignition Switch Condition Techstream Display (Starter Signal)
      Ignition switch ON OFF
      START ON

      Result

      Result Proceed to
      NG A
      OK B

    B → See step   17

    A: Go to next step

  2. INSPECT ECM (STSW TERMINAL VOLTAGE)
    1. Disconnect the ECM connector.
      Fig 1: Identifying A37 ECM Connector
      GTY215217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Crank the engine.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A37-14 (STSW) - Body ground Ignition switch ON Below 1 V
      A37-14 (STSW) - Body ground START 9 to 13 V
    4. Reconnect the ECM connector.

      HINT:

      DTCs related to the communication with other computers may be set due to this inspection. Clear those DTCs after inspection.

    NG → See step   14

    OK: Go to next step

  3. INSPECT RELAY (ST RELAY VOLTAGE)
    1. Remove the ST relay from the No. 8 relay block.
      Fig 2: Identifying ST Relay
      GTY233243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever the P or N position (for automatic transaxle models).
    3. Fully depress the clutch pedal (for manual transaxle models).
    4. Crank the engine.
    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      ST relay terminal 1 - Body ground ON Below 1 V
      ST relay terminal 1 - Body ground START 9 to 13 V
    6. Reinstall the ST relay.

      Result

      Result Proceed to
      OK (for automatic transaxle models) A
      OK (for manual transaxle models) B
      NG (for automatic transaxle models) C
      NG (for manual transaxle models) D

    D → See step   10

    C → See step   6

    B → See step   5

    A: Go to next step

  4. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)
    1. Disconnect the ECM connector.

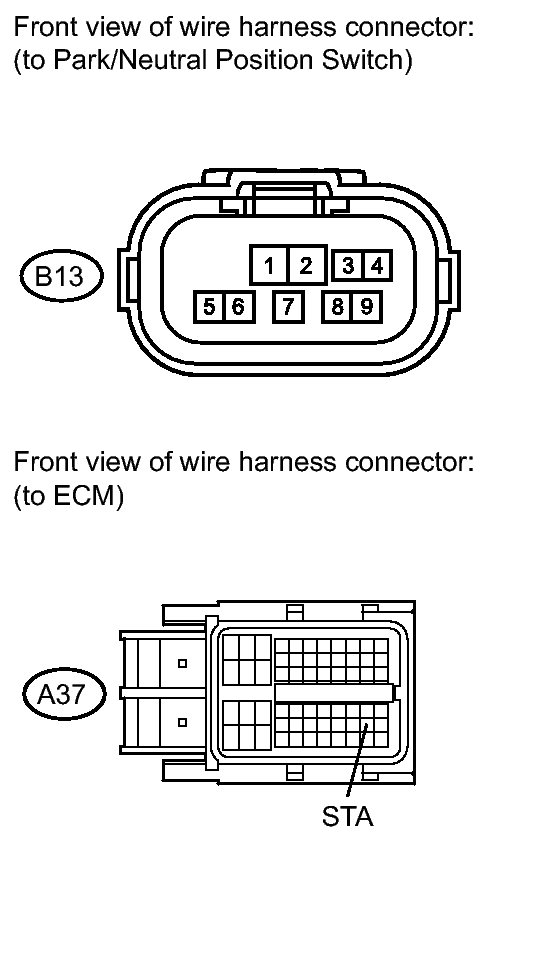

      Fig 3: Identifying ECM Connector And Park/Neutral Position Switch Assembly Connector
      GTY238004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the park/neutral position switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for open)

      Tester Connection Condition Specified Condition
      B13-5 - A37-48(STA) Always Below 1 Ω

      Standard Resistance (Check for short)

      Tester Connection Condition Specified Condition
      B13-5 or A37-48(STA) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the park/neutral position switch assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)

    OK → See step   22

  5. CHECK HARNESS AND CONNECTOR (CLUTCH PEDAL SWITCH - ECM)
    1. Disconnect the ECM connector.
      Fig 4: Identifying Clutch Pedal Switch Connector Terminal
      GTY238006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the clutch pedal switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      A4-1 - A37-48 (STA) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      A4-1 or A37-48 (STA) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the clutch pedal switch connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (CLUTCH PEDAL SWITCH - ECM)

    OK → See step   22

  6. INSPECT PARK/NEUTRAL POSITION SWITCH
    1. Inspect the park/neutral position switch. Refer to INSPECTION .

    NG → See step   23

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH ASSEMBLY - PARK/NEUTRAL POSITION SWITCH)
    1. Disconnect the park/neutral position switch connector.

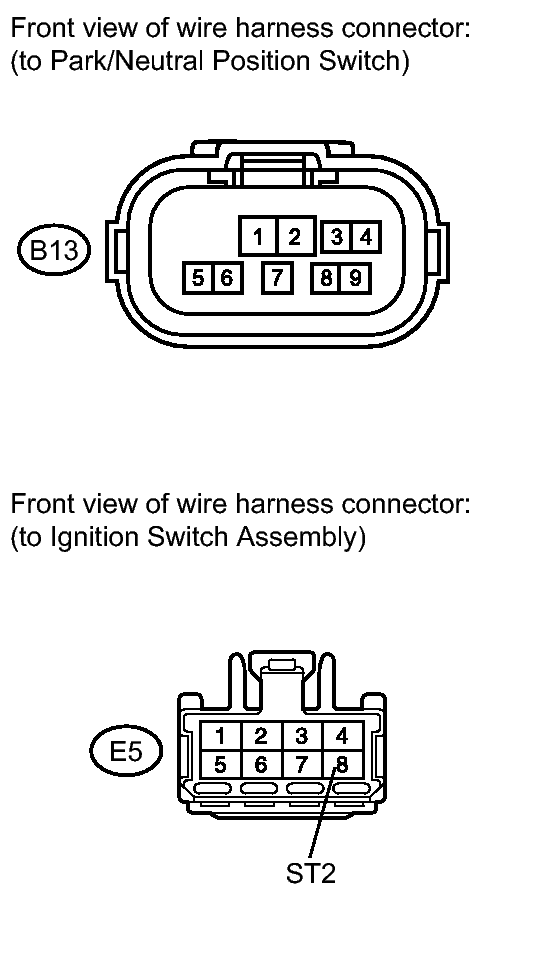

      Fig 5: Identifying Park/Neutral Position Switch Connector And Ignition Switch Assembly Connector
      GTY232554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the ignition switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) (+) - B13-4 (-) Always Below 1 Ω
      E5-8 (ST2) (-) - B13-4 (+) Always 10 kΩ or higher

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) or B13-4 - Body ground Always 10 kΩ or higher

      HINT:

      When measuring the resistance, it is necessary to reverse the positive (+) and negative (-) tester probes because there is a diode in the wire harness.

    4. Reconnect the park/neutral position switch connector.
    5. Reconnect the ignition switch assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - PARK/NEUTRAL POSITION SWITCH)

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH ASSEMBLY - ECM)
    1. Disconnect the ECM connector.
      Fig 6: Identifying ECM Connector And Ignition Switch Assembly Connector
      GTY238021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the ignition switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) - B29-52 (STAR) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) or B29-52 (STAR) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the ignition switch assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - ECM)

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH)
    1. Disconnect the park/neutral position switch connector.

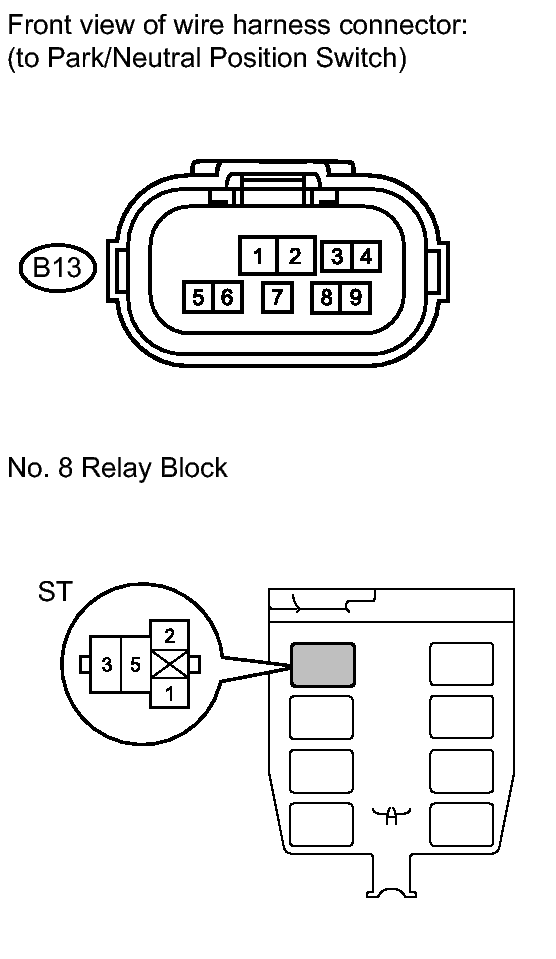

      Fig 7: Identifying Park/Neutral Position Switch Connector And ST Relay
      GTY238408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the ST relay from the No. 8 relay block.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      ST relay terminal 1 - B13-5 Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      ST relay terminal 1 or B13-5 - Body ground Always 10 kΩ or higher
    4. Reconnect the park/neutral position switch connector.
    5. Reinstall the ST relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH)

    OK → See step   22

  10. INSPECT CLUTCH PEDAL SWITCH
    1. Inspect the clutch pedal switch. Refer to INSPECTION .

    NG → See step   24

    OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH ASSEMBLY - CLUTCH PEDAL SWITCH)
    1. Disconnect the clutch pedal switch connector.
      Fig 8: Identifying Clutch Pedal Switch Connector And Ignition Switch Assembly Connector
      GTY234693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the ignition switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) (+) - A4-2 (-) Always Below 1 Ω
      E5-8 (ST2) (-) - A4-2 (+) Always 10 kΩ or higher

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) or A4-2 - Body ground Always 10 kΩ or higher

      HINT:

      When measuring the resistance, it is necessary to reverse the positive (+) and negative (-) tester probes because there is a diode in the wire harness.

    4. Reconnect the clutch pedal switch connector.
    5. Reconnect the ignition switch assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - CLUTCH PEDAL SWITCH)

    OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH ASSEMBLY - ECM)
    1. Disconnect the ECM connector.
      Fig 9: Identifying ECM Connector And Ignition Switch Assembly Connector
      GTY238022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the ignition switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) - B29-52 (STAR) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E5-8 (ST2) or B29-52 (STAR) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the ignition switch assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - ECM)

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (ST RELAY - CLUTCH PEDAL SWITCH)
    1. Disconnect the clutch pedal switch connector.
      Fig 10: Identifying Clutch Pedal Switch Connector And ST Relay
      GTY238407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the ST relay from the No. 8 relay block.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      ST relay terminal 1 - A4-1 Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      ST relay terminal 1 or A4-1 - Body ground Always 10 kΩ or higher
    4. Reconnect the clutch pedal switch connector.
    5. Reinstall the ST relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - CLUTCH PEDAL SWITCH)

    OK → See step   25

  14. INSPECT FUSE (AM2 NO. 2 FUSE)
    1. Remove the AM2 No. 2 fuse from the engine room relay block.
      Fig 11: Identifying AM2 No. 2 Fuse
      GTY194686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AM2 No. 2 fuse Always Below 1 Ω
    3. Reinstall the AM2 No. 2 fuse.

    NG → CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    OK: Go to next step

  15. INSPECT IGNITION SWITCH ASSEMBLY
    1. Inspect the ignition switch assembly. Refer to INSPECTION .

    NG → See step   26

    OK: Go to next step

  16. CHECK HARNESS AND CONNECTOR (AM2 TERMINAL VOLTAGE)
    1. Disconnect the ignition switch assembly connector.
      Fig 12: Identifying E5 Ignition Switch Assembly Connector
      GTY235249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E5-7 (AM2) - Body ground Always 11 to 14 V
    3. Reconnect the ignition switch assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - IGNITION SWITCH ASSEMBLY)

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - ECM)

  17. INSPECT ST RELAY (VOLTAGE)
    1. Remove the ST relay from the No. 8 relay block.
      Fig 13: Identifying ST Relay
      GTY233243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to the P or N position (for automatic transaxle models).
    3. Fully depress the clutch pedal (for manual transaxle models).
    4. Crank the engine.
    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      ST relay terminal 1 - Body ground ON Below 1 V
      ST relay terminals 1 - Body ground START 9 to 13 V
    6. Reinstall the ST relay.

      Result

      Result Proceed to
      OK A
      NG (for automatic transaxle models) B
      NG (for manual transaxle models) C

    C → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - CLUTCH PEDAL SWITCH)

    B → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH)

    A: Go to next step

  18. INSPECT RELAY (ST RELAY)
    1. Remove the ST relay from No. 8 relay block.
      Fig 14: Identifying Relay Test Terminals
      GTY102844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3-5 Always 10kΩ or higher
      3-5 Apply battery voltage between terminal 1 and 2 Below 1 Ω
    3. Reinstall the ST relay.

    NG → REPLACE RELAY (ST RELAY)

    OK: Go to next step

  19. INSPECT ST RELAY (VOLTAGE)
    1. Remove the ST relay from the No. 8 relay block.
      Fig 15: Identifying ST Relay
      GTY233243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      ST relay terminal 5 - Body ground Ignition switch ON 11 to 14 V
    3. Reinstall the ST relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - ST RELAY)

    OK: Go to next step

  20. CHECK HARNESS AND CONNECTOR (ST RELAY - BODY GROUND)
    1. Remove the ST relay from the No. 8 relay block.
      Fig 16: Identifying ST Relay
      GTY233243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      ST relay terminal 2 - Body ground Always Below 1 Ω
    3. Reinstall the ST relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - BODY GROUND)

    OK: Go to next step

  21. INSPECT STARTER ASSEMBLY
    1. Inspect the starter assembly. Refer to INSPECTION .

    NG → See step   27

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STARTER - ST RELAY)

  22. REPLACE ECM. Refer to  REMOVAL
  23. REPLACE PARK/NEUTRAL POSITION SWITCH. Refer to  REMOVAL
  24. REPLACE CLUTCH PEDAL SWITCH. Refer to  REMOVAL
  25. REPLACE ECM. Refer to  REMOVAL
  26. REPLACE IGNITION SWITCH ASSEMBLY. Refer to  REMOVAL
  27. REPLACE STARTER ASSEMBLY. Refer to  REMOVAL
scientia non olet · About LEMON Manuals
