Clutch Master Cylinder: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

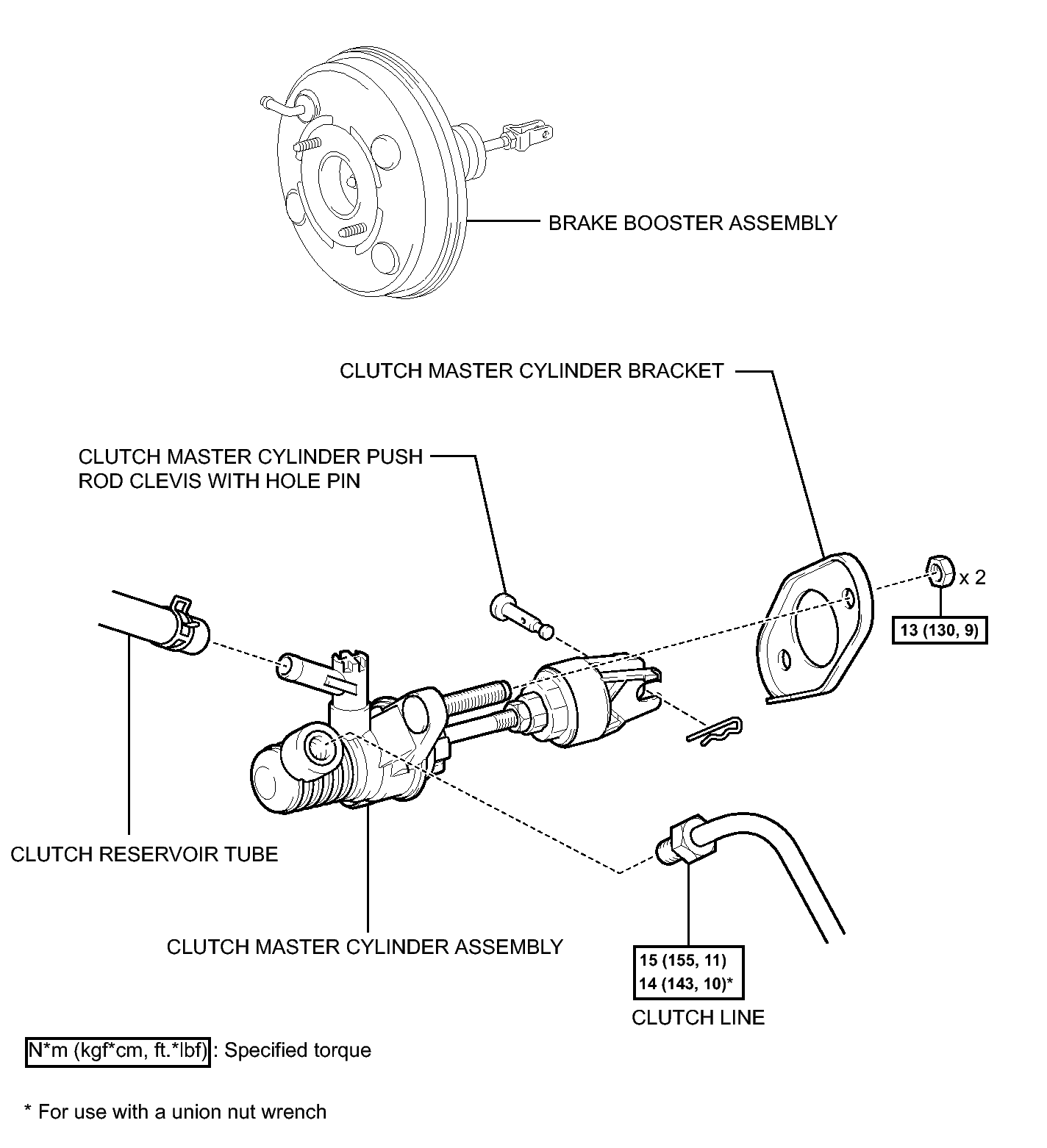

Fig 1: Identifying Clutch Master Cylinder Replacement Components With Torque Specifications
GTY245326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
