CLUTCH UNIT (for E351): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

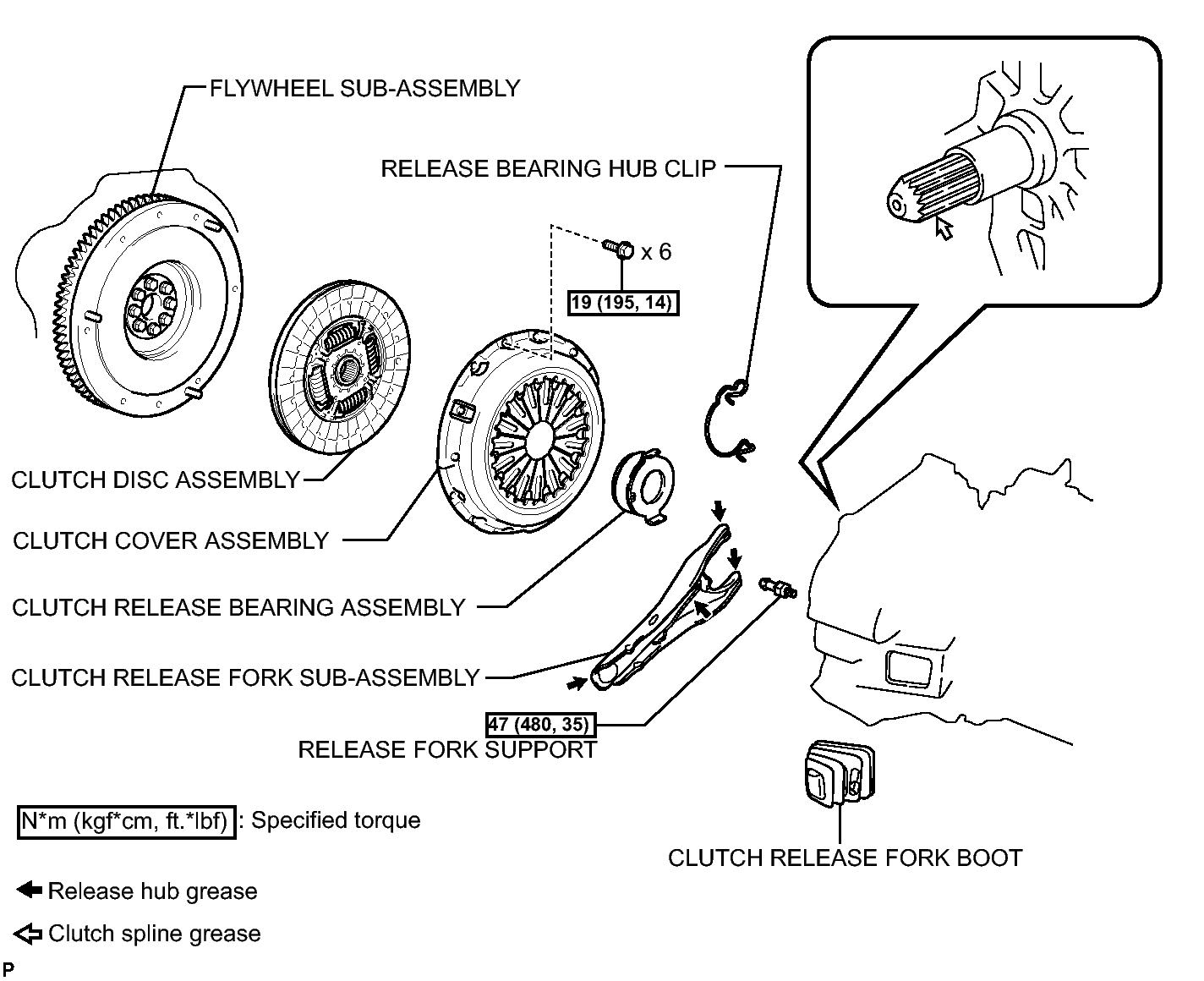

Fig 1: Identifying Clutch Unit (For E351) Replacement Components With Torque Specifications
GTY228443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
