CLUTCH RELEASE CYLINDER (for E351): Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

REMOVE RELEASE CYLINDER BLEEDER PLUG
1. Remove the bleeder plug from the cylinder body.
2. Remove the bleeder plug cap from the bleeder plug.
REMOVE CLUTCH RELEASE CYLINDER KIT

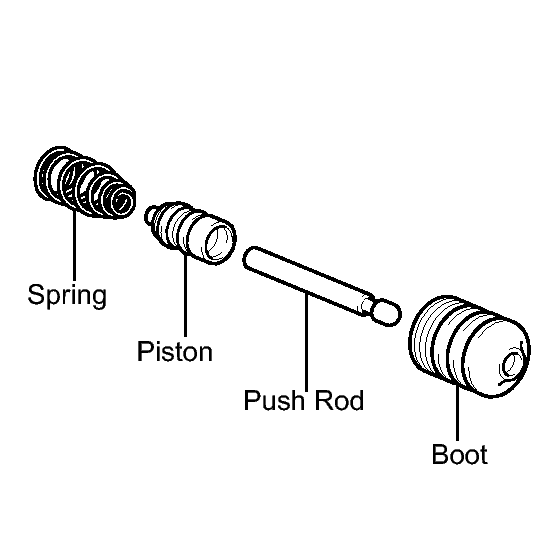

Fig 1: Identifying Boot, Push Rod, Piston And Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the boot from the cylinder body.
2. Remove the push rod from the cylinder body.
3. Remove the piston and spring from the cylinder body.
  NOTE:
  Do not damage the inside of the cylinder body.
