Section 18 (Clutch (Service Information))
>>
CLUTCH RELEASE CYLINDER (for E351)
>>
Components
>>
Illustration
CLUTCH RELEASE CYLINDER (for E351): Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

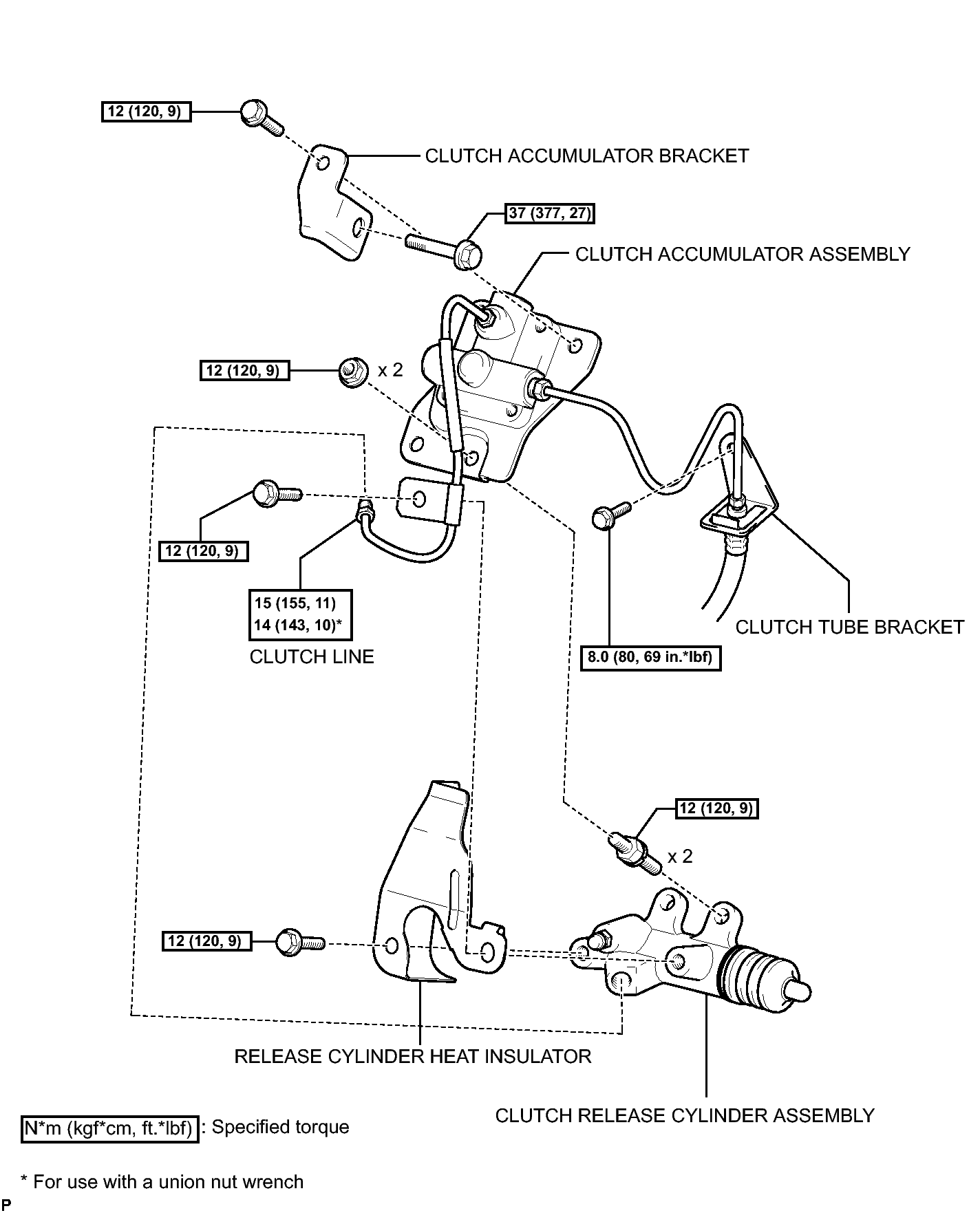

Fig 1: Identifying Clutch Release Cylinder (For E351) Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

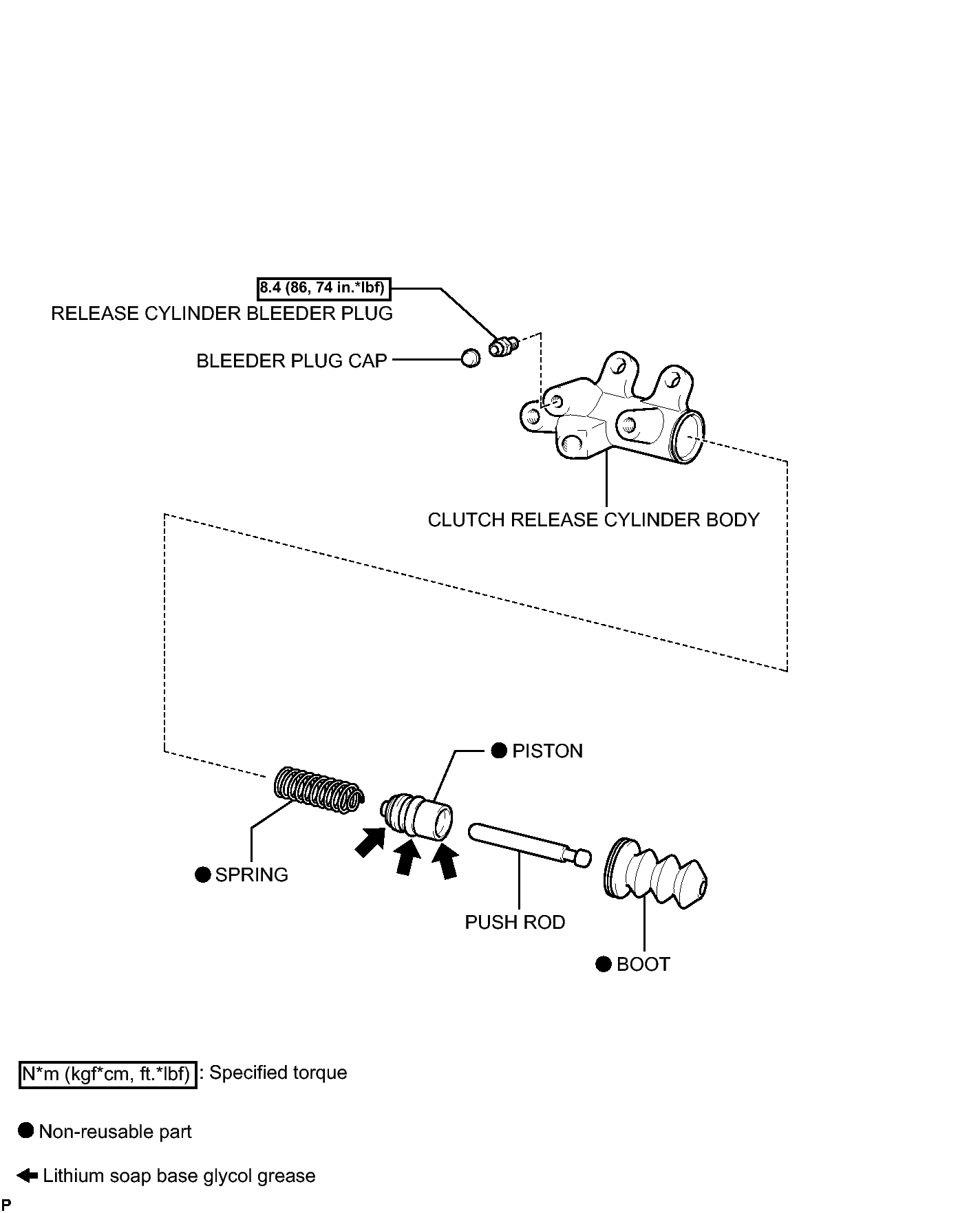

Fig 1: Identifying Clutch Release Cylinder (For E351) Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
