CLUTCH RELEASE CYLINDER (for C59): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

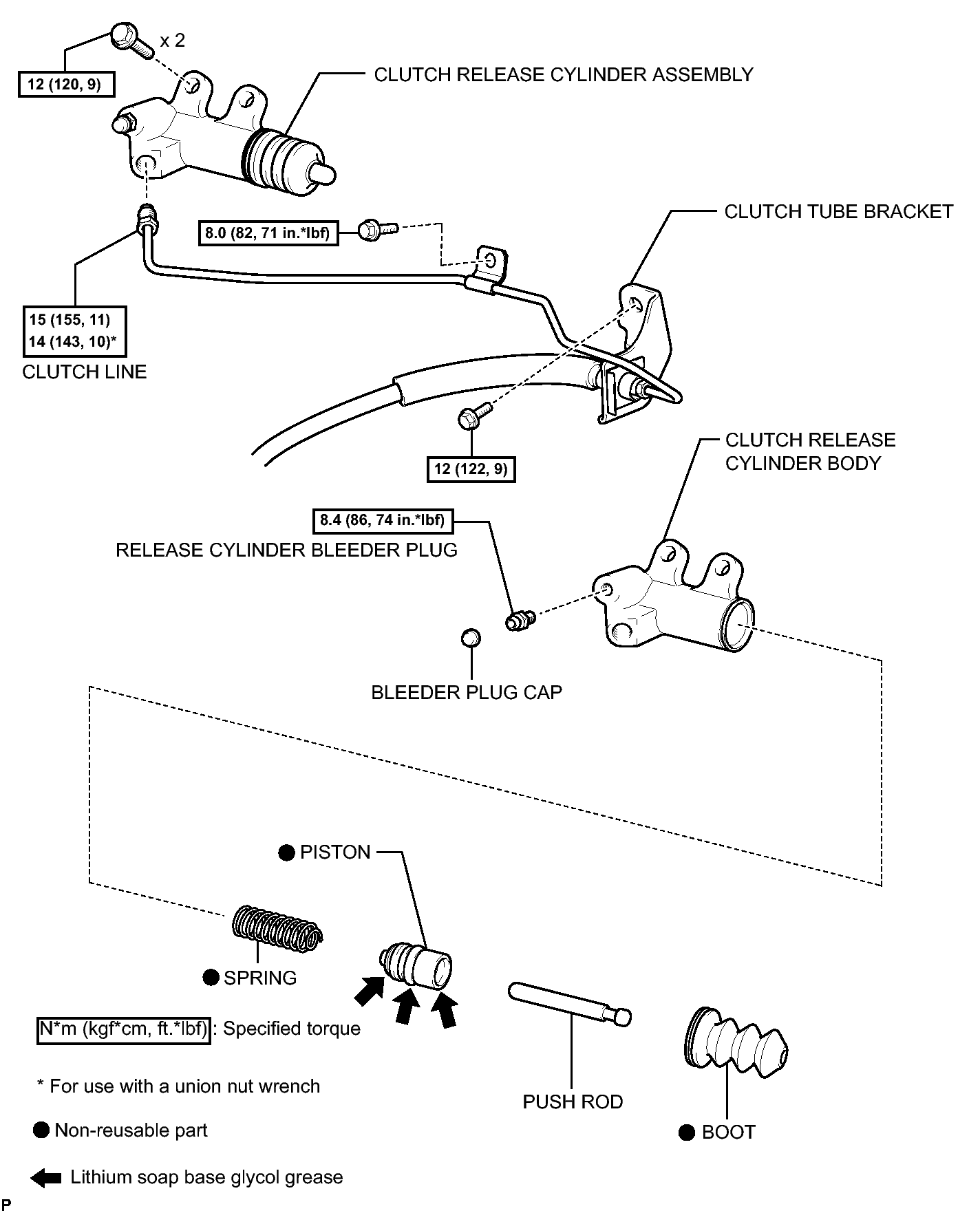

Fig 1: Identifying Clutch Release Cylinder (For C59) Replacement Components With Torque Specifications
GTY205019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
