Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

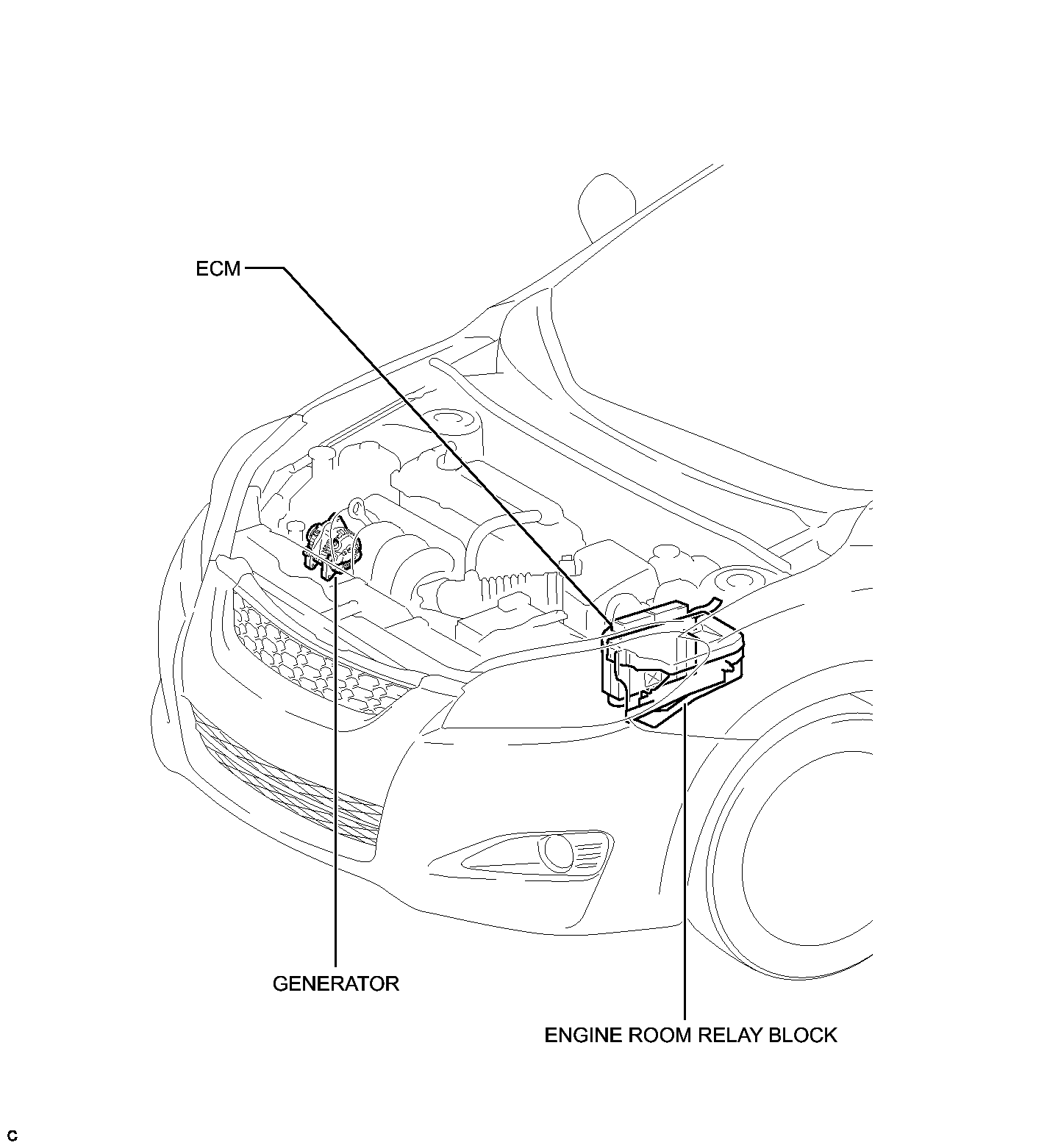

Fig 1: Identifying Charging System Parts Location (1 Of 2)
GTY212505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

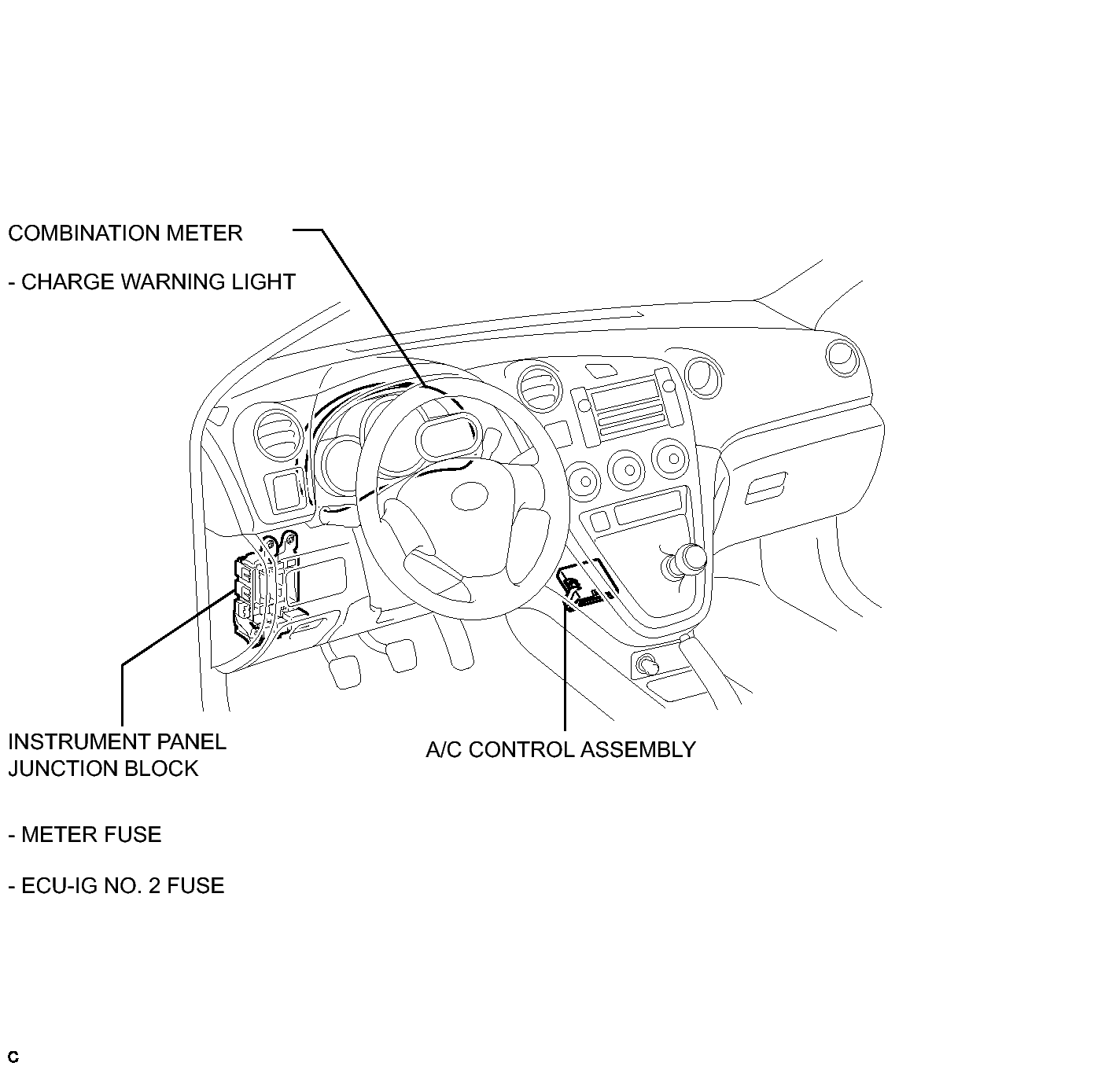

Fig 1: Identifying Charging System Parts Location (2 Of 2)
GTY238375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
