Rear Crankshaft Oil Seal: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
HINT:

Refer to REMOVAL .
REMOVE MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle)
HINT:

Refer to REMOVAL for C59.
REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)
HINT:

Refer to REMOVAL for U341E.
REMOVE CLUTCH COVER ASSEMBLY (for Manual Transaxle) . Refer to REMOVAL - Step 6
REMOVE CLUTCH DISC ASSEMBLY (for Manual Transaxle) . Refer to REMOVAL - Step 7
REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)
1. Using SST, hold the crankshaft.

  Fig 1: Removing Crankshaft Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09213-58014
    - 91551-80840
  - SST: 09330-00021
  NOTE:
  Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.
2. Remove the 8 bolts and flywheel.

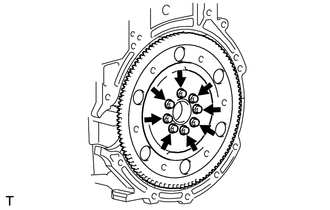

  Fig 2: Locating Flywheel Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)
1. Using SST, hold the crankshaft.

  Fig 3: Removing Crankshaft Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09213-58014
    - 91551-80840
  - SST: 09330-00021
  NOTE:
  Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.
2. Remove the 8 bolts, rear spacer, drive plate and front spacer.

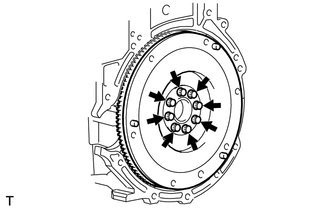

  Fig 4: View Of Drive Plate And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR ENGINE OIL SEAL
1. Using a knife, cut off the lip of the oil seal.

  Fig 5: Identifying Rear Engine Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver with its tip wrapped with tape, pry out the oil seal.
  NOTE:
  After removing, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.
