Rear Crankshaft Oil Seal: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL REAR ENGINE OIL SEAL
1. Apply MP grease to the lip of a new oil seal.
  NOTE:
  Keep the lip free from foreign matter.
2. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

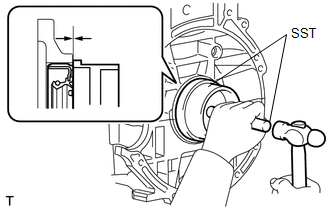

  Fig 1: View Of Rear Engine Oil Seal Installation Procedure
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09223-15030
  - SST: 09950-70010
    - 09951-07100
  NOTE:
  - Wipe any extra grease off the crankshaft.
  - Do not tap the oil seal at an angle.
INSTALL FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)
1. Using SST, hold the crankshaft.

  Fig 2: Removing Crankshaft Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09213-58014
    - 91551-80840
  - SST: 09330-00021
  NOTE:
  Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.
2. Apply adhesive to 2 or 3 threads of the bolt ends.

  Fig 3: Applying Adhesive To End Or Threads Of Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Adhesive

  Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
3. Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.

  Fig 4: Locating Flywheel And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
4. Mark the top of the bolts with paint.

  Fig 5: Identifying Paint Marks On Upper Edge Of Bolt Heads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Retighten the 8 bolts an additional 90° in the same sequence.
6. Check that the paint marks are now at a 90° angle to the top.
7. Check that the crankshaft turns smoothly.
INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)
1. Using SST, hold the crankshaft.

  Fig 6: Removing Crankshaft Pulley Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09213-58014
    - 91551-80840
  - SST: 09330-00021
  NOTE:
  Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.
2. Clean the bolts and the bolt holes.
3. Apply a few drops of adhesive to 2 or 3 threads of the 8 bolts tip.

  Fig 7: Applying Adhesive To End Or Threads Of Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Adhesive

  Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
4. Install the front drive plate spacer.
  HINT:

  Front spacer is reversible.
5. Install the drive plate and rear drive plate spacer onto the crankshaft.

  Fig 8: View Of Drive Plate And Rear Drive Plate Spacer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.

  Fig 9: Identifying Drive Plate Bolts Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)
INSTALL CLUTCH DISC ASSEMBLY (for Manual Transaxle) . Refer to INSTALLATION - Step 1
INSTALL CLUTCH COVER ASSEMBLY (for Manual Transaxle) . Refer to INSTALLATION - Step 2
INSPECT AND ADJUST CLUTCH COVER ASSEMBLY (for Manual Transaxle) . Refer to INSTALLATION - Step 3
INSTALL MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle)
HINT:

Refer to INSTALLATION for C59.
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)
HINT:

Refer to INSTALLATION for U341E.
INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
HINT:

Refer to INSTALLATION .
