Section 13 (Engine Mechanical (2ZR-FE) (Service Information)): Camshaft: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

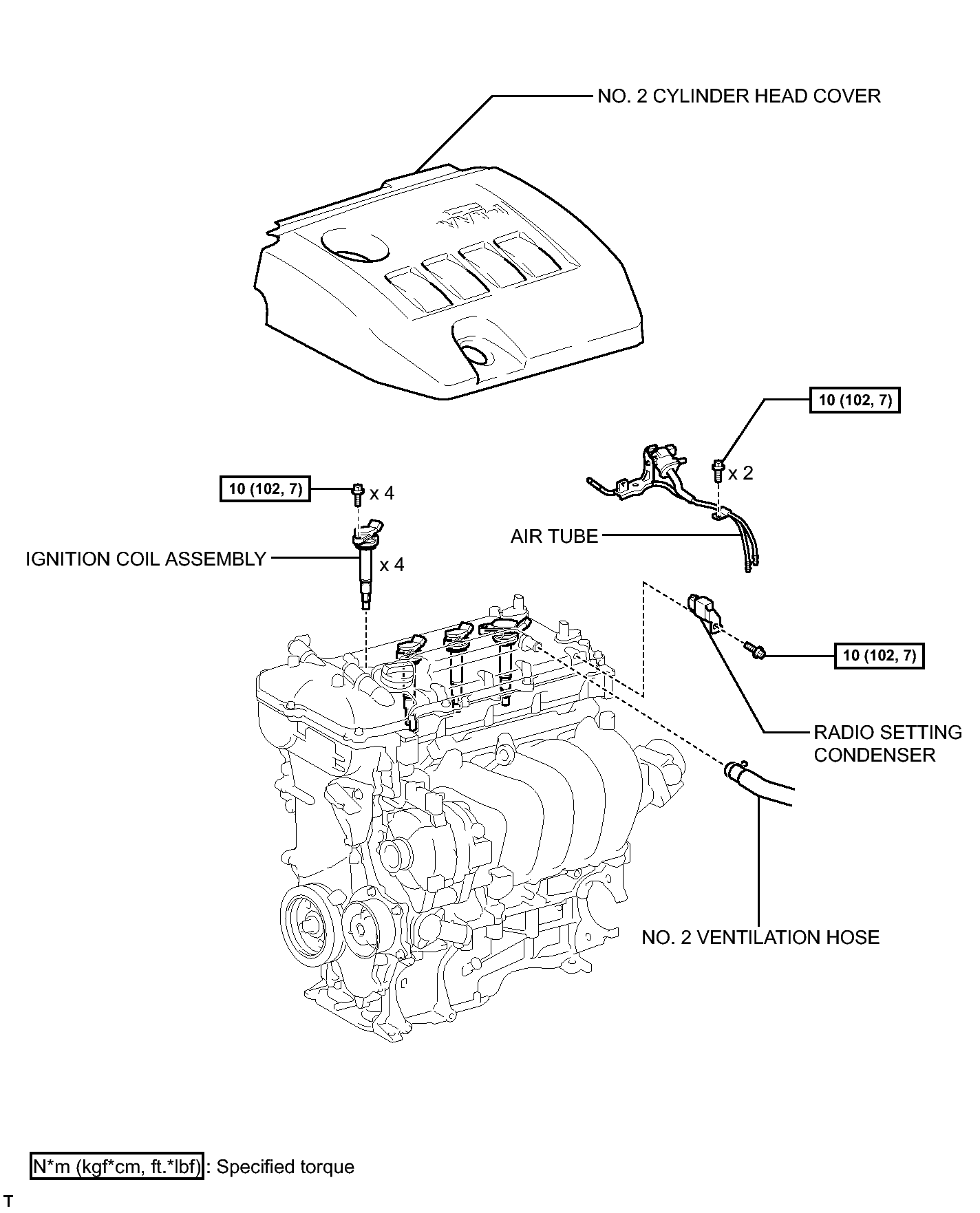

Fig 1: Identifying Camshaft Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

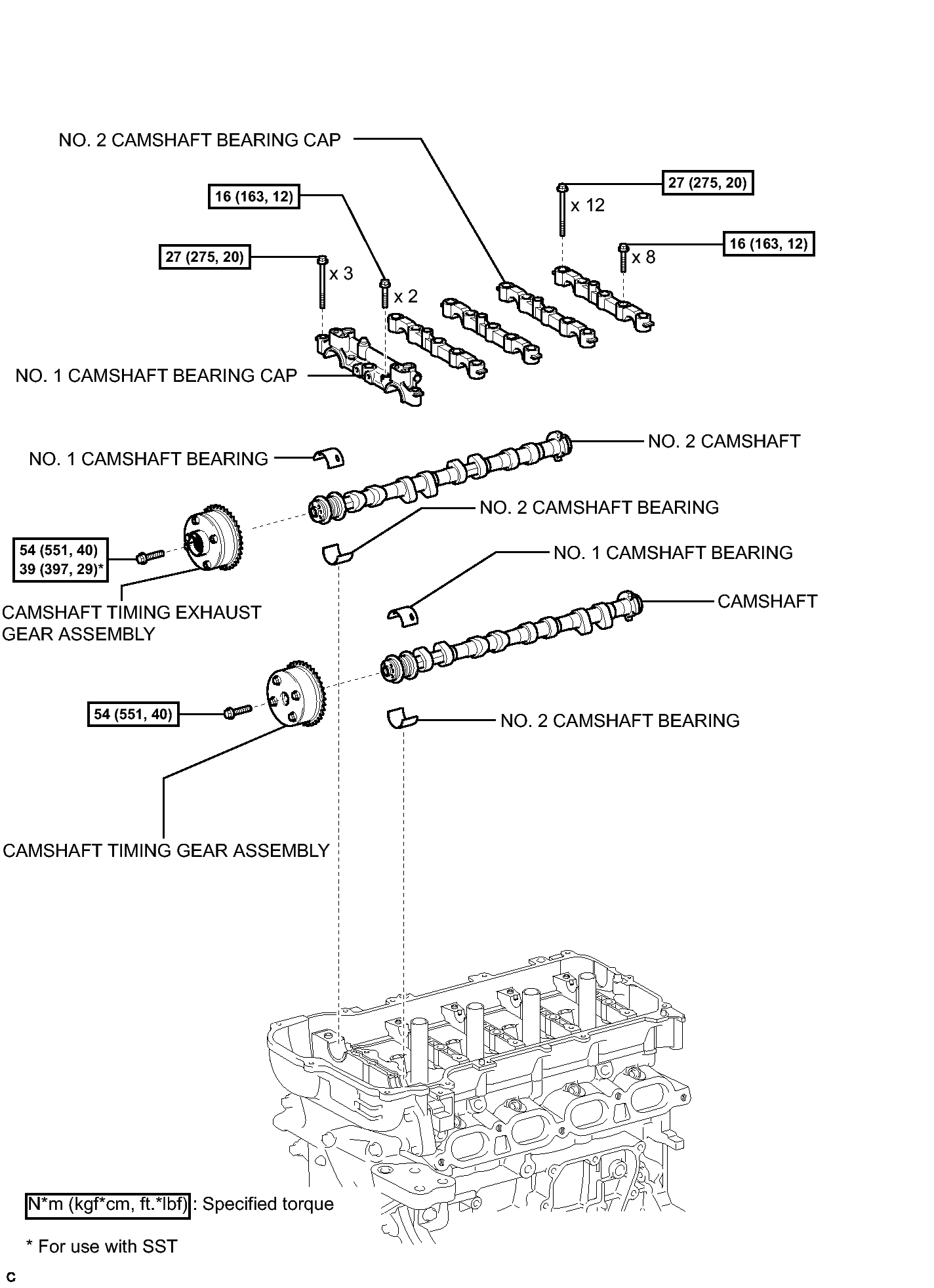

Fig 1: Identifying Camshaft Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

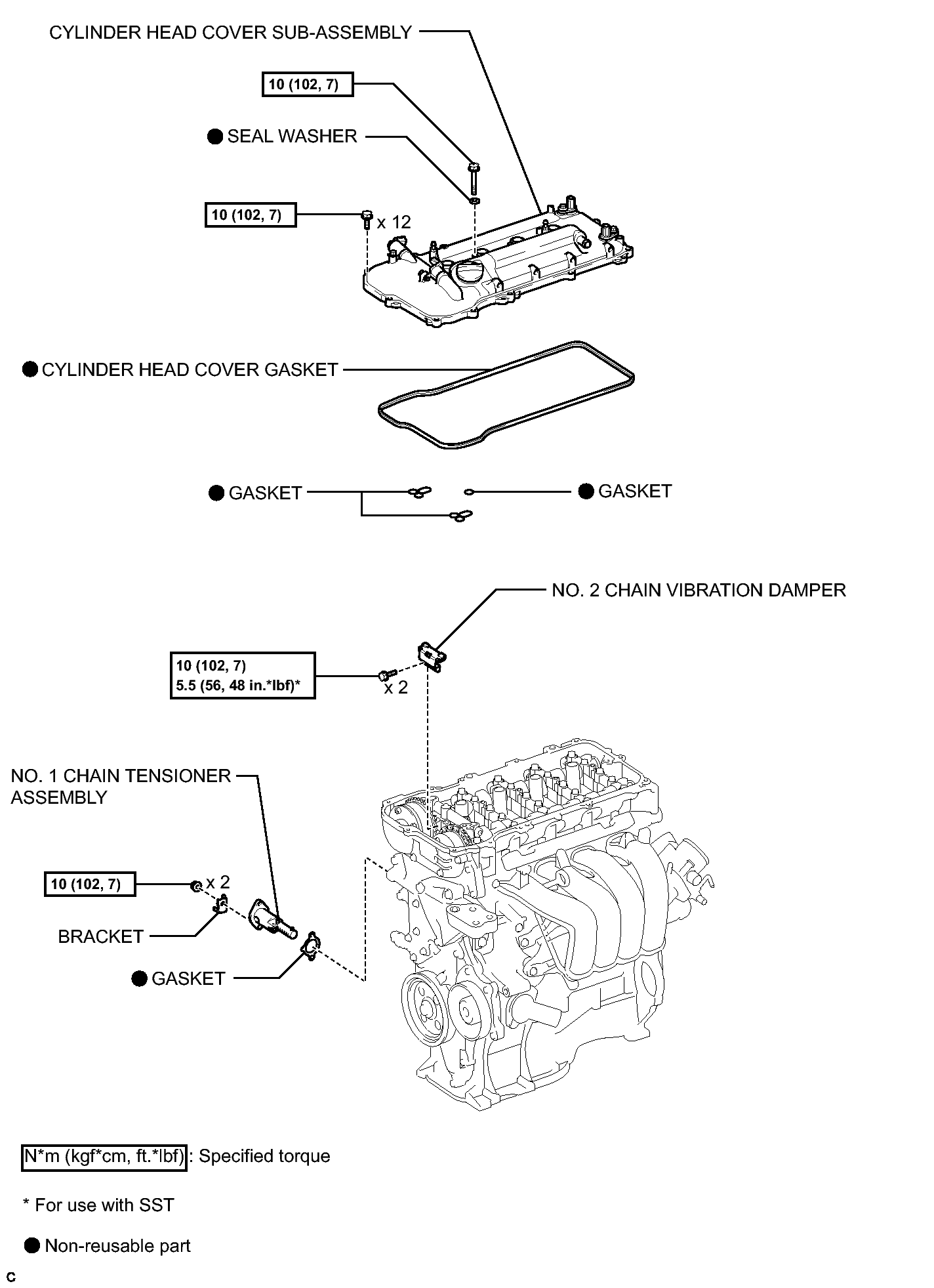

Fig 1: Identifying Camshaft Replacement Components With Torque Specifications (3 Of 4)

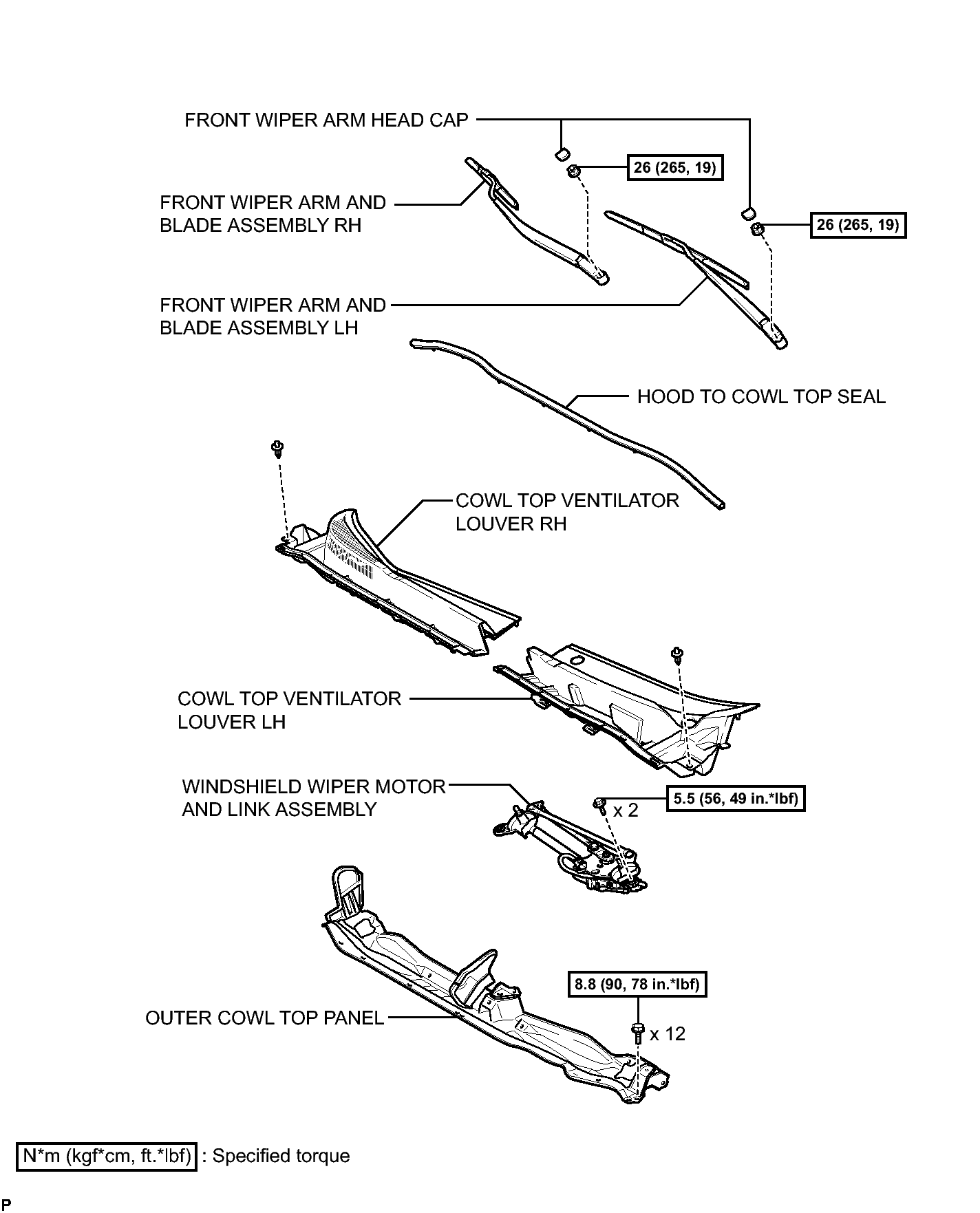

Fig 1: Identifying Camshaft Replacement Components With Torque Specifications (4 Of 4)
