Speed Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

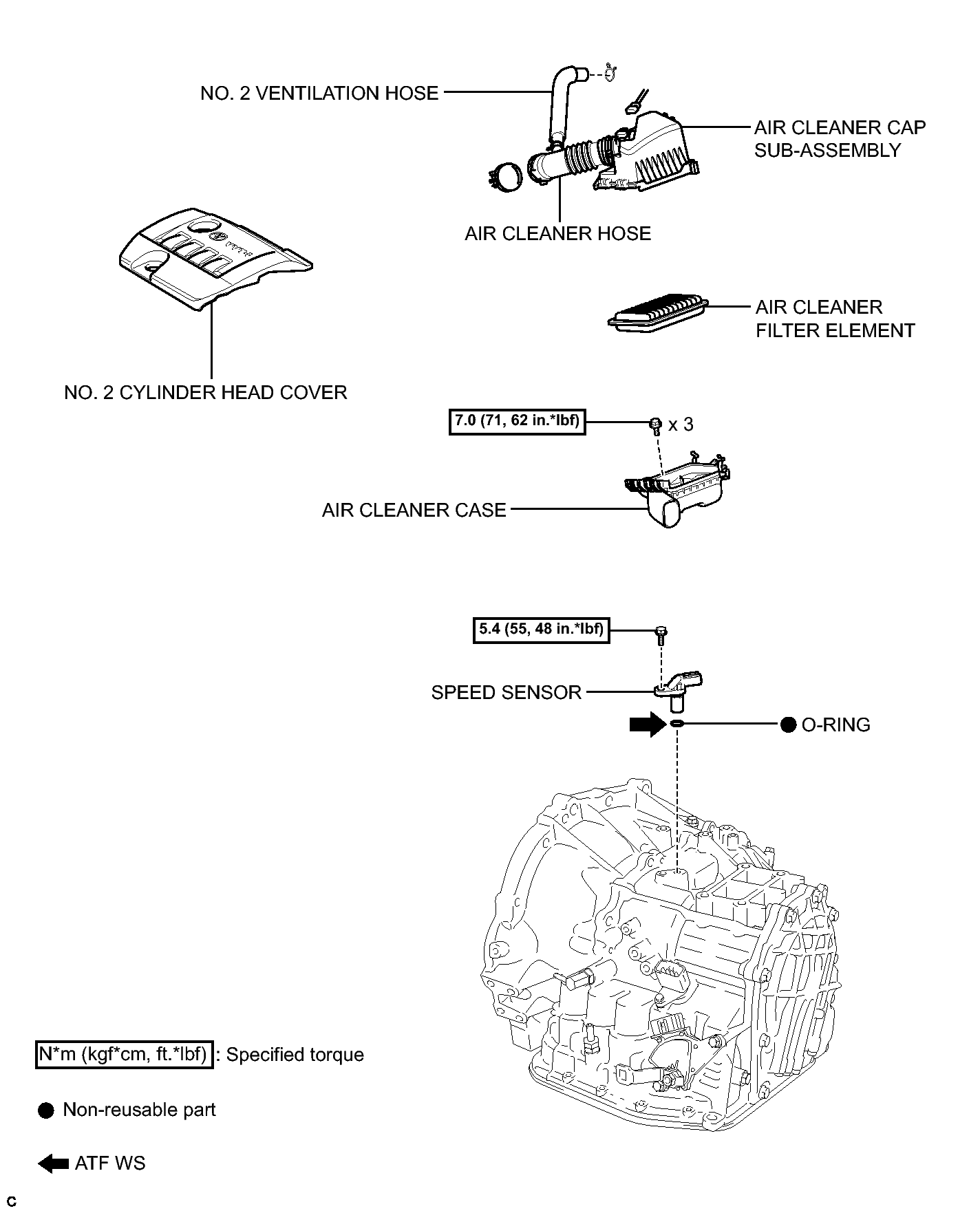

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications
GTY245291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
