Section 11 (Automatic Transmission - U341E - (Service Information))
>>
Shift Lever
>>
Components
>>
Illustration
Shift Lever: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

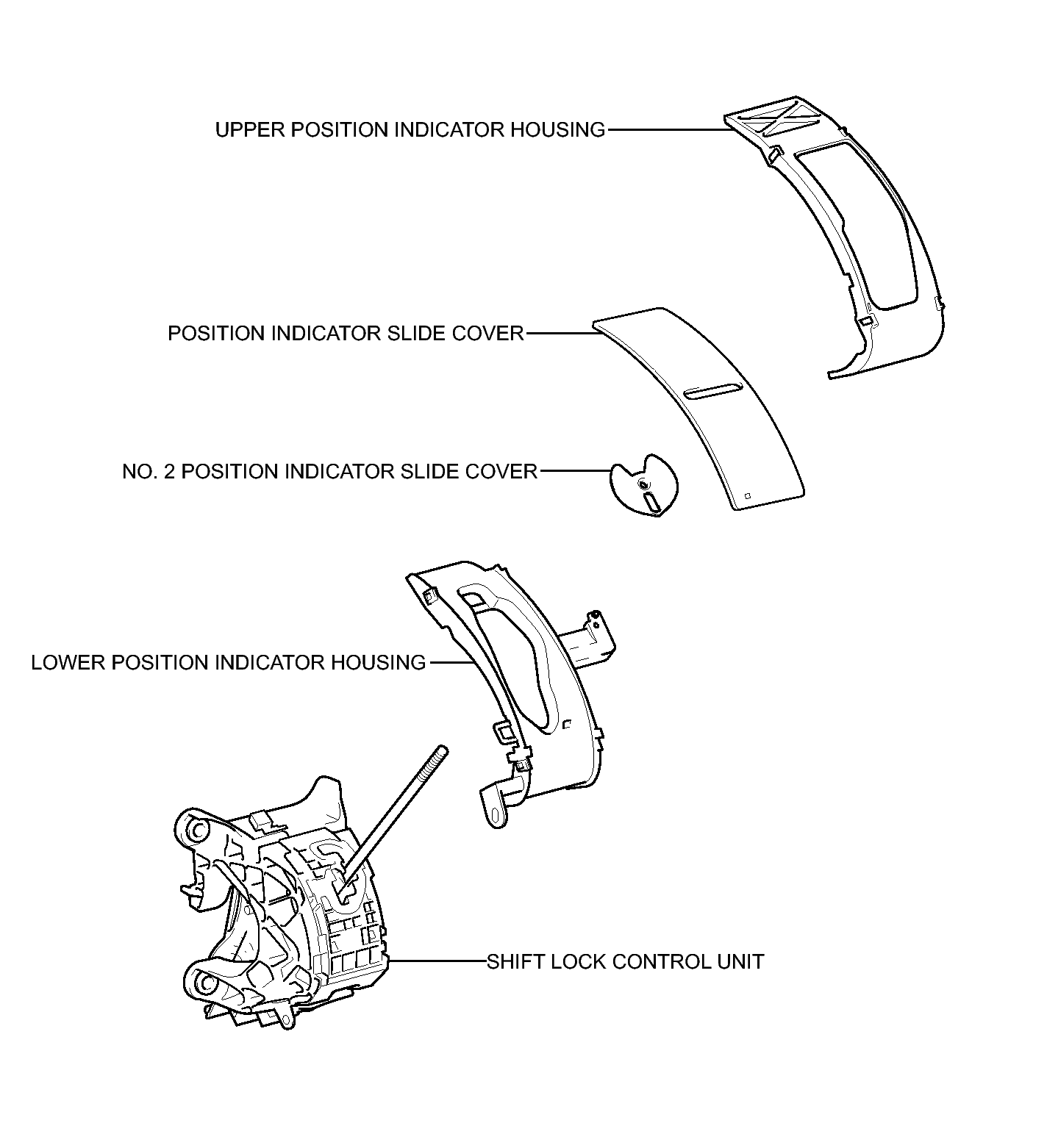

Fig 1: Identifying Shift Lever Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

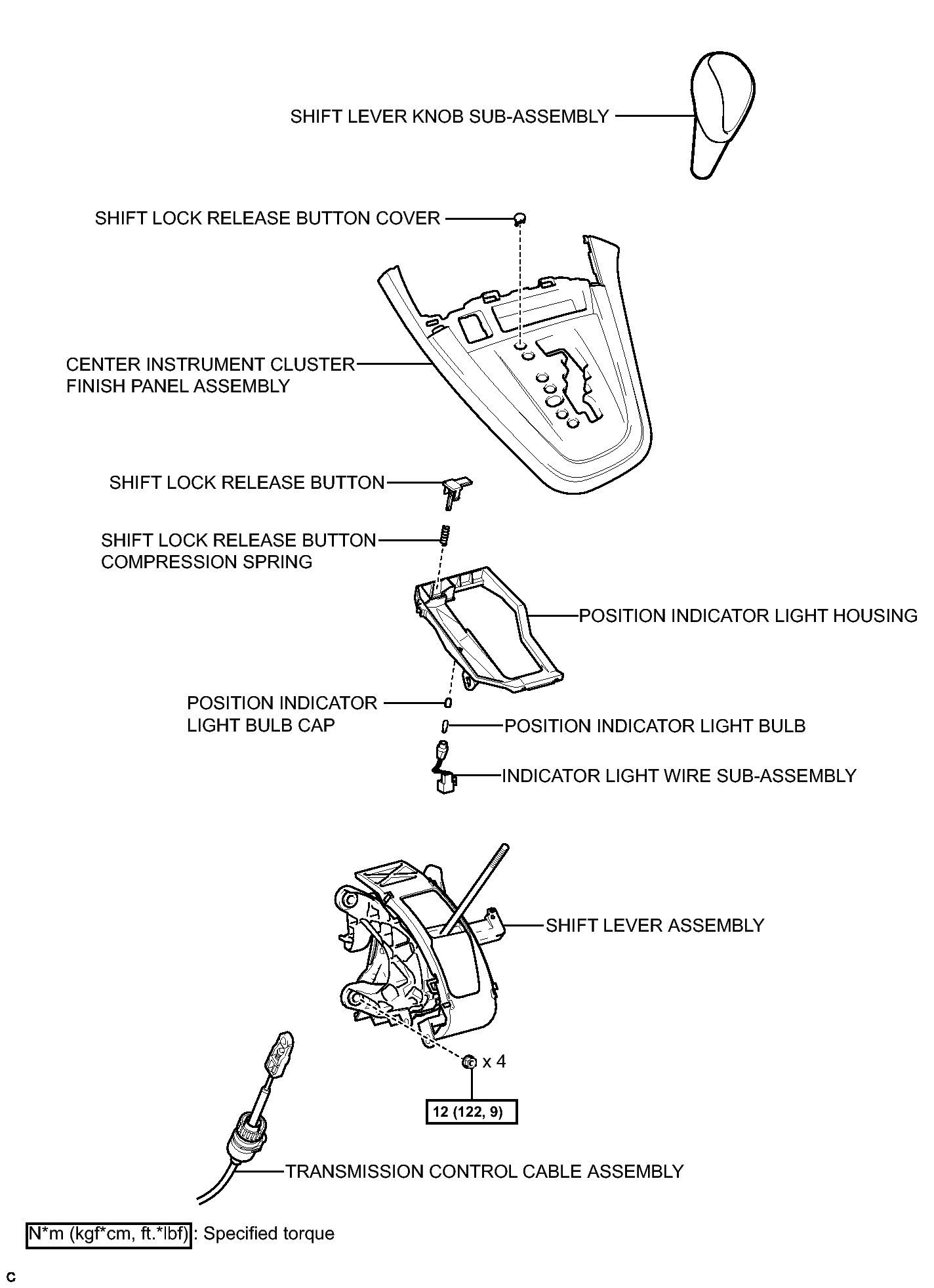

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

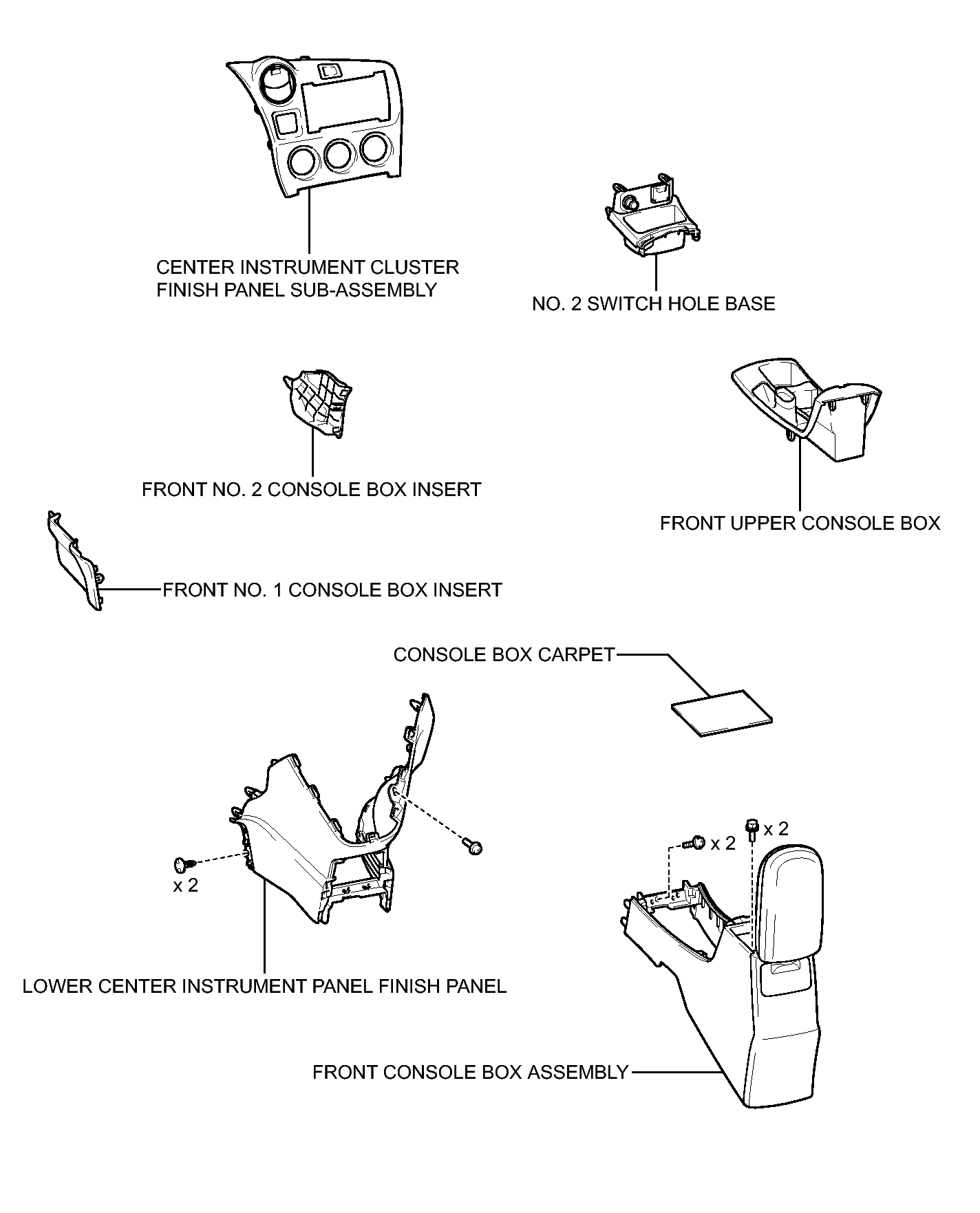

Fig 1: Identifying Shift Lever Replacement Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
